3D printing has revolutionized manufacturing and prototyping, enabling the creation of complex geometries and customized objects. However, the process is not without its challenges. One significant issue that can lead to failed prints is improper filament tension. To mitigate this, filament tension sensors have emerged as a critical technology in enhancing the reliability of 3D printing. This article explores how these sensors work, their benefits, and their role in preventing printing failures.
Filament tension refers to the force exerted on the filament as it is fed into the 3D printer's extruder. Maintaining optimal tension is crucial because:
- Too much tension can cause the filament to be crushed or "chewed" by the extruder gears, leading to inconsistent extrusion and print defects.
- Too little tension may result in under-extrusion or filament jams, where the filament fails to feed into the hot end properly.
Filament tension sensors are devices designed to monitor and regulate the tension of the filament during the printing process. They provide real-time feedback to the printer's control system, allowing for adjustments that ensure consistent filament flow.
1. Load Cells: These sensors measure the force applied to the filament and convert it into an electrical signal. This data can be used to adjust extruder settings dynamically.
2. Optical Sensors: These detect changes in filament position or movement, providing information about whether the filament is being fed correctly.

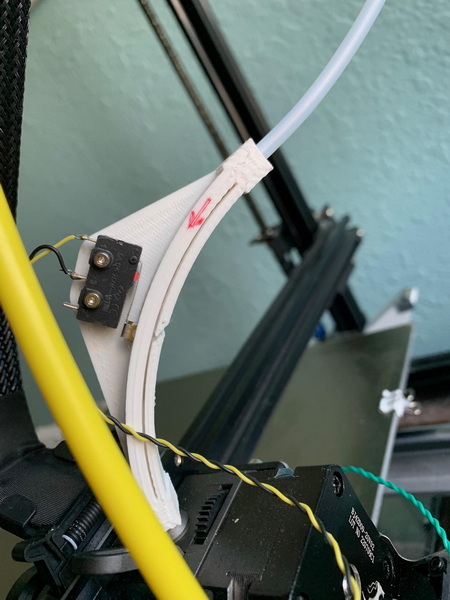

3. Mechanical Sensors: These involve physical components that respond to changes in tension, often triggering alerts when tension falls outside acceptable ranges.
Filament tension sensors are typically integrated into the printer's extruder assembly. Here's a breakdown of their operation:
1. Monitoring: As the filament is pulled through the extruder, the sensor continuously measures its tension.
2. Data Processing: The sensor sends real-time data to the printer's control system.
3. Adjustment: If the sensor detects abnormal tension levels, it can trigger adjustments in extruder pressure or pause the print to prevent failure.
Implementing filament tension sensors offers several advantages:
- Prevention of Print Failures: By monitoring tension, these sensors can prevent issues before they escalate into failed prints.
- Reduced Manual Intervention: Automated adjustments reduce the need for operators to constantly monitor print jobs.
- Improved Print Quality: Consistent filament flow leads to higher quality prints with fewer defects.
- Increased Efficiency: By minimizing downtime caused by printing errors, these sensors contribute to a more efficient workflow in both industrial and hobbyist settings.
In industrial applications, maintaining continuous operation is vital. A major manufacturer integrated load cell-based filament runout sensors into their printers. This setup allowed them to automatically pause printing when filament was low or jammed, significantly reducing downtime and waste.
A hobbyist using a Delta 3D printer equipped with a filament detection sensor reported fewer print failures after installation. The sensor alerted him when filament ran out or jammed, allowing him to intervene before a complete failure occurred.
Integrating these sensors requires careful planning:
1. Selection of Sensor Type: Choose between load cells, optical sensors, or mechanical options based on your specific needs.
2. Calibration: Proper calibration is essential for accurate readings and effective adjustments.
3. Testing: Conduct thorough testing to ensure that the sensor responds appropriately under various conditions.
To install a filament tension sensor:
1. Gather Necessary Tools: You will need basic tools such as screwdrivers and possibly soldering equipment if modifications are necessary.
2. Mounting Location: Identify an appropriate location on your printer where the sensor can effectively monitor filament tension without obstructing other components.
3. Wiring and Connectivity: Connect the sensor to your printer's control board according to manufacturer instructions.
4. Firmware Update: Ensure that your printer's firmware supports the new sensor; you may need to update it accordingly.
While filament tension sensors offer numerous benefits, there are challenges associated with their implementation:
- Cost: High-quality sensors can be expensive, which may deter some users.
- Complexity: Integrating these systems into existing printers may require technical expertise.
- Maintenance: Regular maintenance is necessary to ensure continued accuracy and reliability.
- Calibration Needs: Frequent calibration may be needed based on different filaments or environmental conditions affecting performance.
The future of filament tension sensing looks promising with advancements in technology:
- Smart Sensors: Integration with IoT devices for remote monitoring and control allows users to track filament status from anywhere.
- AI Algorithms: Utilizing machine learning for predictive maintenance and automated adjustments based on historical data can enhance performance further.
- Miniaturization: Developing smaller sensors that can be easily integrated into compact printer designs will make them more accessible for various applications.
Emerging technologies such as wireless communication protocols could allow for seamless integration of filament tension sensors with cloud-based monitoring systems. This would enable users to receive alerts on their mobile devices regarding print status and potential issues.
To maximize the effectiveness of filament tension sensors:
1. Choose Quality Components: Invest in high-quality sensors that are known for accuracy and reliability.
2. Regularly Monitor Performance: Keep an eye on sensor readings during prints and adjust settings as necessary.
3. Document Calibration Procedures: Maintain a log of calibration dates and settings used for different filaments.
4. Stay Updated on Firmware Changes: Regularly check for firmware updates that may improve sensor performance or compatibility.
Filament tension sensors play a crucial role in enhancing the reliability of 3D printing processes by preventing failures due to improper filament handling. As technology advances, these sensors will become increasingly sophisticated, offering even greater benefits in terms of print quality and operational efficiency.
By understanding how these sensors work and implementing best practices in their use, both industrial manufacturers and hobbyists can significantly reduce print failures, save time and resources, and ultimately produce higher-quality products.
A filament tension sensor monitors the force exerted on a 3D printer's filament during printing to ensure proper feeding and prevent jams.
Installation involves selecting an appropriate sensor type, calibrating it according to your printer's specifications, and integrating it with your printer's control system.
Most modern FDM printers can accommodate filament tension sensors; however, compatibility may vary based on design and firmware.
Improper filament tension can lead to print defects such as under-extrusion, over-extrusion, or complete print failures due to jams.
Calibration frequency depends on usage; however, it is advisable to check calibration regularly or whenever you change filaments or settings.
