Miniature load cells are compact, precision instruments designed to measure force or weight in various applications, particularly where space is limited. They are widely used in tension measurement systems, which are essential in industries ranging from manufacturing to aerospace. This article explores the working principles of miniature load cells, their types, applications, advantages, and challenges, along with visual aids to enhance understanding.
Miniature load cells operate on the principle of converting mechanical force into an electrical signal. This transformation is crucial for measuring tension accurately. The core component of a miniature load cell is the strain gauge, which deforms under applied force, leading to a change in electrical resistance. This change is detected and converted into a measurable output signal.
- Sensing Element: Typically made from high-grade materials like aluminum or stainless steel, this element deforms slightly when force is applied.

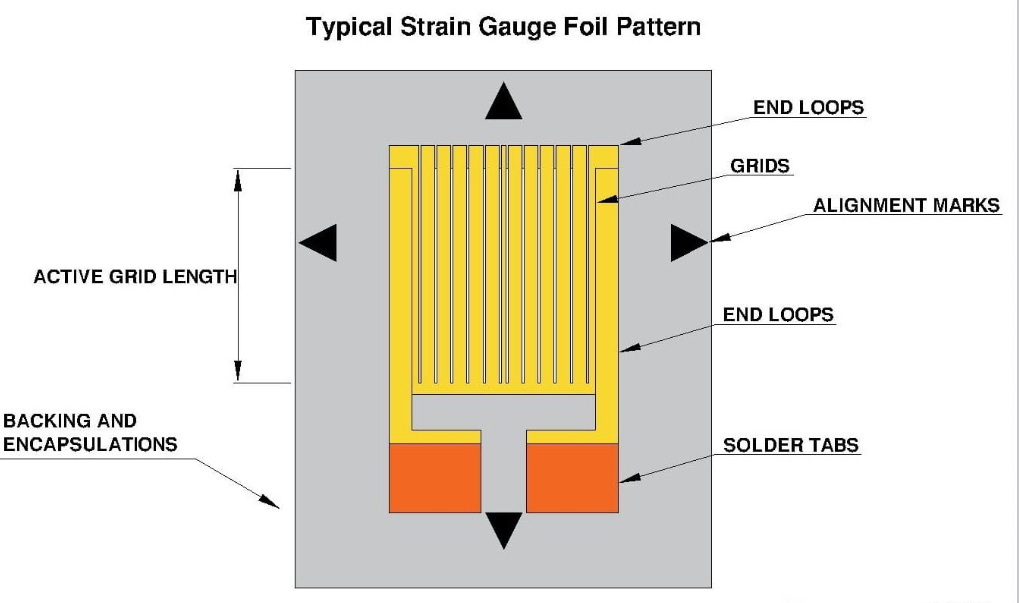

- Strain Gauges: These are thin conductive filaments bonded to the sensing element. They change their electrical resistance when deformed.
- Wheatstone Bridge Circuit: This configuration connects multiple strain gauges to enhance sensitivity and accuracy by measuring voltage changes due to resistance variations.
When a tensile force is applied to a miniature load cell, it stretches the sensing element. The deformation alters the dimensions of the attached strain gauges, resulting in changes in their electrical resistance. The Wheatstone bridge circuit detects these changes and converts them into a voltage signal proportional to the applied force.
1. Application of Force: When a weight or force is applied, the sensing element bends or stretches.
2. Deformation Detection: The strain gauges deform along with the sensing element. For instance, when stretched, their resistance increases; when compressed, it decreases.
3. Signal Conversion: The change in resistance is translated into a voltage output via the Wheatstone bridge circuit. This output can then be amplified and processed into readable units (e.g., Newtons or kilograms).
There are several types of miniature load cells specifically designed for tension measurement:
- S-Type Load Cells: Commonly used for hanging scales; they can measure both tension and compression forces effectively due to their unique shape.

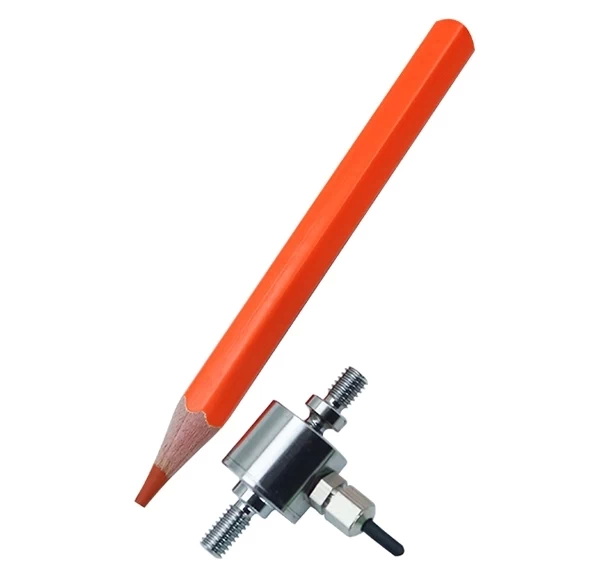

- Tension Link Load Cells: Specifically designed for inline tension measurements, ideal for applications involving cables and ropes.
- Miniature Compression Load Cells: These are compact designs suitable for limited spaces but still provide accurate tension measurements.
- Bending Beam Load Cells: Often used in industrial applications where large forces are measured; they can also be adapted for tension measurements.
Miniature load cells find extensive applications across various fields due to their versatility and compactness:
- Medical Devices: Used in devices like infusion pumps and surgical instruments where precise force measurement is critical.
- Aerospace Testing: Employed in testing components under tensile loads to ensure safety and performance standards.
- Robotics: Integrated into robotic systems for force feedback during operation.
- Material Testing: Utilized in laboratories for tensile strength testing of materials like metals and plastics.
In addition to these primary applications, miniature load cells are also used in:
- Automotive Testing: Measuring forces during crash tests and component fatigue testing ensures vehicles meet safety standards and perform optimally under various conditions.
- Consumer Electronics: In devices such as smartphones and tablets for pressure-sensitive touchscreens and haptic feedback systems.
- Industrial Automation: Monitoring forces during manufacturing processes, ensuring quality control through real-time feedback mechanisms.
The use of miniature load cells offers several advantages:
- High Precision: They deliver exceptional accuracy, making them ideal for applications requiring precise measurements.
- Compact Size: Their small dimensions allow them to fit into tight spaces without compromising performance.
- Versatility: They can be used in various configurations and applications across multiple industries.
- Seamless Integration: Available in multiple configurations and output options, they easily integrate into existing systems.
While miniature load cells have numerous benefits, they also face challenges:
- Sensitivity to Environmental Factors: Changes in temperature or humidity can affect their accuracy if not properly compensated.
- Installation Complexity: Proper alignment during installation is crucial for accurate measurements; misalignment can lead to erroneous readings.
- Cost Considerations: High-quality miniature load cells may come at a higher price point compared to larger models, which could be a consideration for budget-sensitive projects.
As technology advances, miniature load cells continue to evolve:
- Digital Integration: New models feature embedded electronics that convert analog signals directly into digital outputs, enhancing ease of use and data processing capabilities.
- Wireless Technology: Wireless load cell solutions are becoming more common, allowing for remote monitoring and data collection without physical connections.
- Increased Sensitivity and Range: Ongoing research aims to improve sensitivity and expand the range of measurable forces while maintaining compact designs.
Our mini load cells are engineered to provide exceptionally high precision in load measurement. With an applied load range starting from as low as 10 µN, these sensors can detect minute forces that are often critical in studying micro-scale materials. This high sensitivity is particularly beneficial for research in nanotechnology and microfabrication, where accurate force measurement is paramount[2][3].
Miniature load cells play a vital role in tension measurement systems across various industries. Their ability to convert mechanical forces into precise electrical signals makes them indispensable tools for ensuring safety and performance standards. As technology progresses, we can expect further advancements that will enhance their capabilities and applications even more. With increasing demands for smaller devices that maintain high accuracy, miniature load cells will continue to be at the forefront of innovation across multiple sectors[4][5].
A miniature load cell is a compact sensor that measures force or weight by converting mechanical stress into an electrical signal. They are especially useful in applications with space constraints[6].
Miniature load cells work by using strain gauges that deform under applied force. This deformation changes the electrical resistance of the gauges, which is then converted into a measurable voltage signal through a Wheatstone bridge circuit[7].
Common applications include medical devices, aerospace testing, robotics, material testing, automotive testing, consumer electronics, and industrial automation[8].
They provide high precision measurements, compact size for tight spaces, versatility across various applications, and seamless integration into existing systems[9].
Yes, challenges include sensitivity to environmental factors like temperature changes, installation complexity requiring proper alignment, and potential higher costs compared to larger models[10].
