Tension load cells are crucial instruments in various industries, designed to measure tensile forces with high precision. They convert mechanical force into an electrical signal, allowing for accurate monitoring and control of loads. This article delves into the workings of tension load cells, their applications, benefits, and the technology behind them.
A tension load cell is a type of force sensor that measures pulling or tensile forces applied to it. Unlike compression load cells, which measure forces pushing down on them, tension load cells are specifically designed to measure forces that pull or stretch a material. These devices are widely used in applications ranging from industrial weighing systems to structural testing.

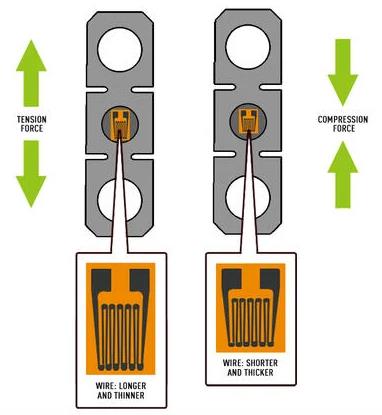

The fundamental principle behind tension load cells involves the use of strain gauges. Here's a breakdown of how they operate:
1. Strain Gauges: Tension load cells typically contain strain gauges arranged in a Wheatstone bridge configuration. When a tensile force is applied, the load cell deforms slightly, causing the strain gauges to stretch.
2. Change in Resistance: As the strain gauges stretch, their electrical resistance changes. This change in resistance is proportional to the amount of force applied to the load cell.
3. Signal Conversion: The change in resistance alters the voltage output from the strain gauges. This voltage change is then processed by internal electronics to produce a readable signal that corresponds to the applied force.
4. Output Measurement: The output can be displayed digitally on a meter or transmitted to a computer system for further analysis and monitoring.
Tension load cells come in various forms, each suited for specific applications:
- S-Type Load Cells: Shaped like an "S," these load cells can measure both tension and compression forces and are commonly used for suspended loads.
- Tension Links: These are used in overhead crane systems and can handle high capacities while providing accurate measurements.
- Canister Load Cells: These cylindrical devices can be designed for either tension or compression measurements and are often used in industrial applications.
- Pancake Load Cells: These low-profile devices are ideal for applications with limited space and can measure high loads accurately.
Tension load cells have numerous applications across various industries:
- Crane and Hoist Weighing: Used to monitor loads lifted by cranes, ensuring safety and preventing overloads.
- Material Testing: Employed in laboratories to test the tensile strength of materials by measuring how much force they can withstand before breaking.
- Cable Tension Monitoring: Used in construction and engineering projects to ensure cables are maintained at safe tension levels.
- Weighing Systems: Integrated into scales for weighing suspended loads, such as hanging scales used in retail or industrial settings.
- Wind Turbine Monitoring: Tension load cells help monitor the tension in cables supporting wind turbines, ensuring stability and safety during operation.
- Textile Industry: In textile manufacturing, they monitor the tension of yarns during production processes like weaving and knitting, ensuring quality control.
The advantages of using tension load cells include:
- High Accuracy: They provide precise measurements of tensile forces, making them suitable for critical applications where accuracy is paramount.
- Versatility: Many tension load cells can measure both tension and compression forces, increasing their usability across different scenarios.
- Durability: Built to withstand harsh environments, tension load cells can operate effectively under varying conditions without significant wear.
- Ease of Installation: Most tension load cells come with user-friendly designs that allow for quick installation and integration into existing systems.
- Real-Time Monitoring: Many modern tension load cells offer real-time data transmission capabilities, allowing operators to monitor loads continuously and make adjustments as necessary.
When selecting a tension load cell, several design considerations must be taken into account:
1. Load Capacity: The maximum weight or force that the load cell can accurately measure without damage is critical for ensuring safety and reliability.
2. Material Selection: The materials used in constructing the load cell affect its durability and performance under different environmental conditions. Stainless steel is commonly used due to its resistance to corrosion.
3. Environmental Protection: Depending on the application, it may be necessary to select a load cell with environmental sealing (IP rating) to protect against dust and moisture ingress.
4. Calibration Requirements: Regular calibration ensures that the load cell maintains its accuracy over time. Understanding the calibration process is essential for long-term reliability.
5. Mounting Configuration: The design must accommodate specific mounting requirements based on how the load will be applied (e.g., inline or suspended).
Recent advancements in technology have significantly improved the performance and functionality of tension load cells:
- Digital Signal Processing (DSP): Modern tension load cells often incorporate DSP technology, enhancing signal accuracy and reducing noise interference during measurements.
- Wireless Communication: Many new models feature wireless capabilities, allowing data transmission without physical connections, which simplifies installation and reduces clutter.
- Smart Sensors: Integration with IoT (Internet of Things) technologies enables remote monitoring and data analysis, providing insights into operational efficiency and potential issues before they become critical.
- Miniaturization: Advances in engineering have led to smaller yet highly accurate tension load cells suitable for applications with space constraints while maintaining performance standards.
Tension load cells play an essential role in modern industrial applications by providing accurate measurements of tensile forces. Understanding their operation—through strain gauges and signal processing—highlights their importance in ensuring safety and efficiency across various sectors. As technology advances, these devices continue to evolve, offering even greater accuracy and reliability for future applications.
A tension load cell is a type of sensor that measures pulling forces applied to it by converting mechanical force into an electrical signal.
It works by using strain gauges that change resistance when stretched under tensile force. This change is converted into an electrical signal proportional to the applied force.
Common applications include crane weighing systems, material testing labs, cable tension monitoring in construction, and various industrial weighing systems.
Types include S-type load cells, tension links, canister load cells, and pancake load cells, each suited for specific measurement needs.
Benefits include high accuracy, versatility (ability to measure both tension and compression), durability under harsh conditions, ease of installation, and real-time monitoring capabilities.
