Load cells are essential devices used in various applications to measure weight or force. They convert mechanical force into an electrical signal, allowing for precise measurements. Understanding how to calculate load using a load cell equation is crucial for engineers, technicians, and anyone involved in weighing systems. This article will guide you through the process of calculating load using load cell equations, providing examples, diagrams, and videos to enhance your understanding.

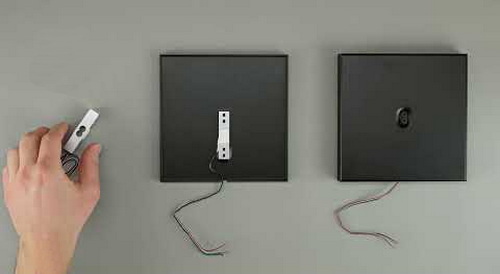

A load cell is a type of transducer that converts a force or weight into an electrical signal. The most common type of load cell is the strain gauge load cell, which uses the principle of strain gauges arranged in a Wheatstone bridge configuration. When a load is applied, the strain gauges deform, causing a change in resistance that can be measured as a voltage output.
- Strain Gauge Load Cells: These are the most widely used due to their accuracy and reliability. They operate on the principle of resistance change in strain gauges.
- Hydraulic Load Cells: These use fluid pressure to measure force and are often used in heavy-duty applications.
- Pneumatic Load Cells: These operate based on air pressure and are suitable for environments requiring intrinsic safety.
The fundamental equation for calculating force from a load cell is:
F=S×V
Where:
- F = Force (N or lbf)
- S = Sensitivity (mV/V)
- V = Output voltage from the load cell (mV)
Suppose you have a load cell with a sensitivity of 2 mV/V and an output voltage of 4 mV when a known load is applied. The force can be calculated as follows:
F=2mV V×4mV=8N
Sensitivity is defined as the output voltage per unit of applied force. It is crucial for converting the electrical signal back into a meaningful measurement of force or weight.
1. Consult the Load Cell Datasheet: Manufacturers provide sensitivity values in mV/V.
2. Calibration: Apply known weights and measure the corresponding output voltages to determine sensitivity.
Calibrating a load cell ensures accurate readings. The calibration process involves:
1. Zero Calibration: Measure the output when no load is applied to establish a baseline.
2. Known Load Calibration: Apply a known weight and record the output voltage.
3. Calculate Sensitivity: Use the formula S=F/V.
Several factors can influence the accuracy of load cell measurements:
- Temperature Variations: Changes in temperature can affect resistance and output.
- Mechanical Stress: Off-axis loads can introduce errors.
- Electrical Noise: Interference from other electronic devices can distort readings.
For more precise applications, especially when dealing with nonlinearities, polynomial equations may be used:
Response=A0+A1×F+A2×F⊃2;+A3×F⊃3;
Where A0,A1,A2,A3 are coefficients determined during calibration.
Conversely, if you want to find the force given an output response:
F=B0+B1×Response+B2×Response⊃2;+B3×Response⊃3;
These equations allow for more accurate calculations by accounting for non-linear behavior in load cells.
Load cells are used in various industries including:
- Manufacturing: For quality control and material handling.
- Retail: In weighing scales for selling goods.
- Aerospace: For testing materials under stress.
To further enhance your understanding of load cells and their operation, consider watching these informative videos:
- Understanding Load Cells
Calculating load using a load cell equation involves understanding both the basic principles and advanced methods applicable to specific scenarios. By following the steps outlined above—determining sensitivity, calibrating your system, and applying the appropriate equations—you can achieve accurate measurements in various applications.
As technology advances, understanding these concepts becomes increasingly important for ensuring precision in measurement systems.
A load cell measures weight or force by converting mechanical energy into an electrical signal.
Calibrate by measuring output at zero load and applying known weights while recording their corresponding outputs.
Temperature changes, mechanical stress from off-axis loads, and electrical noise can all impact accuracy.
Yes, but ensure they are calibrated correctly to maintain measurement consistency across different types.
Sensitivity refers to how much output voltage (in mV) corresponds to each unit of applied force (in N or lbf).
