Tension load cells are specialized devices designed to measure the pulling force or tension applied to them. They play a crucial role in various industries, including construction, manufacturing, aerospace, and automotive, by providing accurate and reliable measurements of tensile forces. This article will explore the principles behind tension load cells, their applications, benefits, and how they function.

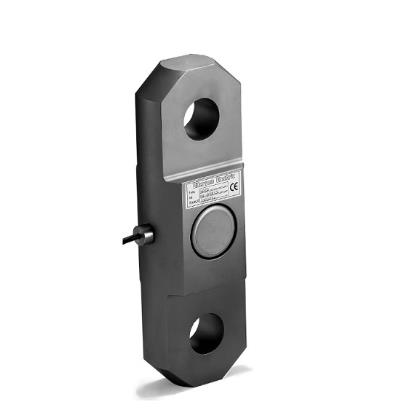

Tension load cells are a type of force sensor that converts mechanical tension into an electrical signal. They are typically made from materials like steel or aluminum and consist of a body that houses strain gauges. These gauges detect the deformation caused by the applied force, allowing for accurate measurement of tension.

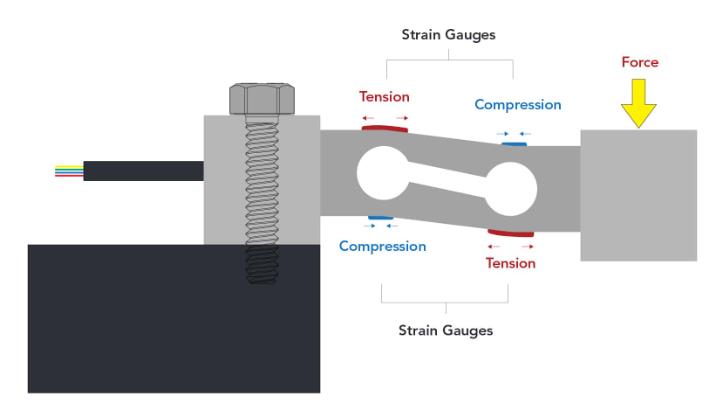

The operation of a tension load cell is based on the principle of strain gauges. When a tensile force is applied to the load cell, it stretches slightly. This deformation changes the electrical resistance of the strain gauges attached to the load cell. The relationship between the change in resistance and the applied force is linear, enabling precise calculations of tension.
1. Mechanical Deformation: When a load is applied, the load cell deforms.
2. Strain Gauge Response: The strain gauges detect this deformation and change their resistance.
3. Signal Conversion: The change in resistance is converted into an electrical signal that can be measured digitally.
There are several types of tension load cells, each suited for specific applications:

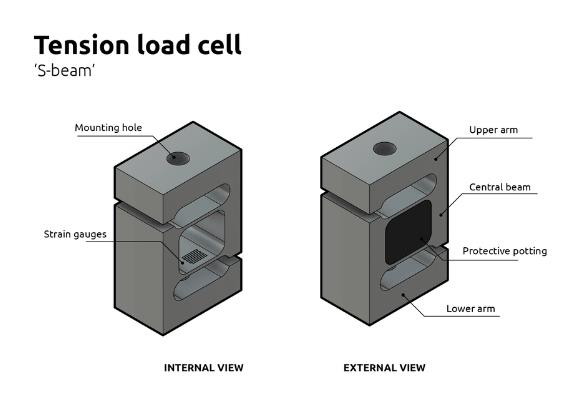

- S-Type Load Cells: These are shaped like an "S" and can measure both tension and compression forces. They are commonly used in various industrial applications due to their versatility.
- Tension Links: Designed specifically for measuring tensile loads in applications such as crane scales and rigging.
- Canister Load Cells: These are robust and often used in harsh environments where reliability is critical.
- Pancake Load Cells: Flat in design, these load cells are ideal for applications requiring low-profile measurements.
Tension load cells have a wide range of applications across various industries:
- Construction: Used to measure the tension in cables and supports during structural testing. For instance, they can monitor cable-stayed bridges or suspension bridges to ensure that structural integrity is maintained under varying loads.
- Manufacturing: Employed in roll-to-roll manufacturing processes to ensure consistent tension in materials like paper or film. This is crucial for preventing defects during production.
- Aerospace: Critical for testing components under tensile loads to ensure safety and performance standards are met. Aerospace engineers use these load cells to evaluate the strength of materials used in aircraft construction.
- Automotive: Used in testing systems for measuring tensile strength in materials used in vehicle manufacturing. This ensures that components can withstand operational stresses without failure.
- Marine Applications: In marine environments, tension load cells are used to monitor mooring lines and anchor chains, ensuring that vessels remain securely anchored against wind and wave forces.
The advantages of using tension load cells include:
- Accuracy: They provide precise measurements of tensile forces without being affected by compressive or bending forces. This accuracy is vital for applications where safety is paramount.
- Reliability: Designed for durability, they can withstand harsh environmental conditions such as extreme temperatures, humidity, and corrosive substances.
- Versatility: Suitable for various applications across multiple industries. Their adaptability allows them to be integrated into different systems seamlessly.
- Low Maintenance: Generally require minimal upkeep due to their robust construction. Many modern load cells are designed with self-checking features that alert users to potential issues before they become significant problems.
Proper installation and calibration are essential for ensuring accurate measurements from tension load cells:
1. Installation: Ensure that the load cell is mounted correctly within its intended application. Misalignment can lead to inaccurate readings. It's important to follow manufacturer guidelines during installation to ensure optimal performance.
2. Calibration: Regular calibration is necessary to maintain accuracy. This involves applying known weights to the load cell and adjusting its output accordingly. Calibration should be performed periodically or whenever there is a significant change in environmental conditions or after maintenance work has been completed.
1. Zeroing the Load Cell: Before applying any weight, ensure that the load cell reads zero when no force is applied.
2. Applying Known Weights: Gradually apply known weights (preferably at least three different weights) and record the output readings from the load cell.
3. Creating a Calibration Curve: Plot these readings on a graph to create a calibration curve which shows the relationship between applied weight and output signal.
4. Adjusting Settings: If necessary, adjust the settings on your measurement system based on this curve to ensure accurate readings across all expected loads.
While tension load cells offer numerous benefits, there are challenges to consider:
- Temperature Effects: Variations in temperature can affect measurements; thus, temperature compensation features are often included in advanced models. Some high-end models come with built-in temperature sensors that automatically adjust readings based on ambient conditions.
- Environmental Conditions: Exposure to moisture or corrosive substances can damage load cells unless they are specifically designed for such conditions (e.g., hermetically sealed). It's crucial to select a load cell rated for your specific environmental conditions.
- Mechanical Stress Concentration: Improper mounting or excessive side loads can lead to stress concentration points that may skew results or damage the sensor over time.
As technology advances, so too do tension load cells. Recent innovations include:
- Wireless Load Cells: These eliminate the need for cumbersome wiring setups, allowing for easier installation and mobility within dynamic environments such as construction sites or manufacturing floors.
- Smart Load Cells: Equipped with integrated sensors that provide real-time data analytics about performance metrics such as temperature fluctuations or overload conditions.
- Enhanced Materials: The use of advanced materials such as carbon fiber composites can lead to lighter yet stronger designs that improve sensitivity while reducing overall weight.
Tension load cells are vital instruments for measuring tensile forces across various industries. Their ability to provide accurate and reliable data makes them essential for ensuring safety and performance standards. As technology advances, these devices continue to evolve, offering improved features and capabilities that meet the demands of modern applications.
A tension load cell is a type of force sensor that measures the pulling force applied to it and converts this mechanical force into an electrical signal for digital measurement.
Tension load cells are widely used in construction, manufacturing, aerospace, automotive, marine applications, and many other sectors requiring precise measurement of tensile forces.
Calibration involves applying known weights to the load cell while adjusting its output until it matches expected values. Regular calibration ensures ongoing accuracy and reliability in measurements.
Factors such as temperature fluctuations, environmental conditions (humidity, corrosion), misalignment during installation, mechanical stress concentrations, and improper calibration can all affect accuracy.
Some types of tension load cells, like S-Type load cells, can measure both tensile (pulling) and compressive (pushing) forces effectively due to their design flexibility.
