Load cells are vital components in various industries, serving as the backbone for accurate force measurement. Among the different types of load cells, tension load cells play a crucial role in measuring tensile forces. This article delves into the intricacies of tension load cells, exploring their functionality, applications, advantages, and more.
A load cell is a transducer that converts a mechanical force into an electrical signal. This conversion is essential for measuring weight or force in industrial, scientific, and commercial settings. Load cells can measure various types of forces, including compression, tension, bending, and shear.
1. Strain Gauges: These are thin wire-like devices bonded to the load cell structure. When a force is applied, they deform, leading to a change in electrical resistance.
2. Electrical Signal Processing: The changes in resistance are converted into an electrical signal that can be measured and displayed.
3. Housing: The outer casing protects the internal components from environmental factors.
Tension load cells specifically measure tensile forces—forces that pull or stretch the load cell. They are commonly used in applications where the measurement of pulling forces is critical.

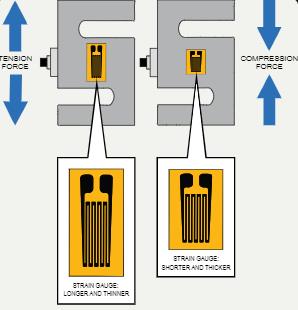

When a tensile force is applied to a tension load cell, it undergoes deformation. This deformation affects the strain gauges attached to it:
- Deformation: The load cell stretches or elongates under tension.
- Resistance Change: As the strain gauges deform, their electrical resistance changes.
- Signal Generation: This change generates an electrical signal proportional to the amount of force applied.
Tension load cells come in various designs suited for different applications:
- S-Type Load Cells: These are shaped like an "S" and are ideal for suspended applications.
- Z-Type Load Cells: Similar to S-type but designed for different mounting configurations.
- Miniature Load Cells: Compact designs for limited spaces.
- Shear Beam Load Cells: Often used in applications requiring high accuracy and reliability.
Tension load cells are versatile and find use in numerous applications across various industries:
1. Crane and Hoist Weighing: Used to prevent overloads by measuring the weight being lifted.
2. Hanging Scales: Commonly found in retail and industrial environments for weighing items.
3. Tensile Strength Testing: Employed in laboratories to determine the strength of materials under tension.
4. Mooring Strength Measurement: Essential for measuring forces in marine applications.
5. Cable Force Measurement: Used in construction and engineering to monitor cable tensions.
6. Automotive Testing: In automotive engineering, tension load cells are used to test the strength of components under stress during crash tests or performance evaluations.
7. Aerospace Applications: In aerospace engineering, they help measure loads on aircraft components during testing phases.
Tension load cells offer several benefits:
- High Accuracy: They provide precise measurements of tensile forces with minimal error margins.
- Reliability: Designed to withstand harsh environments and heavy usage without failure.
- Easy Calibration: Can be easily calibrated for specific applications to ensure consistent performance.
- Minimal Maintenance: Require little upkeep due to their robust design, which reduces operational costs.
Selecting the right tension load cell involves considering several factors:
1. Load Capacity: Ensure the load cell can handle the expected maximum force without exceeding its limits.
2. Environmental Conditions: Consider factors like temperature extremes, humidity levels, and exposure to chemicals that could affect performance.
3. Mounting Requirements: Determine how the load cell will be installed (inline or suspended) based on your specific application needs.
4. Signal Output Needs: Decide on the type of electrical signal required (analog or digital) for your application and compatibility with existing systems.
5. Calibration Standards: Ensure that the load cell complies with relevant industry standards for calibration and accuracy.
Proper installation is crucial for ensuring accurate measurements with tension load cells:
1. Alignment: Ensure that the load cell is aligned correctly with the direction of the force being measured to avoid measurement errors.
2. Mounting Hardware: Use appropriate mounting hardware that can handle the expected loads without introducing additional stress on the load cell itself.
3. Environmental Protection: If necessary, install protective enclosures or covers to shield the load cell from dust, moisture, or other environmental factors that could affect its performance.
Calibration is essential for maintaining accuracy over time:
1. Initial Calibration: Perform an initial calibration before using the tension load cell in any application to establish baseline measurements.
2. Regular Checks: Schedule regular calibration checks based on usage frequency and environmental conditions to ensure continued accuracy.
3. Documentation: Keep detailed records of all calibration activities for compliance with industry standards and regulations.
Despite their reliability, tension load cells may encounter issues over time:
1. Drift in Readings: If readings begin to drift over time, it may indicate a need for recalibration or that environmental factors are affecting performance.
2. Mechanical Damage: Inspect for any signs of physical damage or wear that could compromise accuracy or functionality.
3. Electrical Issues: Check connections and wiring for any signs of wear or damage that could lead to inaccurate readings.
As technology advances, so do tension load cells:
1. Wireless Technology: Increasingly, tension load cells are being integrated with wireless technology for remote monitoring and data collection.
2. Smart Sensors: The integration of IoT (Internet of Things) capabilities allows for real-time data analysis and predictive maintenance scheduling.
3. Enhanced Materials: The use of advanced materials improves durability and performance under extreme conditions.
Tension load cells are essential tools in accurately measuring tensile forces across various industries. Their ability to convert mechanical forces into electrical signals makes them invaluable for applications ranging from industrial weighing systems to scientific research. By understanding their functionality and selecting the appropriate type for specific needs, businesses can enhance their operational efficiency and safety.
A tension load cell is a device designed to measure tensile forces by converting mechanical stress into an electrical signal.
They work by using strain gauges that deform under tensile stress, causing a change in electrical resistance which generates a proportional voltage signal.
Common applications include crane weighing, hanging scales, tensile strength testing, mooring strength measurement, cable force measurement, automotive testing, and aerospace applications.
They provide high accuracy, reliability, easy calibration, and minimal maintenance requirements.
Consider factors like load capacity, environmental conditions, mounting requirements, signal output needs, and calibration standards when selecting a tension load cell.
