Tension load cells are essential devices used to measure tensile forces in various applications, including construction, manufacturing, and research. These sensors convert mechanical force into an electrical signal, allowing for precise measurements of the tension exerted on materials or structures. This article will explore the fundamentals of tension load cells, their applications, installation procedures, and calibration methods.
A tension load cell is a type of force sensor designed specifically to measure tensile forces—forces that pull or stretch an object. Unlike compression load cells, which measure forces pushing down on an object, tension load cells are calibrated to gauge forces applied in a pulling direction. They are widely used in various industries for applications such as weighing suspended loads, monitoring cable tensions, and ensuring structural integrity.

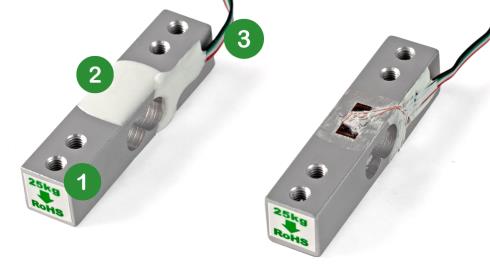

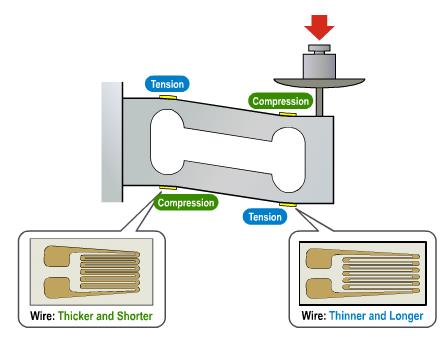

Tension load cells typically utilize strain gauges bonded to a structural element. When a tensile force is applied, the element deforms slightly, causing changes in resistance within the strain gauges. This change is converted into an electrical signal that can be measured and interpreted as a force value. The most common configurations for tension load cells include:
- S-Type Load Cells: Shaped like an "S," these load cells can measure both tension and compression.
- Tension Links: Used primarily for lifting applications.
- Bar Load Cells: Often used in industrial settings where larger forces need to be measured.
Tension load cells are versatile and find applications across various fields:
- Construction: Monitoring the tension in cables used for structural support.
- Manufacturing: Measuring the tension in wires and cables during production processes.
- Aerospace: Testing the tensile strength of materials used in aircraft components.
- Maritime: Ensuring the safety and reliability of mooring lines and towing cables.
- Research: Evaluating the mechanical properties of new materials under tensile stress.
Setting up a tension load cell requires careful consideration of its mounting and wiring. Follow these steps for proper installation:
Before starting your installation, ensure you have all the necessary tools and equipment:
- Tension load cell
- Mounting hardware (screws, washers)
- Wires for electrical connections
- A compatible data acquisition system or microcontroller (e.g., Arduino)
The mounting process may vary based on the type of tension load cell being used:

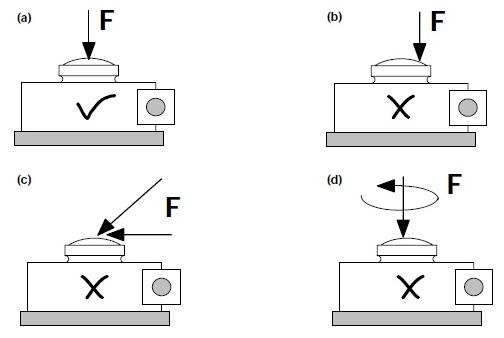

- S-Type Load Cells: Mount these using the threaded holes at both ends. Ensure that they are aligned correctly to avoid introducing bending moments that could affect accuracy.
- Tension Links: Attach them directly to the lifting apparatus or structure being tested.
- Bar Load Cells: These should be mounted between two plates in a "Z" configuration to accurately measure tensile forces without introducing torque.
Ensure that all connections are secure and that there is no play in the assembly.
Connect the load cell to your data acquisition system or microcontroller:
- Identify the output wires from the load cell (typically color-coded).
- Connect these wires to the appropriate terminals on your amplifier or microcontroller according to the manufacturer's specifications.
For example, if you're using an HX711 amplifier with an Arduino, follow this basic wiring setup:
Load Cell HX711 Amplifier
Red Wire ---> E+
Black Wire ---> E-
White Wire ---> A+
Green Wire ---> A-
Make sure to double-check connections before powering up your system.
Calibration is crucial for ensuring accurate measurements from your tension load cell. Here's how to calibrate it effectively:
Before applying any known weights, zero out your load cell reading. This step ensures that any residual forces do not affect your measurements.
Gradually apply known weights to the load cell while recording the output readings from your data acquisition system. It's essential to use weights that span the expected range of operation for accurate calibration.
For example:
| Weight Applied (kg) | Output Reading (mV/V) |
|---|---|
| 0 | 0 |
| 10 | 1.0 |
| 20 | 2.0 |
| 30 | 3.0 |
Plot the known weights against their corresponding output readings to create a calibration curve. This curve can then be used to interpret future measurements accurately.
While working with tension load cells, you may encounter some common issues:
- Inconsistent Readings: Ensure all connections are secure and check for any mechanical play in your setup.
- Drifting Readings: This could indicate temperature fluctuations or electrical noise; consider shielding your wiring or recalibrating under stable conditions.
Tension load cells are indispensable tools for accurately measuring tensile forces across various industries. Understanding their operation, setup, and calibration processes is crucial for obtaining reliable measurements. By following best practices during installation and regularly calibrating your equipment, you can ensure precise readings that contribute to safety and performance in engineering applications.
A tension load cell measures tensile forces—forces that pull or stretch an object—by converting mechanical deformation into an electrical signal.
To install a tension load cell, mount it securely using appropriate hardware, connect it to a data acquisition system following wiring guidelines, and ensure there is no mechanical play in the assembly.
Tension load cells are used in construction, manufacturing, aerospace testing, maritime operations, and research to monitor tensile forces in various materials and structures.
Calibrate by zeroing out any residual readings, applying known weights while recording output readings, and creating a calibration curve based on these measurements.
Check all connections for security and inspect for any mechanical play in your setup; recalibrate if necessary under stable conditions.
