Installing a tension type load cell is a critical process that requires careful planning and execution to ensure accurate measurements and system reliability. This guide will walk you through the installation process, considerations for using low profile load cells, and best practices to follow.

Understanding Tension Load Cells

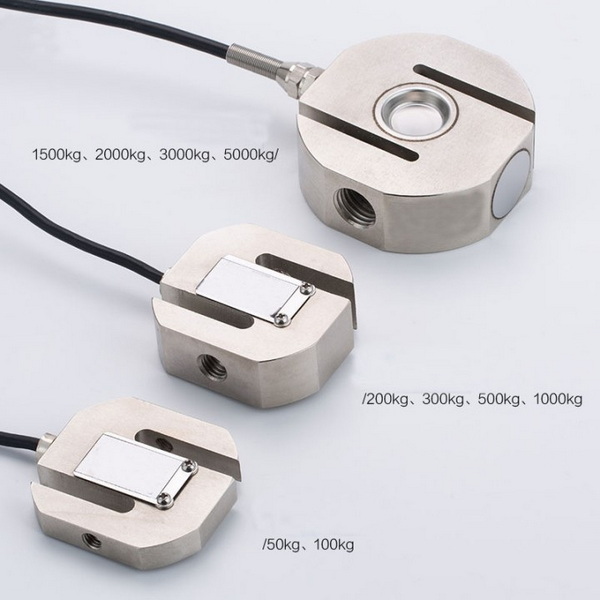

Tension load cells are devices designed to measure the tensile force applied to them. They convert mechanical stress into an electrical signal, which can then be measured and recorded. These load cells are commonly used in various applications including industrial weighing, material testing, and automation systems.

Key Features of Tension Load Cells

- High Accuracy: Tension load cells provide precise measurements with minimal errors.

- Versatile Applications: They can be used in diverse fields such as construction, aerospace, and manufacturing.

- Durable Design: Many tension load cells are built to withstand harsh environmental conditions.

Tools and Materials Needed

Before beginning the installation process, gather the following tools and materials:

- Tension load cell (e.g., low profile load cell)

- Mounting hardware (bolts, nuts, washers)

- Electrical wiring

- Multimeter for testing connections

- Calibration weights

- Leveling tools (e.g., spirit level)

- Torque wrench

Installation Steps

Step 1: Prepare the Installation Site

- Clean the Surface: Ensure that the mounting surface is clean and free from debris or contaminants that could affect accuracy.

- Check Levelness: Use a spirit level to confirm that the mounting surface is flat. Any misalignment can lead to inaccurate readings.

Step 2: Mount the Load Cell

1. Position the Load Cell: Place the tension load cell on the prepared surface. Ensure it is aligned with the load path to prevent any side or bending forces during operation.

2. Secure with Mounting Hardware: Use appropriate bolts and nuts to secure the load cell in place. Ensure that all hardware is tightened to the manufacturer's specifications using a torque wrench.

3. Use Spacers if Necessary: If there are height differences between multiple load cells in a system, use spacers to ensure they are on the same horizontal plane.

Step 3: Connect Electrical Wiring

1. Identify Wiring Terminals: Typically, tension load cells have four wires: red (excitation+), black (excitation-), green (signal+), and white (signal-).

2. Make Connections: Connect these wires to your measurement system or data acquisition device according to the manufacturer's wiring diagram.

3. Test Connections: Use a multimeter to check that all connections are secure and functioning correctly.

Step 4: Calibration

1. Apply Known Weights: Start with a known weight within the load cell's rated capacity.

2. Record Output Signals: Measure and record the output signal from the load cell using your measurement system.

3. Create Calibration Curve: Repeat this process with different known weights, plotting the results to create a calibration curve.

4. Adjust Measurement System: Based on your calibration curve, adjust your measurement system settings for accurate readings.

Best Practices for Installation

To ensure optimal performance of your tension load cell, follow these best practices:

- Avoid Overloading: Ensure that the applied loads do not exceed the rated capacity of the load cell.

- Protect from Environmental Factors: If used outdoors or in harsh conditions, consider protective enclosures to shield against moisture, dust, and extreme temperatures.

- Regular Maintenance: Periodically check connections and recalibrate as necessary to maintain accuracy over time.

Conclusion

Installing a tension type load cell requires attention to detail and adherence to best practices for optimal performance. By following this guide, you can ensure accurate measurements in your system while maximizing the lifespan of your equipment.

FAQ

1. What is a low profile load cell?

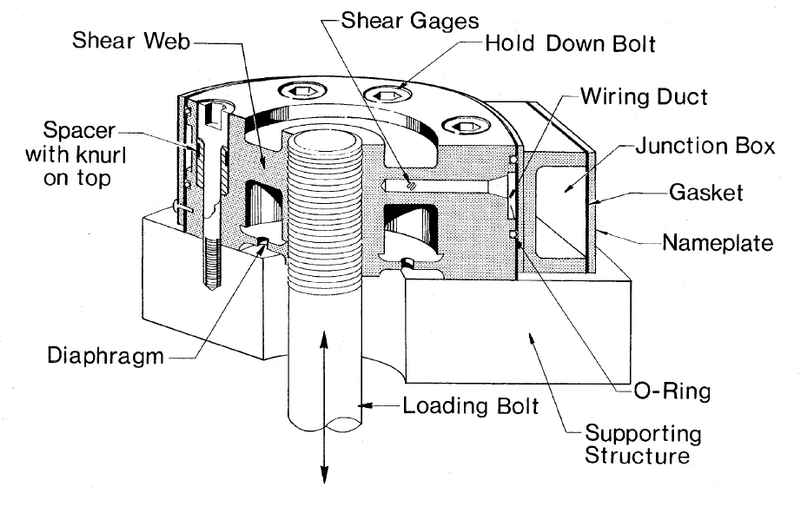

A low profile load cell is a compact type of transducer designed for high accuracy in limited spaces. Its design allows it to fit easily into tight areas without sacrificing performance.

2. How do I install a low profile load cell?

Installation involves securing it to a stable surface using bolts while ensuring proper alignment with the loading axis for accurate measurements.

3. What are common applications for standard load cells?

Standard load cells are widely used in industrial weighing systems, construction projects, and any application requiring robust force measurement capabilities.

4. Can low profile load cells measure both tension and compression?

Yes, many low profile load cells are designed to effectively measure both tension and compression forces due to their versatile design.

5. How do I calibrate a low profile load cell?

Calibration can be performed by applying known weights and adjusting the output signal until it matches expected values based on those weights.
