Calibrating a tension load cell is crucial for ensuring accurate measurements in various applications, including manufacturing, construction, and research. This article will provide a comprehensive guide on how to properly calibrate a tension load cell, covering the necessary tools, procedures, and best practices.

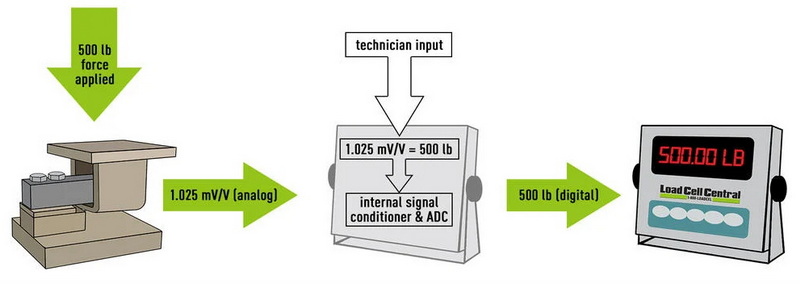

Tension load cells are devices that measure the force exerted on them in a pulling direction. They operate based on the principle of strain gauges, which change their electrical resistance when deformed. This change is measured and converted into a weight reading. Regular calibration is essential to maintain accuracy and reliability, as load cells can drift over time due to environmental factors or mechanical wear.
Before starting the calibration process, ensure you have the following tools:
- Calibration Weights: Known weights used to apply force to the load cell.
- Digital Multimeter: For measuring electrical output from the load cell.
- Calibration Software: If applicable, to assist in recording and analyzing data.
- Load Cell Indicator: To display the output readings.
- Stable Mounting Setup: To securely hold the load cell during calibration.

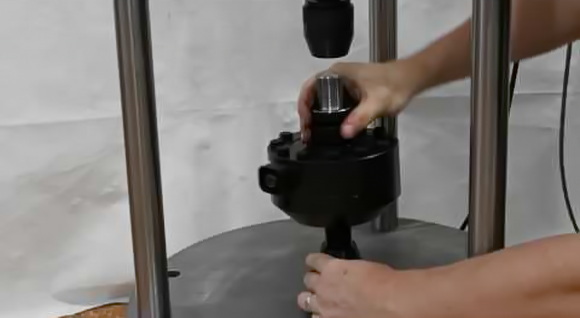

Ensure that the load cell is clean and free from any debris. Check all connections and ensure that the load cell is properly mounted in its intended position.
Before applying any weights, zero the load cell using the indicator. This step accounts for any residual load that may affect accuracy.
Gradually apply known weights to the load cell:
- Start with the lowest weight and increase incrementally.
- Record the output readings for each weight applied.
Plot the recorded output against the known weights to create a calibration curve. This curve helps identify discrepancies in the load cell's readings.
If discrepancies are found between expected and actual readings:
- Make adjustments as necessary according to manufacturer specifications.
- This may involve recalibrating internal settings or adjusting output parameters.
After adjustments, repeat the calibration process to ensure accuracy:
- Confirm that the load cell provides consistent readings across the entire range of weights.
Regular calibration helps correct for drift caused by various factors such as:
- Environmental changes (temperature, humidity)
- Mechanical impacts (wear and tear)
Calibration should be performed based on usage frequency and operating conditions but is generally recommended at least once a year.

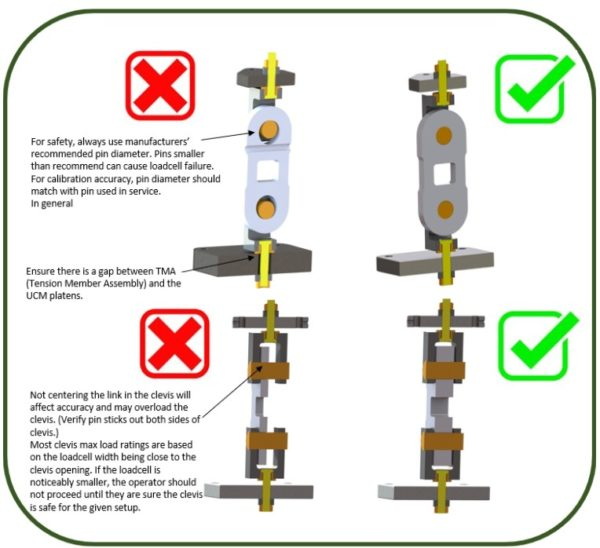

- Use appropriate adapters: Ensure that you are using proper tension adapters during calibration to minimize errors due to misalignment or eccentric forces.
- Follow manufacturer guidelines: Adhere strictly to manufacturer instructions for calibration procedures specific to your load cell model.
- Document results: Keep detailed records of calibration results for future reference and compliance with industry standards.
Calibrating a tension load cell is an essential practice that ensures accurate measurements in various applications. By following the outlined procedures and understanding the importance of calibration, you can maintain measurement integrity and enhance system performance.
A tension load cell is a device designed to measure force in a pulling direction. It operates based on strain gauges that convert mechanical energy into electrical signals.
Regular calibration ensures that measurements remain accurate over time, correcting for drift caused by environmental factors or mechanical wear.
It is generally recommended to calibrate at least once a year or more frequently depending on usage and environmental conditions.
Yes, with proper tools and knowledge, you can calibrate your tension load cell; however, for critical applications, it may be best to consult a professional.
You will need calibration weights, a digital multimeter, a load cell indicator, possibly calibration software, and a stable mounting setup.
