Load cells are essential devices in various industries for measuring weight and force. They convert mechanical force into an electrical signal, allowing for precise measurements of tension, compression, and other forces. This article will delve into how load cells specifically measure the tension in steel plates, exploring their working principles, types, applications, and installation techniques.
A load cell is a transducer that converts a force acting on it into an electrical signal. The most common type of load cell used for measuring tension is the strain gauge load cell. These devices utilize the principle of strain gauges bonded to a flexible metal body. When a load is applied, the body deforms slightly, causing a change in resistance in the strain gauges. This change is then converted into an electrical signal that can be measured and interpreted.

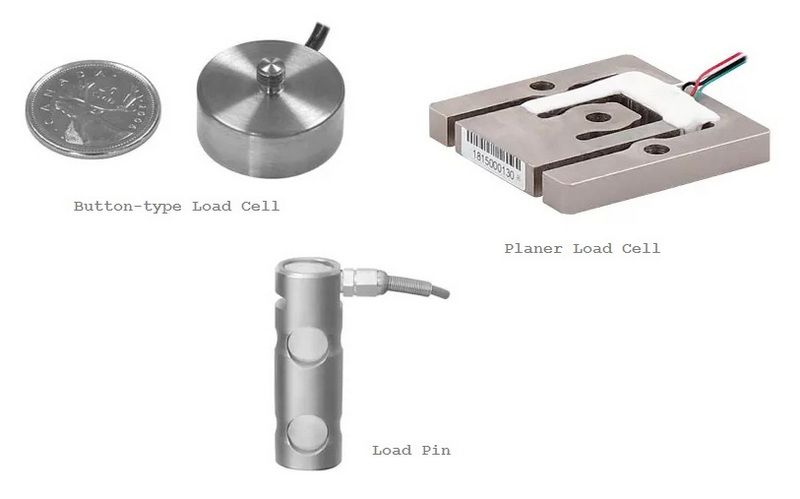

Load cells can be classified based on their application and design:
- Tension Load Cells: Specifically designed to measure tensile forces. They are often used in applications such as crane scales and material testing.
- Compression Load Cells: Used to measure compressive forces. They are commonly found in weighing scales and industrial applications.
- Dual-Function Load Cells: Capable of measuring both tension and compression forces.
| Type | Measurement Direction | Common Applications |
|---|---|---|
| Tension Load Cell | Pulling | Crane scales, tensile testing |
| Compression Load Cell | Pushing | Weighing scales, industrial use |
| Dual-Function | Pulling/Pushing | Versatile applications |
The operation of a load cell involves several key components:

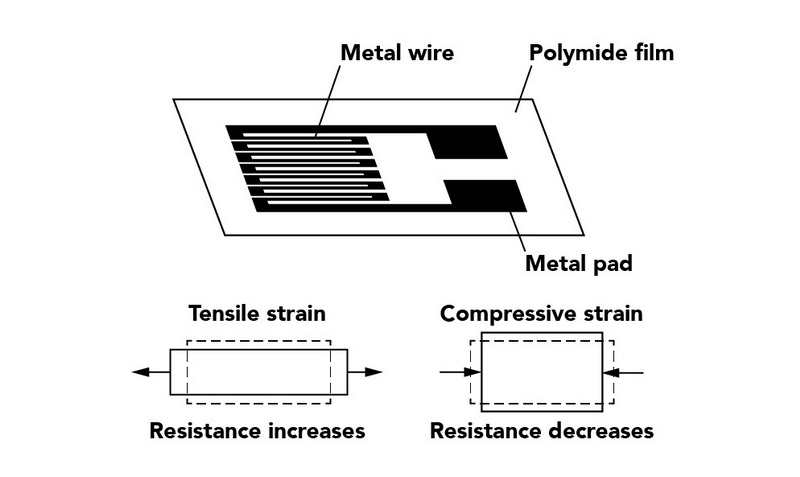

1. Strain Gauges: These are thin strips of conductive material that change resistance when stretched or compressed. In a load cell, they are typically arranged in a Wheatstone bridge configuration to enhance sensitivity and accuracy.
2. Metal Body: The load cell's body is made from materials like aluminum or stainless steel, which provide structural integrity while allowing slight deformation under load.
3. Electrical Signal Processing: The change in resistance from the strain gauges is converted into an electrical signal using a microcontroller or signal conditioning circuit.
When tension is applied to a steel plate connected to a load cell:
- The load cell's metal body deforms slightly due to the applied force.
- This deformation causes the strain gauges to stretch or compress, altering their resistance.
- The Wheatstone bridge circuit measures this change in resistance and converts it into a voltage output proportional to the applied force.
To measure tension specifically in steel plates, load cells are often integrated into testing setups where the steel plate is subjected to tensile forces. Here's how this process typically works:
1. Setup: The steel plate is fixed at one end while the other end is attached to the load cell.
2. Application of Force: A tensile force is applied (e.g., pulling on the free end of the plate).
3. Data Acquisition: As the force increases, the load cell measures the resulting tension through its deformation and outputs an electrical signal.
4. Analysis: The electrical signal is processed to provide real-time data on the tension experienced by the steel plate.
Tension load cells have widespread applications across various fields:
- Material Testing: Used to determine the tensile strength of materials by measuring how much force they can withstand before failure.
- Crane Scales: Essential for weighing heavy loads during lifting operations.
- Structural Monitoring: Employed in civil engineering to monitor forces in structures like bridges and buildings.
- Manufacturing Processes: In production lines, tension load cells help ensure that materials are subjected to appropriate forces during assembly or fabrication processes.
- Aerospace Testing: In aerospace applications, tension load cells measure forces acting on components during stress tests to ensure safety and reliability.
Proper installation of load cells is crucial for accurate measurements:
- Alignment: Ensure that loads are applied along the correct axis to prevent bending moments that can lead to inaccuracies.
- Mounting Surface: Use flat, rigid surfaces for mounting load cells to ensure even load distribution.
- Environmental Protection: Depending on the application, consider using weatherproof or corrosion-resistant models for outdoor or harsh environments.
Calibration is vital for ensuring accuracy in measurements:
1. Initial Calibration: Before use, load cells should be calibrated using known weights or forces to establish a baseline reading.
2. Regular Checks: Periodic recalibration may be necessary due to wear over time or changes in environmental conditions affecting performance.
3. Use of Calibration Equipment: Employ certified calibration weights and equipment designed for precision measurement during this process.
Several factors can influence the accuracy of measurements taken by load cells:
- Temperature Variations: Changes in temperature can affect material properties and lead to measurement drift; thus, temperature compensation features are often integrated into advanced load cells.
- Mechanical Interference: External vibrations or shocks can impact readings; therefore, isolating the load cell from such disturbances can enhance accuracy.
- Hysteresis and Linearity Errors: These errors occur when there's a difference between measured values during loading versus unloading phases; regular calibration helps mitigate these issues.
Recent advancements have led to improved designs and functionalities of load cells:
- Wireless Load Cells: These eliminate cabling issues by transmitting data wirelessly, making them ideal for remote monitoring applications.
- Smart Load Cells: Equipped with IoT capabilities, these devices offer real-time data analytics and remote access features for enhanced monitoring and control.
- Miniaturization: Advances in materials science have led to smaller yet highly sensitive load cells suitable for compact applications without sacrificing performance.
Load cells play a vital role in measuring tension in steel plates across various industries. By converting mechanical forces into measurable electrical signals, they provide critical data for material testing, structural monitoring, and many other applications. Understanding their operation and proper installation techniques can significantly enhance measurement accuracy and reliability. As technology continues to evolve, so too will the capabilities of load cells, allowing for even more precise measurements across diverse fields.
A load cell is a sensor that converts mechanical force (tension or compression) into an electrical signal that can be measured and standardized.
Tension load cells work by using strain gauges that change resistance when stretched under an applied tensile force, converting this change into an electrical signal.
Common applications include material testing, crane scales for lifting heavy loads, and monitoring structural integrity in engineering projects.
Ensure proper alignment along the intended measurement axis, use flat mounting surfaces, and protect against environmental factors as needed.
Factors include alignment errors (bending moments), environmental conditions (temperature changes), and proper calibration procedures.
