In the ever-evolving landscape of manufacturing, precision is paramount. The ability to control and monitor processes with utmost accuracy directly impacts product quality, efficiency, and overall profitability. Among the various technologies contributing to enhanced precision, micro tension sensors have emerged as indispensable tools. These compact yet powerful devices play a crucial role in ensuring that materials are handled with the right amount of force, preventing breakages, reducing waste, and optimizing production workflows[3][7]. This article delves into the intricacies of micro tension sensors, exploring their working principles, applications, benefits, and future trends.
Tension sensors, also known as tension transducers or load cells, are instruments designed to measure the force or tension applied to an object or material[3]. These sensors provide invaluable insights into the mechanical dynamics of various systems, whether monitoring the tension in a conveyor belt, a surgical suture, or an aircraft cable[3].
At their core, tension sensors use strain gauges, which are small electrical devices that change resistance when stretched or compressed[7]. These gauges are mounted on a metal element inside the sensor. When the material under measurement applies tension, the metal element deforms slightly, causing the strain gauges to alter their electrical resistance[7]. This change is then converted into an electrical signal, which corresponds to the amount of tension being applied[7].

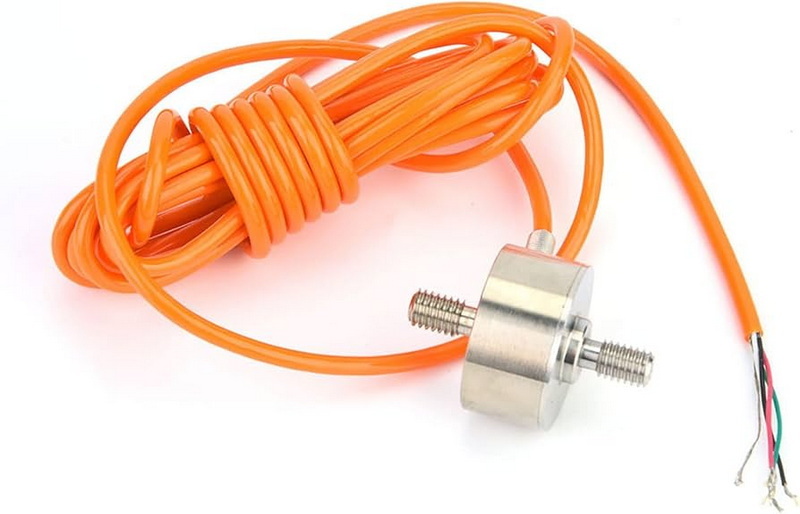

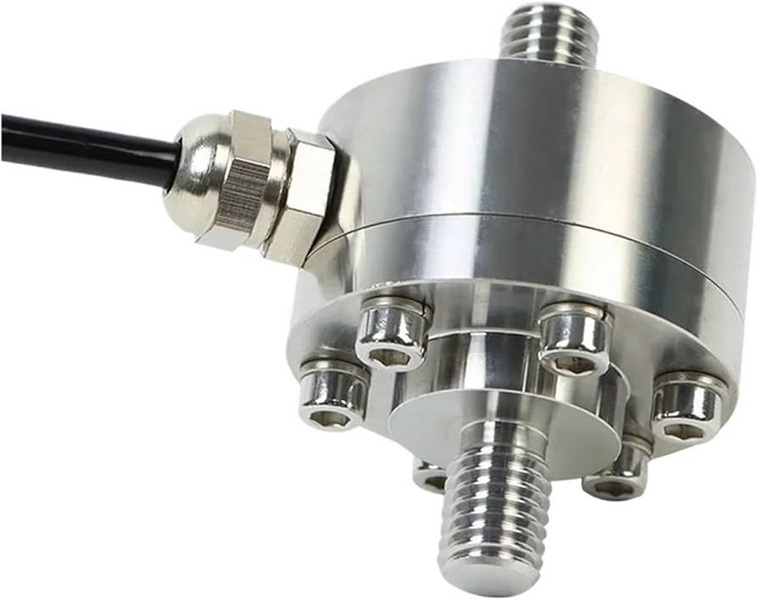

Micro tension sensors, also known as miniature load cells or micro force sensors, are compact devices designed for precise force or weight measurements in confined spaces[9]. These sensors are employed across various industries where accuracy is essential[4].
- Compact Size: Micro tension sensors are designed to fit into small spaces without compromising accuracy[4].
- High Sensitivity: These sensors can detect even the slightest changes in tension, providing real-time feedback for process control[7].
- Durability: Constructed from robust materials like stainless steel, micro tension sensors can withstand harsh industrial environments[9].
- Versatility: Micro tension sensors can be customized for various applications, including medical devices, robotics, and aerospace[9].
- Improved Precision: Micro tension sensors ensure materials are handled with the correct force, reducing the risk of damage or breakage[7].
- Enhanced Efficiency: By providing real-time data, these sensors enable better control and optimization of manufacturing processes[6].
- Reduced Waste: Accurate tension control minimizes material waste, leading to cost savings and environmental benefits[6].
- Increased Safety: Monitoring tension in critical applications helps prevent accidents and ensures the safety of workers and equipment[3].
Micro tension sensors are used in a wide array of manufacturing processes, including:
- Textile Industry: Ensuring even tension in yarns during winding and weaving to produce high-quality fabrics[2].
- Wire Winding: Monitoring tension in wire winding processes to prevent breaks and ensure consistent product quality[7].
- Web Tension Control: Maintaining optimal tension in web handling applications, such as printing and packaging[7].
- Robotics: Measuring forces exerted by robot end-effectors for precise control in assembly and manipulation tasks[9].
- Medical Devices: Ensuring accurate force measurements in medical instruments and drug delivery systems[9].
- Aerospace: Monitoring weight and force in small components and control surfaces of aircraft[9].
- Industrial Automation: Enhancing control and precision in automated manufacturing processes[5].
1. Yarn Tension Measurement in Textile Machines
In the textile industry, maintaining consistent yarn tension is crucial for producing high-quality fabrics. Micro tension sensors are integrated into textile machines to monitor and control the tension of individual yarns. These sensors help ensure an even tension in each yarn, preventing breaks and producing a consistent product[2].
2. Wire Winding in Electronics Manufacturing
In electronics manufacturing, wire winding is a critical process for creating components like inductors and transformers. Micro tension sensors are used to monitor the tension of the wire as it is wound onto the core. This ensures that the wire is wound tightly and evenly, resulting in a high-quality component[7].
3. Web Tension Control in Printing and Packaging
In printing and packaging, web tension control is essential for maintaining the quality of the final product. Micro tension sensors are used to monitor the tension of the web as it moves through the printing or packaging machine. This ensures that the web is aligned correctly and that the printed image or packaging is consistent[7].
4. Robotics in Assembly Lines
In robotic assembly lines, micro tension sensors are used to measure the forces exerted by robot end-effectors. This allows the robot to handle parts with the right amount of force, preventing damage or breakage. Micro tension sensors also enable robots to perform precise assembly tasks, such as inserting components into tight spaces[9].
5. Medical Devices for Drug Delivery Systems
In medical devices like drug delivery systems, micro tension sensors are used to ensure accurate force measurements. These sensors help control the amount of force applied when delivering drugs, ensuring that the correct dosage is administered[9].
Micro-Measurements Advanced Sensors strain gages offer several key advantages[1]:
- Tighter Resistance Tolerance: Ensuring more consistent and accurate measurements[1].
- Improved Gage-to-Gage Repeatability: Providing reliable and consistent performance across multiple sensors[1].
- Better Stability: Maintaining accuracy over extended periods, even in harsh conditions[1].
- Significantly Reduced Lead Times: Advanced fabrication processes reduce manufacturing lead times[1].
Micro-Measurements' Transducer Class Strain Gages with Advanced Sensors Technology are designed specifically for high-volume, OEM transducer applications[1].
Exclusive features include[1]:
- Excellent Gage-to-Gage and Grid-to-Grid Matching: Allowing for more uniform gage performance at temperature[1].
- Tighter Resistance Tolerances: Enabling simpler balance of the Wheatstone bridge circuitry[1].
- High Resistance Patterns: Offered in Linear, Shear, T-Patterns, and Full-Bridge configurations, with up to 20Khom resistance values[1].
- Gold Plated Solder Tabs and Epoxy Encapsulation: Providing active grid protection as standard features[1].
Advancements in microfabrication techniques have led to the development of miniaturized tension sensors with reduced size and weight[3]. These sensors can be integrated into compact devices, wearable technology, and microsystems for applications in healthcare, robotics, and consumer electronics[3]. Modern tension sensors can measure tension in multiple axes simultaneously, providing comprehensive data for complex applications such as robotic arms, suspension bridges, and aerospace components[3].
Advanced signal processing algorithms have been developed to enhance the accuracy and reliability of tension measurements[3]. These algorithms compensate for environmental factors, nonlinearities, and dynamic changes in tension, resulting in more robust and stable performance[3]. Machine learning and AI techniques are being applied to analyze sensor data, identify patterns, and predict tension variations, enabling proactive maintenance and optimization strategies[3]. Micro tension sensors are increasingly integrated with IoT and Industry 4.0 technologies, allowing for real-time monitoring, data analysis, and remote control of manufacturing processes[3].
The field of micro tension sensors is continuously evolving, driven by the demand for greater precision, efficiency, and automation in manufacturing. Some key trends include:
- Wireless Sensors: The development of wireless micro tension sensors enables easier integration into existing systems and allows for remote monitoring[3].
- Self-Powered Sensors: Energy harvesting technologies are being used to create self-powered sensors that eliminate the need for external power sources[3].
- AI-Powered Sensors: Integrating artificial intelligence (AI) into micro tension sensors enables predictive maintenance and real-time optimization of manufacturing processes[3].
- Improved Materials: The use of advanced materials, such as nanomaterials and composites, enhances the sensitivity and durability of micro tension sensors[3].
While micro tension sensors offer numerous benefits, there are also challenges and considerations to keep in mind:
- Cost: High-precision micro tension sensors can be expensive, which may be a barrier for some manufacturers.
- Calibration: Regular calibration is necessary to ensure the accuracy of micro tension sensors.
- Integration: Integrating micro tension sensors into existing systems can be complex and may require specialized expertise.
- Environmental Factors: Temperature, humidity, and other environmental factors can affect the performance of micro tension sensors.
Micro tension sensors have revolutionized precision in manufacturing by providing accurate, real-time data on tension and force. These sensors offer numerous benefits, including improved precision, enhanced efficiency, reduced waste, and increased safety. As technology continues to advance, micro tension sensors will play an increasingly important role in optimizing manufacturing processes and ensuring the production of high-quality goods. With ongoing developments in wireless technology, AI, and advanced materials, the future of micro tension sensors looks promising, offering even greater capabilities and wider applications.
A micro tension sensor, also known as a micro load cell or micro force sensor, is a compact device designed to measure force or weight with exceptional precision. These sensors are used in applications where space is limited and high accuracy is essential[4][9].
A micro tension sensor typically uses strain gauges, which are small electrical devices that change resistance when stretched or compressed. When tension is applied, the strain gauges alter their electrical resistance, which is then converted into an electrical signal proportional to the tension[7].
Micro tension sensors are used in various industries, including medical devices, robotics, aerospace, textile manufacturing, and industrial automation. They are ideal for applications requiring precise force or weight measurements in compact spaces[9].
The advantages of using micro tension sensors include improved precision, enhanced efficiency, reduced waste, and increased safety. They ensure materials are handled with the correct force, reducing the risk of damage or breakage, and enable better control and optimization of manufacturing processes[6][7].
Future trends in micro tension sensor technology include the development of wireless sensors, self-powered sensors, AI-powered sensors, and improved materials. These advancements will lead to even greater capabilities and wider applications in manufacturing and other industries[3].
