How Often Should You Calibrate Your Tension Load Cell?

Content Menu

● Importance of Calibration

● Recommended Calibration Frequency

● Methods of Load Cell Calibration

● Best Practices for Tension Load Cell Calibration

● Conclusion

● FAQ

>> 1. What are the signs that a load cell needs calibration?

>> 2. How can I perform a basic load cell calibration at home?

>> 3. What are the consequences of not calibrating load cells regularly?

>> 4. Can load cells be calibrated without professional help?

>> 5. What types of load cells are best for specific applications?

● Citations:

Calibration of tension load cells is a critical process that ensures accurate measurements in various applications, from industrial weighing systems to laboratory experiments. This article will explore the importance of regular calibration, the recommended frequency for calibration, methods to perform it, and best practices to maintain accuracy.

Importance of Calibration

Calibration is essential for ensuring that tension load cells provide reliable and accurate measurements. Over time, factors such as wear and tear, environmental conditions, and mechanical stress can lead to drift in the load cell's output, resulting in inaccurate readings. Regular calibration helps to:

- Ensure Accuracy: Accurate measurements are vital for quality control in manufacturing and safety in various applications.

- Maintain Compliance: Many industries are subject to regulations that require regular calibration of measuring devices to ensure compliance with standards.

- Enhance Reliability: Regular calibration helps identify potential issues or drift in load cell performance, allowing for timely maintenance.

- Prevent Costly Errors: Accurate measurements can prevent costly errors in production and ensure that products meet specifications.

Recommended Calibration Frequency

The frequency of tension load cell calibration can vary based on several factors. Here are general guidelines:

- Annual Calibration: For most applications, it is recommended to calibrate tension load cells at least once a year. This interval is suitable for standard industrial applications where the load cell is used regularly but not excessively.

- Semi-Annual or Quarterly Calibration: In critical applications, such as medical devices or aerospace, more frequent calibrations may be necessary—every six months or even quarterly—to ensure safety and compliance.

- Usage Intensity: Load cells subjected to heavy loads or frequent use may require more frequent calibration. For instance, if a load cell is used continuously or under high stress, it might need calibration every few months.

- Environmental Conditions: Extreme temperatures, humidity, or exposure to corrosive substances can affect load cell performance. In such cases, more regular checks are advisable.

- Industry Standards: Compliance with industry regulations often dictates calibration intervals. Always consult relevant standards for your specific industry.

Methods of Load Cell Calibration

There are several methods used for calibrating tension load cells:

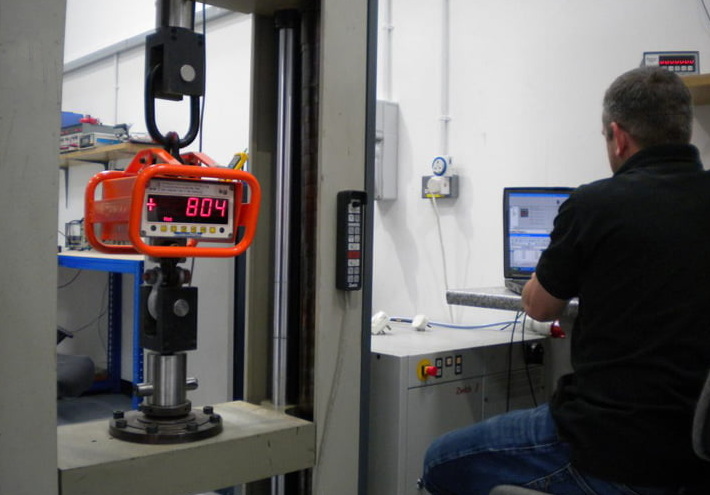

1. Deadweight Calibration:

- This method involves applying known weights to the load cell and recording the output readings.

- It is considered one of the most accurate methods as it uses certified weights.

2. Electronic Calibration:

- This method applies known electrical signals to the load cell and compares the output readings with expected responses.

- It is commonly used for industrial process control systems and automation equipment.

3. Dynamic Calibration:

- This involves applying loads dynamically (e.g., through a moving system) and measuring the response.

- It helps account for real-world conditions where loads are not static.

4. Multipoint Calibration:

- Instead of just two points (zero and full scale), this method involves taking multiple readings across the load cell's range.

- It provides a more comprehensive understanding of the load cell's performance across its entire range.

Best Practices for Tension Load Cell Calibration

To ensure accurate and reliable calibration results, follow these best practices:

- Use Certified Weights: Always use certified weights for calibration to ensure accuracy. Non-certified weights can lead to incorrect calibration.

- Document the Calibration Process: Keep detailed records of all calibration activities, including dates, results, and any adjustments made. This documentation is essential for compliance and quality assurance.

- Follow Manufacturer Guidelines: Adhere to documented calibration procedures provided by the load cell manufacturer or calibration service provider.

- Train Personnel: Ensure that personnel involved in calibration are properly trained and understand the process's importance.

- Regularly Inspect Equipment: Check all equipment used in the calibration process for wear or damage before starting.

Conclusion

In conclusion, regular calibration of tension load cells is crucial for maintaining measurement accuracy and reliability across various applications. By adhering to recommended frequencies based on usage intensity and environmental conditions, industries can ensure compliance with standards while preventing costly errors due to inaccurate measurements. Following best practices during the calibration process further enhances reliability and accuracy.

FAQ

1. What are the signs that a load cell needs calibration?

Signs include inconsistent readings, drift in measurements, or discrepancies when compared to known weights.

2. How can I perform a basic load cell calibration at home?

You can perform basic calibration using known weights and a digital multimeter by applying loads incrementally and recording outputs.

3. What are the consequences of not calibrating load cells regularly?

Failure to calibrate regularly can lead to inaccurate measurements, compliance issues with industry regulations, and potential safety hazards.

4. Can load cells be calibrated without professional help?

Yes, with proper tools and knowledge, you can calibrate a load cell yourself; however, professional assistance is recommended for critical applications.

5. What types of load cells are best for specific applications?

Strain gauge load cells are commonly used due to their accuracy; however, hydraulic or pneumatic types may be better suited for specific high-load applications.
