Calibrating a 40 kg tension load cell is a critical process that ensures the accuracy and reliability of measurements in various applications, such as weighing, force measurement, and material testing. This article outlines a comprehensive guide on how to perform this calibration effectively.

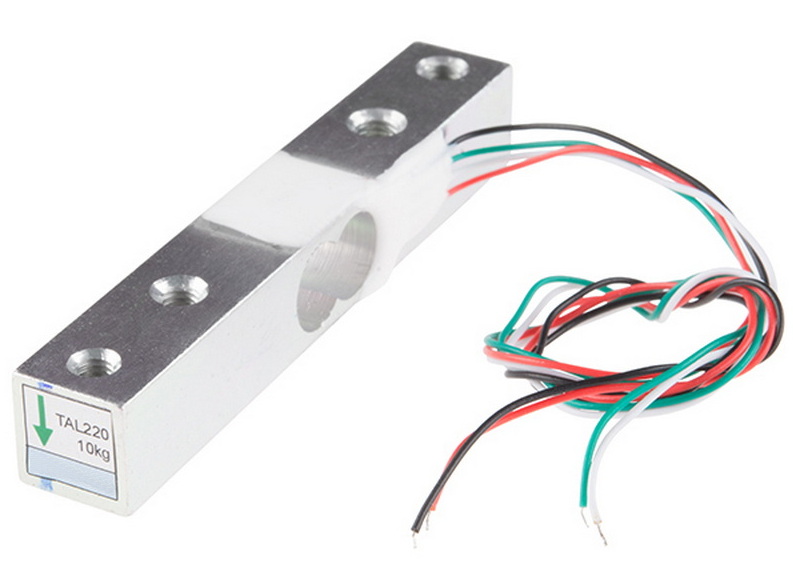

40 kg tension load cell

Understanding Tension Load Cells

A tension load cell is a type of transducer designed to measure tensile forces or loads accurately. When a force is applied, the load cell deforms slightly, and this deformation is converted into an electrical signal by strain gauges within the cell. The output signal is proportional to the applied load, allowing for precise measurements.

Importance of Calibration

Calibration is essential for ensuring that the readings provided by the load cell are accurate and reliable. Over time, factors such as environmental conditions, mechanical wear, and changes in the load cell's characteristics can lead to measurement drift. Regular calibration helps maintain accuracy, ensuring consistent and reliable measurements.

Equipment Needed for Calibration

To calibrate a 40 kg tension load cell effectively, you will need the following tools:

- Calibration weights (known weights)

- A digital multimeter

- A calibration software (if applicable)

- A load cell indicator

- Stable mounting setup

- Connecting cables

Calibration Process

Step 1: Preparation

Before starting the calibration process, ensure that:

- The load cell is clean and free from debris.

- All connections are secure.

- The load cell is properly mounted in its intended operational setup.

Step 2: Zeroing the Load Cell

Before applying any weights, it is crucial to zero the load cell. This step ensures that any residual load is accounted for.

1. Connect the load cell to the digital indicator.

2. Power on the indicator and adjust it to read zero.

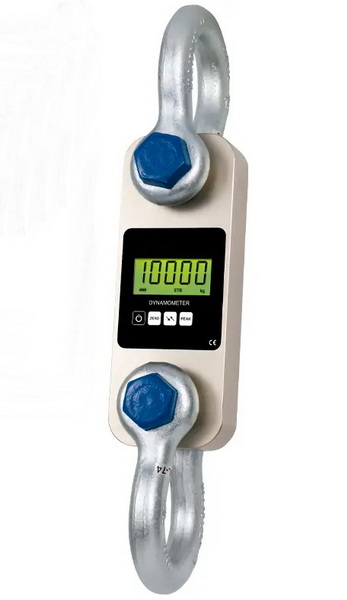

Precision Tension Sensor

Step 3: Applying Calibration Weights

Begin applying known weights incrementally. It is recommended to follow these steps:

1. Start with a small weight (e.g., 10% of capacity).

2. Gradually increase the weight in increments (20%, 40%, 60%, 80%, and finally 100% of the load cell's capacity).

3. After each weight is added, record the output reading on the digital indicator.

Step 4: Creating a Calibration Curve

After recording all output readings, plot these values against the known weights to create a calibration curve. This curve will help identify any discrepancies in the load cell's readings.

Step 5: Adjusting for Accuracy

If discrepancies are noted between expected and actual readings:

1. Adjust the load cell settings as per manufacturer specifications.

2. Repeat the process of applying weights and recording output to ensure accuracy.

Step 6: Final Testing

After making adjustments, conduct a final test by repeating the calibration process to confirm that the load cell provides consistent readings across its range of weights.

Additional Considerations for Calibration

When calibrating tension load cells, consider these factors:

- Environmental Conditions: Temperature and humidity can affect readings; therefore, calibrations should ideally be performed under controlled conditions.

- Pin Size Compatibility: Ensure that pin sizes used during calibration match those used in actual applications to avoid measurement errors.

- Regular Calibration Schedule: Establish a routine schedule for recalibrating your load cells based on usage frequency and application criticality.

Conclusion

Properly calibrating a 40 kg tension load cell is vital for maintaining measurement accuracy in various applications. By following systematic steps and considering critical factors such as environmental conditions and pin size compatibility, you can ensure reliable performance from your tension load cells.

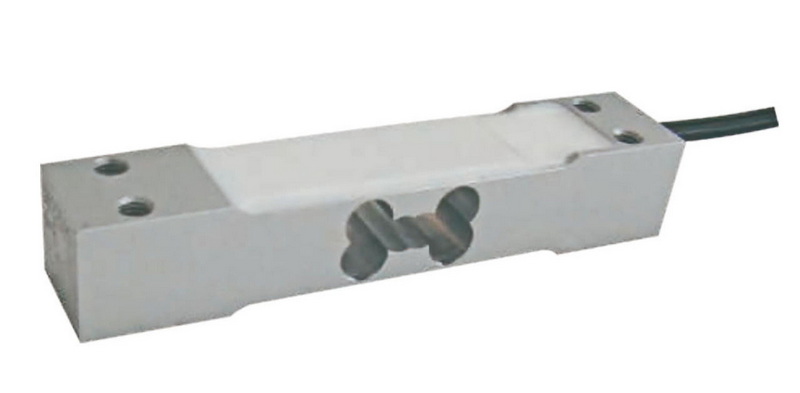

Lightweight Load Measurement

FAQ

1. What is a tension load cell?

A tension load cell is a sensor designed specifically to measure tensile forces or loads accurately by converting mechanical energy into electrical signals through strain gauges.

2. Why is it important to calibrate a low profile load cell?

Calibration ensures that measurements are accurate and reliable, which is essential for safety and operational efficiency in applications like weighing and force measurement.

3. How often should I calibrate my tension load cell?

The frequency of calibration depends on usage and environmental conditions but is generally recommended at least once a year or more frequently if used in critical applications.

4. Can I perform calibration myself?

Yes, with the right tools and knowledge, you can calibrate a load cell yourself; however, for critical applications, consulting a professional may be advisable.

5. What factors can affect the accuracy of a tension load cell?

Factors include environmental conditions (temperature and humidity), mechanical wear over time, incorrect installation or mounting setups, and mismatched pin sizes during calibration.
