In today's fast-paced industrial world, the ability to accurately measure and control tension is paramount for enhancing production efficiency, ensuring product quality, and optimizing equipment performance. Tension sensors play a pivotal role in modern automation systems, providing the essential data needed for superior process control. Among the various types of tension sensors, the tension load cell sensor stands out as a versatile and reliable solution for a wide range of applications. This comprehensive guide aims to provide you with the knowledge and insights necessary to select the right tension load cell sensor for your specific needs.
Before diving into the selection process, it's crucial to grasp the fundamental principles of tension measurement and the role of tension load cell sensors in industrial process control. Tension, in this context, refers to the pulling force exerted on a material, such as a cable, wire, rope, or web. Accurate measurement of this force is essential in various applications, including:
- Material Testing: Evaluating the tensile strength and elasticity of materials.
- Weighing Systems: Ensuring accurate weight measurements in industrial scales and truck scales.
- Lifting and Load Monitoring: Controlling loads in lifting, hoisting, and rigging operations.
- Construction and Civil Engineering: Measuring tensile forces in structures like bridges.
- Web Tension Control: Maintaining consistent tension in web-based processes like printing, coating, and slitting.
A tension load cell sensor is a transducer that converts tension into an electrical signal. This signal can then be processed and used to control various aspects of the system, such as speed, torque, or braking force.

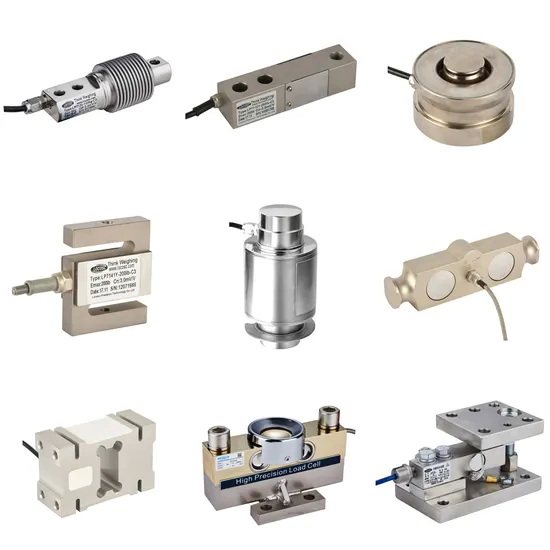

There are various styles of load cells, including tension, shear beam, compression, tension and compression, column, and single point. Tension load cells, also known as tension force sensors, are specifically designed to measure tensile or pulling forces. They are constructed to measure tension along a specific axis by converting the tension into an electrical signal.
Different types of tension load cell sensors:

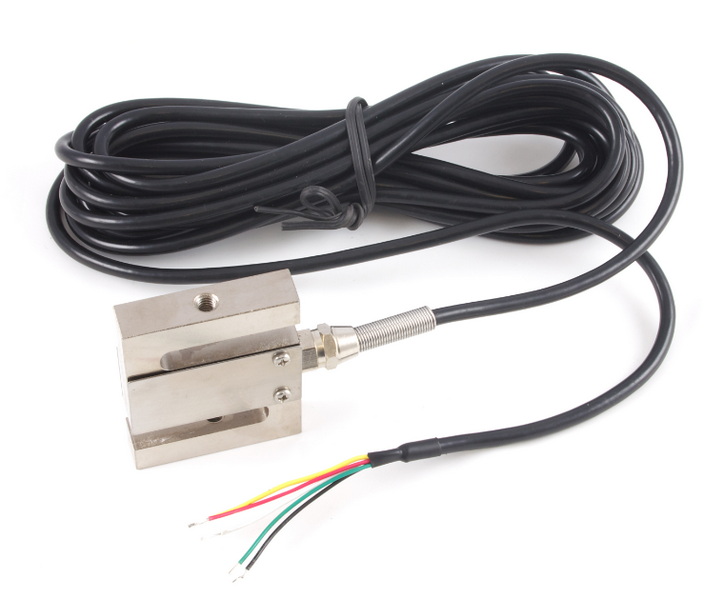

- S-Beam Load Cells: S-beam load cells are named for their S shape. They are versatile and can be used in both tension and compression applications. These load cells are particularly useful when space is limited, and their design allows for easy mounting. They are commonly used in weighing scales, force measurement, and tension monitoring.

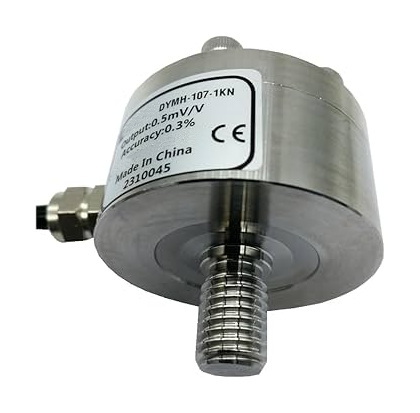

- In-Line Load Cells: Also known as threaded in-line load cells, these sensors are typically used for in-line tension applications. They are designed to be directly integrated into a system, providing a streamlined and accurate measurement. In-line load cells are often used in cable tension monitoring, robotic applications, and industrial automation systems.
- Tension Links: Tension links are specifically designed for lifting and weighing applications. They are robust and capable of handling heavy loads, making them ideal for crane scales, overhead weighing, and rigging operations. Tension links often come with integrated displays and wireless communication capabilities for remote monitoring.
- Load Pins: Load pins are designed to replace existing pins or axles in mechanical systems, providing a built-in tension measurement capability. They are commonly used in crane and hoist applications, as well as in structural monitoring and heavy equipment.
- Wire Rope Tension Meters: These specialized sensors are designed to measure tension in wire ropes and cables. They are commonly used in construction, rigging, and elevator maintenance to ensure safety and prevent equipment failures.
Choosing the right tension load cell sensor requires careful consideration of several factors, including your application's specific requirements, environmental conditions, and performance expectations. Here's a step-by-step guide to help you through the selection process:
The first step is to clearly define your application and what you want to measure. Ask yourself the following questions:
- What type of force are you measuring (tension, compression, or both)?
- What is the minimum and maximum tension you need to measure?
- What is the size and shape of the object you are measuring?
- What is the environment in which the sensor will be used (temperature, humidity, etc.)?
- What level of accuracy is required for your application?
- What is the required response time of the sensor?
- What is the expected lifespan of the sensor?
- Are there any specific industry standards or regulations that apply to your application?
Answering these questions will help you narrow down your search and identify the tension load cell sensor that best meets your needs.
Selecting the appropriate capacity for your tension load cell sensor is crucial to ensure accurate and reliable measurements. The capacity should be higher than the maximum operating load to accommodate any extraneous loads or moments. It is also important to consider the potential for overloading the sensor, which can lead to permanent damage. For endurance or fatigue applications, operating at 50% or lower of the rated capacity is advisable.
To determine the correct capacity, consider the maximum load the sensor will experience during normal operation, as well as any potential overload conditions. It is generally recommended to select a tension load cell sensor with a capacity that is 120% to 150% of the maximum expected load. This provides a safety margin and helps to prevent damage to the sensor.
The mounting type and load direction are other critical factors to consider. Common mounting types include female/male thread, in-line, side mount, flange mount, and thru-hole. The load direction can be tension, compression, or both. Select a sensor that is compatible with your mounting requirements and load direction.
The mounting type will depend on the specific application and the available space. For example, in-line load cells are designed to be directly integrated into a system, while S-beam load cells can be mounted using threaded connections. The load direction is also important, as some tension load cell sensors are designed to measure only tension, while others can measure both tension and compression.
The performance specifications of a tension load cell sensor determine its accuracy, reliability, and suitability for your application. Key specifications to consider include:
- Accuracy: The degree to which the sensor's output matches the actual tension being measured. Higher accuracy is essential for applications where precise measurements are critical.
- Nonlinearity: The maximum deviation of the sensor's output from a linear response. Lower nonlinearity indicates a more linear and predictable sensor response.
- Hysteresis: The difference in output for the same tension value when approached from increasing and decreasing directions. Lower hysteresis indicates a more consistent and repeatable sensor response.
- Creep: The change in output over time under a constant tension. Lower creep is important for long-term stability and accuracy.
- Resolution: The smallest change in tension that the sensor can detect. Higher resolution allows for more precise measurements of small changes in tension.
- Frequency Response: The range of frequencies over which the sensor can accurately measure tension. Higher frequency response is important for dynamic applications where tension changes rapidly.
- Temperature Sensitivity: The change in output due to changes in temperature. Lower temperature sensitivity indicates a more stable sensor performance over a range of temperatures.
- Overload Capacity: The maximum load that the sensor can withstand without damage. Higher overload capacity provides a greater safety margin and protects the sensor from accidental overloads.
The environment in which the tension load cell sensor will be used can significantly impact its performance and longevity. Consider the following environmental factors:
- Temperature: Extreme temperatures can affect the sensor's accuracy and stability. Look for sensors with temperature compensation features or those designed for high or low-temperature environments.
- Humidity: High humidity can cause corrosion and damage to the sensor. Consider using sensors with sealed housings or those made from corrosion-resistant materials.
- Vibration: Excessive vibration can lead to inaccurate readings and premature failure. Look for sensors with robust construction and vibration damping features.
- Corrosive Materials: Exposure to corrosive materials can damage the sensor's housing and internal components. Consider using sensors made from corrosion-resistant materials, such as stainless steel or titanium.
- Ingress Protection (IP) Rating: The IP rating indicates the level of protection against dust and water ingress. Select a sensor with an appropriate IP rating for your application. For example, an IP67 rating indicates that the sensor is protected against dust and immersion in water up to 1 meter.
Select a sensor that is designed to withstand the environmental conditions of your application. If you are unsure, consult with a sensor manufacturer or supplier for guidance.
To get the most out of your tension load cell sensor, it's essential to choose the right instrumentation. This includes:
- Amplifiers and Signal Conditioners: To amplify and condition the sensor's output signal. Amplifiers boost the weak signal from the load cell to a level that can be easily processed by other equipment. Signal conditioners provide filtering, excitation voltage, and other functions to improve the signal quality.
- Analog-to-Digital Converters (ADCs): To convert the analog signal to a digital signal for processing. ADCs are used to convert the analog voltage signal from the load cell into a digital signal that can be read by a computer or other digital device.
- Displays and Indicators: To display the tension readings. Displays can be simple digital readouts or more sophisticated graphical displays that show tension over time.
- Data Acquisition Systems (DAS): To collect and record tension data. DAS systems are used to collect data from multiple sensors and record it for later analysis.
- Wireless Telemetry Equipment: To transmit the data wirelessly. Wireless telemetry equipment allows you to monitor tension remotely, without the need for cables.
- Control Systems: To control processes based on tension measurements. Control systems can be used to automatically adjust tension in a web-based process or to shut down equipment if tension exceeds a safe level.
Ensure that the instrumentation is compatible with the sensor and meets your application's requirements. Consider factors such as accuracy, resolution, sampling rate, and communication interfaces when selecting instrumentation.
Calibration is the process of ensuring that the sensor's output is accurate and consistent. Regular calibration is essential to maintain the sensor's performance over time.
- Calibration Frequency: The frequency of calibration will depend on the application and the manufacturer's recommendations. In general, it is recommended to calibrate tension load cell sensors at least once a year, or more frequently if the sensor is used in a critical application.
- Calibration Methods: Calibration can be performed using a variety of methods, including deadweight calibration, force standard calibration, and shunt calibration. Deadweight calibration involves applying known weights to the sensor and comparing the output to the expected value. Force standard calibration involves using a calibrated force standard to apply a known force to the sensor. Shunt calibration involves applying a known resistance across one of the strain gauges in the sensor and comparing the output to the expected value.
- Calibration Records: Keep detailed records of all calibration activities, including the date, method, and results. This will help you track the sensor's performance over time and identify any potential problems.
Also, minimal maintenance is required for tension load cells.
- Visual Inspection: Regularly inspect the sensor for any signs of damage, such as cracks, dents, or corrosion.
- Cleaning: Keep the sensor clean and free from dirt and debris.
- Cable Inspection: Inspect the sensor's cable for any signs of damage, such as cuts, abrasions, or loose connections.
- Storage: When not in use, store the sensor in a clean, dry environment.
Modern tension load cell sensors come with several advanced features that enhance their performance and usability:
- Digital Output: Some sensors provide a digital output, such as USB, RS-485, or Ethernet, which simplifies integration with digital systems and reduces noise.
- Wireless Communication: Wireless sensors allow for remote monitoring and control, eliminating the need for cables and reducing installation costs.
- Built-in Signal Conditioning: Some sensors have built-in signal conditioning circuitry, which simplifies the instrumentation requirements and reduces the overall system cost.
- Smart Sensors: Smart sensors incorporate microprocessors that provide advanced features such as self-calibration, diagnostics, and data logging.
- Explosion-Proof Designs: For hazardous environments, explosion-proof sensors are available to prevent ignition of flammable materials.
Tension load cell sensors find applications in a wide array of industries and processes:
- Aerospace: Monitoring tension in aircraft cables and control systems, ensuring the safe operation of aircraft.
- Automotive: Measuring tension in seatbelts, cables, and other components, improving vehicle safety and performance.
- Construction: Measuring tension in bridges, buildings, and other structures, ensuring structural integrity and preventing collapses.
- Manufacturing: Monitoring tension in production lines and machinery, optimizing production processes and reducing downtime.
- Marine: Measuring tension in mooring lines, cables and crane, ensuring safe and efficient operation of marine vessels and equipment.
- Medical: Measuring tension in medical devices and equipment, improving patient care and safety.
- Research and Development: Assessing the tensile properties of new materials and structures, advancing scientific knowledge and innovation.
- Robotics: Measuring forces in robotic arms and end effectors, enabling precise control and manipulation of objects.
- Textile Industry: Monitoring tension in yarn and fabric during manufacturing, ensuring consistent product quality and preventing breakage.
- Packaging Industry: Measuring tension in packaging materials during filling and sealing, ensuring proper package integrity and preventing leaks.
Selecting the right tension load cell sensor is a critical decision that can significantly impact the performance and efficiency of your application. By understanding the principles of tension measurement, considering the key selection criteria, and carefully evaluating your application's requirements, you can choose a sensor that provides accurate, reliable, and long-lasting performance. Always remember to consult with experienced sensor manufacturers and suppliers to ensure you make the best choice for your specific needs.
A tension load cell sensor is a transducer that converts a pulling force (tension) into an electrical signal. This signal can then be used to measure and control tension in various applications. It's an essential component in systems that require precise measurement and control of tensile forces.
When tension is applied to the load cell, it deforms slightly, causing a change in the resistance of strain gauges within the sensor. This change in resistance is proportional to the applied tension and is converted into an electrical signal. The electrical signal is then amplified and processed to provide a reading of the tension force.
Key factors to consider include the application requirements, load capacity, mounting type, performance specifications, environmental conditions, and instrumentation. Understanding these factors will ensure that you select a sensor that meets your specific needs and provides accurate, reliable measurements.
Common applications include material testing, weighing systems, lifting and load monitoring, construction, web tension control, and various industrial processes. These sensors are used in a wide range of industries to ensure safety, improve efficiency, and optimize performance.
Calibration typically involves applying known tension forces to the sensor and adjusting the instrumentation to ensure accurate readings. It's recommended to follow the manufacturer's instructions and use calibrated equipment for the calibration process. Regular calibration is essential to maintain the sensor's accuracy and reliability over time.
