The 2015 Ford Fiesta, like many modern vehicles, relies on a sophisticated network of sensors and safety systems to protect occupants in the event of a collision. Among these critical components is the passenger seat belt tension sensor. This sensor plays a vital role in the Supplemental Restraint System (SRS), which includes airbags and seat belts. When the sensor malfunctions, it can trigger the airbag warning light and potentially compromise the effectiveness of the safety system. This article provides a comprehensive guide to diagnosing a faulty 2015 Ford Fiesta passenger seat belt tension sensor, offering step-by-step instructions, troubleshooting tips, and relevant information to help you address this issue effectively.
The seat belt tension sensor is a component of the occupant classification system. It helps the vehicle determine the size and weight of the passenger in the front seat[4]. This information is crucial for the SRS to deploy the airbags with the appropriate force. The sensor typically consists of a housing, an anchor plate, and a sensor element that detects the tension on the seat belt[8]. The data gathered is used to differentiate between a child restraint system and an adult occupant[4].

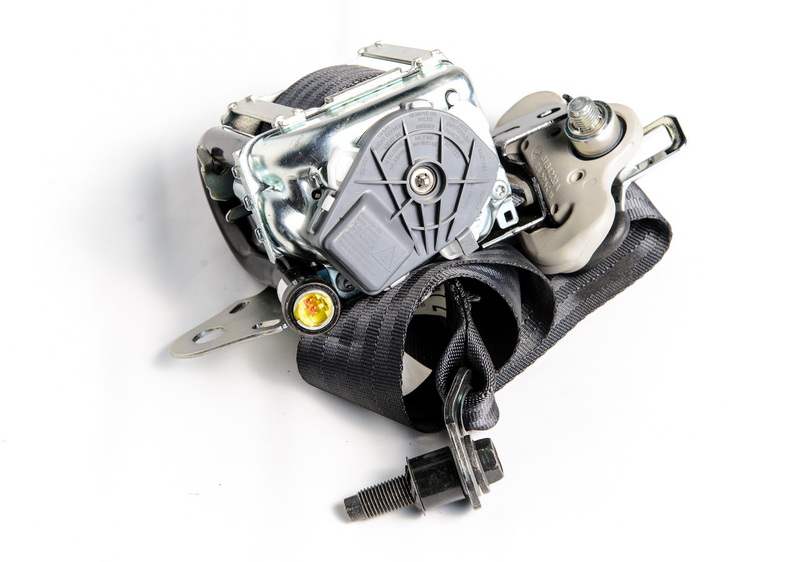

In the 2015 Ford Fiesta, the passenger seat belt tension sensor is typically located within the seat belt buckle or the retractor mechanism[1]. It's usually integrated into the seatbelt tensioner assembly[6]. Accessing it may require removing the seat or some of the surrounding trim pieces.
The primary function of the seat belt tension sensor is to measure the amount of tension applied to the seat belt[8]. This data is fed into the vehicle's SRS control module, which uses it to make decisions about airbag deployment. If the sensor detects a malfunction, such as an open circuit or incorrect tension reading, it will trigger the airbag warning light on the dashboard[4]. This warning indicates that the SRS may not function correctly in a crash, increasing the risk of injury to the passenger[4].
Several symptoms can indicate a problem with the 2015 Ford Fiesta passenger seat belt tension sensor. Recognizing these signs early can help prevent more significant issues down the road.
The most common symptom is the illumination of the airbag warning light on the instrument cluster[4]. This light signals that the SRS has detected a fault and requires attention. The light may be constantly on, or it may flicker intermittently.
When the airbag light comes on, the vehicle's computer stores a Diagnostic Trouble Code (DTC) that corresponds to the specific problem. For a faulty passenger seat belt tension sensor, you might see codes like B0061-13[1]. This code specifically relates to the passenger seat belt tension sensor circuit[1]. Using an OBD-II scanner can help you retrieve these codes.
In some cases, a faulty tension sensor can cause the passenger airbag "OFF" indicator to light up, even when an adult is sitting in the seat[4]. This means that the passenger airbag will be deactivated in a collision, which can be dangerous[4].
The symptoms might not be consistent. You may notice the airbag light turning on and off, or the passenger airbag "OFF" indicator appearing sporadically. These intermittent issues can be particularly challenging to diagnose.
Diagnosing a faulty 2015 Ford Fiesta passenger seat belt tension sensor requires a systematic approach. Here's a step-by-step procedure to guide you through the process:
Before you begin, make sure you have the following tools and equipment:
- OBD-II Scanner: To read and clear diagnostic trouble codes.
- Multimeter: To test the electrical continuity and voltage of the sensor and wiring.
- Socket Set and Wrenches: To remove the seat and access the sensor.
- Screwdrivers: Assorted sizes, including Torx bits.
- Wiring Diagram: For the 2015 Ford Fiesta SRS system.
- Safety Glasses and Gloves: To protect yourself during the process.
Connect the OBD-II scanner to the vehicle's diagnostic port, typically located under the dashboard. Turn the ignition on (but do not start the engine) and follow the scanner's instructions to read any stored DTCs. Record any codes related to the airbag system or seat belt tension sensor. Specifically look for B0061-13[1].

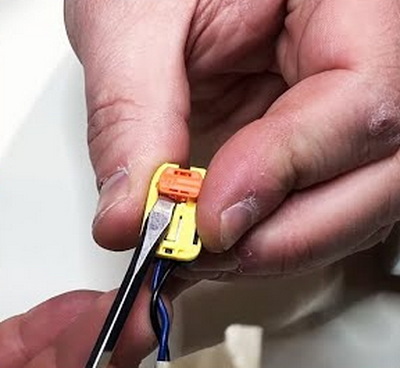

Visually inspect the wiring and connectors associated with the passenger seat belt tension sensor. Look for any signs of damage, such as frayed wires, corrosion, or loose connections[3]. Pay close attention to the connector that plugs directly into the sensor. Disconnect the connector and check for bent or damaged pins. Clean the connector with electrical contact cleaner if necessary. Moving the seat forward and backward may cause damage to the wires[3].
Use a multimeter to test the electrical continuity of the seat belt tension sensor. Refer to the wiring diagram for the 2015 Ford Fiesta to identify the correct pins to test. Set the multimeter to the continuity setting (usually indicated by a speaker icon). Place one probe on one pin of the sensor connector and the other probe on the corresponding pin on the other side of the connector. If there is no continuity, the sensor is likely faulty and needs replacement.
With the connector plugged into the sensor and the ignition on, use a multimeter to check the voltage at the sensor. Again, refer to the wiring diagram to identify the correct pins. You should see a specific voltage reading (typically around 5 volts). If the voltage is significantly different from the specified value, there may be a problem with the sensor or the wiring harness.
Check the resistance of the sensor using a multimeter. Compare the reading to the manufacturer's specification. A significant deviation suggests a faulty sensor.
The pretensioner is part of the seat belt system that tightens the belt in the event of a collision[2]. Ensure it is not damaged or deployed. If it's been activated, it will need replacement[2].
If you've completed these steps and are still unsure about the problem, it's best to take your 2015 Ford Fiesta to a qualified mechanic. They have specialized tools and expertise to diagnose complex SRS issues. Ford can diagnose it with a scan tool[6].
Several factors can lead to the failure of a 2015 Ford Fiesta passenger seat belt tension sensor:
- Physical Damage: Accidents or impacts can damage the sensor or its wiring[7].
- Wear and Tear: Over time, the sensor's internal components can wear out due to repeated use[7].
- Corrosion: Moisture and humidity can cause corrosion in the sensor's connectors and wiring[7].
- Electrical Issues: Short circuits, open circuits, or voltage spikes can damage the sensor.
- Manufacturing Defects: In rare cases, the sensor may fail due to a defect in its manufacturing.
Once you've diagnosed a faulty passenger seat belt tension sensor, you have a few repair options:
The most common solution is to replace the faulty sensor with a new one. Ensure that you purchase a sensor that is specifically designed for the 2015 Ford Fiesta. Follow the manufacturer's instructions for installation. After replacing the sensor, you'll need to use an OBD-II scanner to clear the DTCs and reset the airbag warning light. Replacing the passenger seat belt retractor and tension sensor with a salvaged one might not solve the problem[1].
If the problem is due to damaged wiring or connectors, you may be able to repair the wiring harness instead of replacing the entire sensor. This involves splicing in new wires or replacing damaged connectors. Be sure to use high-quality wiring and connectors and follow proper wiring repair techniques.
Sometimes, even after replacing the sensor or repairing the wiring, the airbag warning light may remain on. In this case, you may need to have the SRS control module reset by a qualified mechanic. This requires specialized software and equipment.
After completing the repair, it's essential to verify that the problem has been resolved. Use an OBD-II scanner to confirm that there are no remaining DTCs related to the airbag system. Start the vehicle and check that the airbag warning light is off. If possible, perform a test drive to ensure that the SRS is functioning correctly.
Working on the SRS system can be dangerous, as accidental airbag deployment can cause serious injury. Follow these safety precautions:
- Disconnect the Battery: Before working on any part of the SRS, disconnect the negative battery cable and wait at least 10 minutes. This will allow any stored energy in the system to dissipate.
- Avoid Static Electricity: Static electricity can trigger airbag deployment. Ground yourself by touching a metal part of the vehicle before touching any SRS components.
- Handle Airbags Carefully: If you need to remove an airbag, handle it with care and avoid dropping it.
- Follow Instructions: Always follow the manufacturer's instructions when installing or repairing SRS components.
Diagnosing a faulty 2015 Ford Fiesta passenger seat belt tension sensor requires a methodical approach, a basic understanding of automotive electrical systems, and the right tools. By following the steps outlined in this guide, you can effectively troubleshoot the problem and determine the appropriate repair. Remember to prioritize safety and, when in doubt, seek the assistance of a qualified mechanic to ensure the SRS system functions correctly and protects you and your passengers in the event of a collision.
The B0061-13 code indicates a fault in the passenger seat belt tension sensor circuit in a 2015 Ford Fiesta[1]. It suggests an open circuit or a problem with the sensor's electrical connection.
Yes, if you have experience with automotive electrical systems and the necessary tools, you can replace the seat belt tension sensor yourself. However, it's crucial to follow safety precautions and consult the vehicle's service manual for detailed instructions[7].
The cost to replace a seat belt tension sensor can vary depending on the make and model of the vehicle, as well as the labor rates in your area. Generally, you can expect to pay between $150 and $400 for the replacement, including parts and labor.
Yes, a faulty seat belt tension sensor can affect the deployment of your airbags[4]. The sensor is part of the occupant classification system, which helps the vehicle determine the appropriate airbag deployment strategy. If the sensor is not functioning correctly, the airbags may not deploy properly in a collision, increasing the risk of injury.
It is not recommended to drive with the airbag warning light on[4]. This indicates that there is a problem with the SRS, and the airbags may not function correctly in a crash. It's best to have the issue diagnosed and repaired as soon as possible to ensure your safety.
