When it comes to purchasing load cells, whether they are tension or compression types, ensuring quality is paramount. Load cells are critical components used in various applications ranging from industrial weighing systems to medical devices. A poor-quality load cell can lead to inaccurate measurements, which can have significant implications for operational efficiency and safety. This article outlines key considerations and best practices for ensuring quality when buying from a load cell factory.

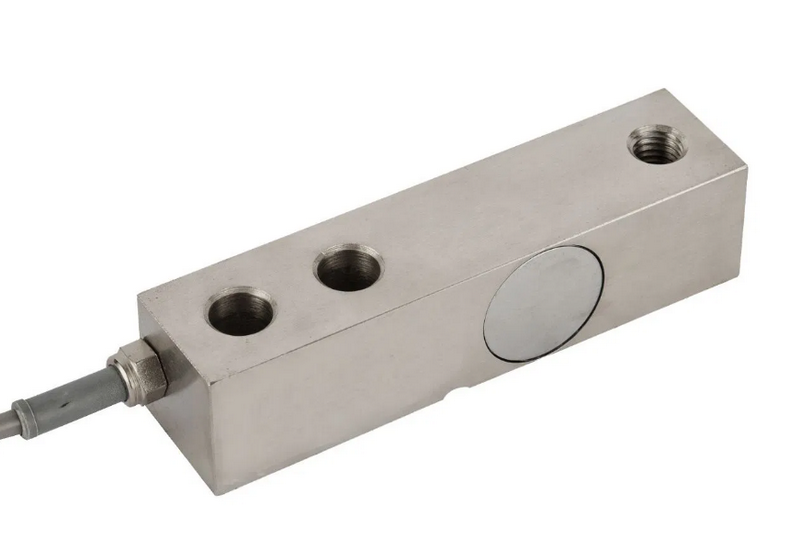

Load cells are transducers that convert mechanical force into an electrical signal. They are commonly classified into two main types:
- Tension Load Cells: These measure pulling forces.
- Compression Load Cells: These measure pushing forces.
Both types are essential in different applications, and choosing the right one depends on the specific requirements of your project.
The reputation of the load cell manufacturer plays a crucial role in determining the quality of the product. Look for manufacturers with a proven track record in the industry. Research their history, customer reviews, and any certifications they may hold.
- Certifications: Ensure that the manufacturer complies with international standards such as ISO 9001 for quality management systems.
- Experience: Manufacturers with years of experience often have refined processes and better quality control measures.

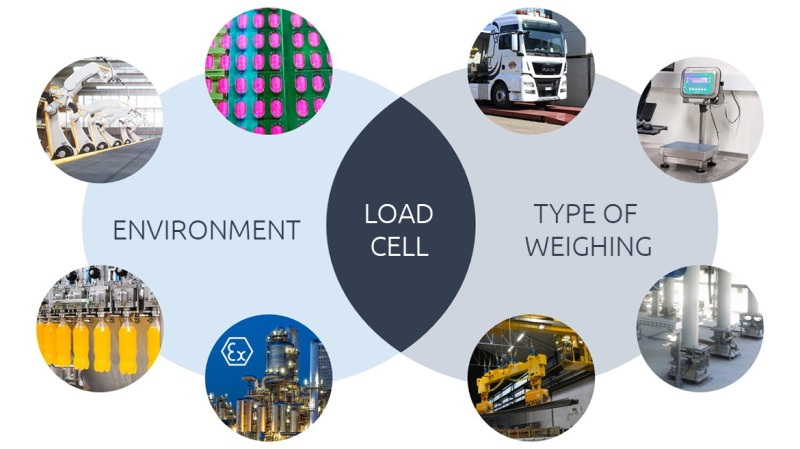

The materials used in the construction of load cells significantly affect their durability and accuracy. High-quality materials can withstand harsh environments and provide reliable performance over time.
- Common Materials: Stainless steel is often preferred for its corrosion resistance, while aluminum is lightweight and suitable for lower-capacity applications.
- Environmental Resistance: If the load cell will be exposed to moisture or chemicals, ensure it has appropriate sealing (IP ratings) to prevent damage.
Understanding the manufacturing process can help you gauge the quality of the load cells produced. Here are some aspects to consider:
- Machining Techniques: Look for manufacturers that use CNC machining for precision. This technique ensures that each component is manufactured to tight tolerances.
- Strain Gauge Bonding: The bonding process of strain gauges should be performed in cleanroom environments to prevent contamination, which can affect accuracy.
- Calibration Procedures: Quality manufacturers perform thorough testing and calibration on each load cell before shipping. They should provide calibration certificates detailing the performance specifications of each unit.
When evaluating load cells, pay attention to their performance specifications:
- Accuracy: Check the accuracy rating, which indicates how closely the load cell's output corresponds to the actual load applied.
- Repeatability: This refers to the load cell's ability to produce consistent results under identical conditions over time.
- Capacity Ratings: Ensure that the load cell's capacity exceeds your maximum expected load by at least 20% to prevent damage from overloads.
A reputable manufacturer will have stringent testing protocols in place:
- Sample Testing: Manufacturers should test sample units under various conditions, including overload tests and environmental stress tests.
- Quality Control: Look for factories that implement rigorous quality control measures throughout their production process, ensuring each unit meets established standards before leaving the facility.
Before finalizing your purchase, conduct a visual inspection of samples if possible:
- Physical Condition: Check for any visible defects such as cracks or poor welds that could indicate subpar manufacturing practices.
- Finish Quality: A high-quality finish often reflects attention to detail in manufacturing processes.
Effective communication with your supplier is essential:
- Ask Questions: Don't hesitate to ask about their manufacturing processes, materials used, and testing protocols.
- Request Documentation: Ask for documentation regarding certifications, test results, and warranties associated with the load cells.
Ensuring quality when buying from a load cell factory involves careful consideration of several factors including manufacturer reputation, material quality, manufacturing processes, performance specifications, testing protocols, visual inspections, and effective communication with suppliers. By following these guidelines, you can make informed decisions that will lead to successful outcomes in your applications requiring tension or compression load cells.
A load cell is a type of transducer that converts mechanical force (such as weight) into an electrical signal proportional to that force.
Choose a tension load cell if you need to measure pulling forces; select a compression load cell for measuring pushing forces.
Common materials include stainless steel for its durability and corrosion resistance, and aluminum for lightweight applications.
Calibration frequency depends on usage; however, it is generally recommended at least once a year or more frequently for critical applications.
Factors include environmental conditions (temperature and humidity), installation alignment, and external loads applied during operation.
