Hydraulic tension load cells are critical components in various industries, particularly in applications involving heavy lifting and precise weight measurement. Their reliability and accuracy make them indispensable for ensuring safety and efficiency in operations. This article will explore how to ensure safety and accuracy with hydraulic tension load cells, detailing their working principles, best practices for use, and maintenance tips.

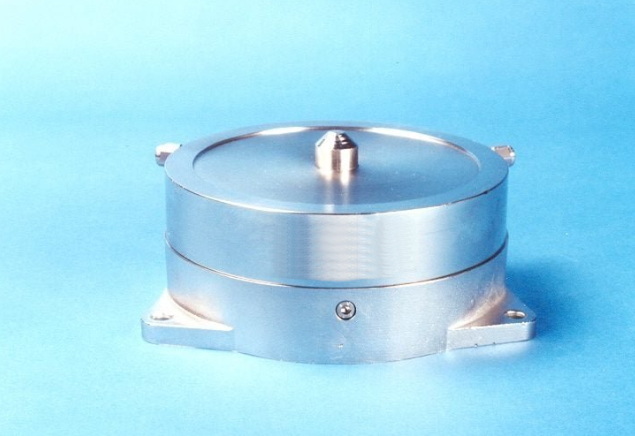

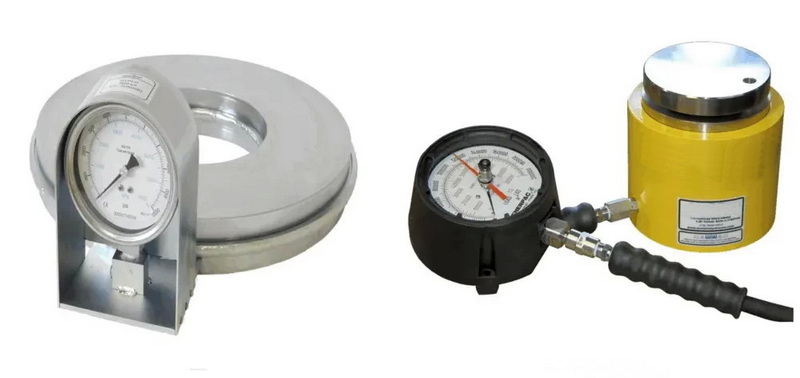

Hydraulic tension load cells operate on the principle of fluid mechanics, specifically Pascal's law, which states that pressure applied to a confined fluid is transmitted undiminished in all directions. These load cells consist of a piston and a cylinder filled with hydraulic fluid. When a load is applied, it exerts pressure on the piston, causing a measurable change in fluid pressure that correlates to the weight of the load.
- Piston: The primary component that responds to the applied load.
- Cylinder: Contains the hydraulic fluid and houses the piston.
- Hydraulic Fluid: Transfers pressure changes from the piston to the measurement system.

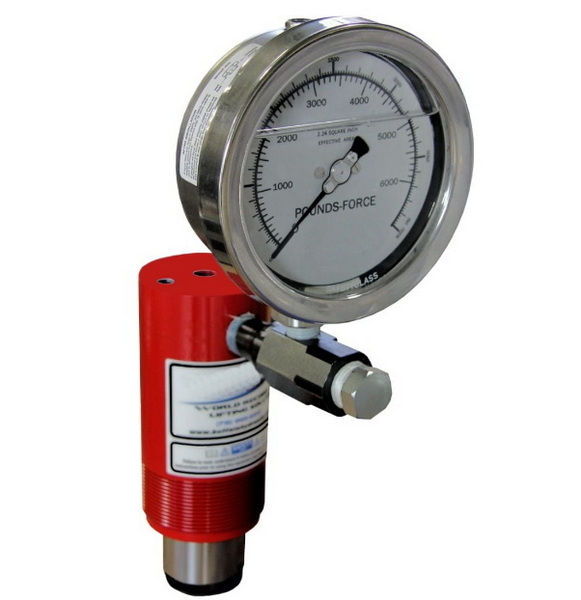

- Pressure Gauge: Displays the pressure reading, which is calibrated to indicate weight.
Ensuring safety when using hydraulic tension load cells is paramount. Failure to maintain safety standards can lead to catastrophic accidents, especially in industries such as construction, oil and gas, and manufacturing. Here are some essential safety measures:
Routine checks are vital for identifying wear and tear or potential failures in hydraulic systems. Regular maintenance should include:
- Checking for leaks in the hydraulic lines.
- Ensuring that all connections are secure.
- Inspecting seals and gaskets for signs of deterioration.
Calibration is crucial for ensuring accuracy. Hydraulic tension load cells should be calibrated regularly according to manufacturer specifications. This process involves:
- Adjusting the pressure gauge to ensure it reflects accurate weight measurements.
- Testing with known weights to verify calibration.
All personnel operating hydraulic tension load cells should receive comprehensive training. This training should cover:
- Understanding how hydraulic systems work.
- Recognizing signs of malfunction or failure.
- Proper handling techniques to avoid accidents.
Accuracy is essential for effective operations, particularly when precise measurements are required. Here are strategies to enhance accuracy:
Even load distribution across the load cell is critical for accurate measurements. Uneven loads can lead to erroneous readings. To ensure even distribution:
- Use appropriate fixtures or supports that distribute weight evenly across the load cell.
Hydraulic tension load cells can be sensitive to environmental factors such as temperature and humidity. To mitigate these effects:
- Install load cells in controlled environments when possible.
- Shield them from direct exposure to extreme temperatures or moisture.
Investing in high-quality hydraulic tension load cells ensures better accuracy and reliability. When selecting a load cell, consider:
- Manufacturer reputation and product reviews.
- Specifications such as accuracy range (typically ±0.1% to ±0.5% of full scale) and overload capacity.
Proper installation is crucial for optimal performance of hydraulic tension load cells. Follow these best practices:
Ensure that the load cell is securely mounted according to manufacturer guidelines. This prevents movement during operation, which could affect readings.
Maintain appropriate hydraulic fluid levels within the system to ensure responsive operation. Low fluid levels can lead to inaccurate readings or system failure.
Align the load cell properly with respect to the applied force direction to avoid side loading, which can compromise accuracy.
To maximize the lifespan of hydraulic tension load cells, adhere to these maintenance tips:
Keep the exterior of the load cell clean from dirt and debris, which can affect performance over time.
Regularly monitor performance metrics and compare them against baseline readings established during calibration.
Address any signs of wear immediately by replacing seals or other components before they lead to larger issues.
Hydraulic tension load cells are vital tools in ensuring safe and accurate weight measurement across various industries. By adhering to best practices for installation, maintenance, and operation, organizations can enhance both safety and accuracy in their operations. Regular training for personnel and routine inspections will further contribute to optimal performance and longevity of these essential devices.
Hydraulic tension load cells are used primarily for measuring tensile loads in applications such as construction, oil drilling, and manufacturing processes where heavy lifting is involved.
It is recommended that hydraulic tension load cells be calibrated at least once a year or more frequently if they are subjected to heavy use or harsh environmental conditions.
Factors affecting accuracy include uneven load distribution, environmental conditions (temperature and humidity), fluid levels in the system, and mechanical misalignment during installation.
Yes, but they should be protected from extreme weather conditions and moisture exposure which can affect their performance over time.
Regular maintenance includes inspecting for leaks, checking seals, cleaning components, monitoring performance metrics, and ensuring proper fluid levels within the system.
