A malfunctioning seat belt tension sensor in your 2006 Toyota Tundra can lead to various safety system issues, including the deactivation of airbags. This article provides a comprehensive guide on diagnosing and fixing wiring problems related to the seat belt tension sensor. We will cover common issues, troubleshooting steps, repair options, and preventative measures.
The seat belt tension sensor is a crucial component of your vehicle's Supplemental Restraint System (SRS), which includes airbags and seat belts. The sensor monitors the tension and usage of the seat belt. In the event of a collision, the sensor provides data to the airbag control module (ACM), helping it determine whether to deploy the airbags and pretensioners. A faulty sensor or its wiring can prevent the airbags from deploying, increasing the risk of injury during an accident. It is not just a matter of convenience; it's a matter of safety. Regular checks and prompt repairs of the seat belt tension sensor system are vital for maintaining the integrity of your vehicle's safety features.
Several factors can cause wiring issues in the seat belt tension sensor system:
- Broken Wires: Repeated bending stress during normal seat belt usage can cause the wires in the sensor harness to break over time. The constant pulling and retraction of the seatbelt, coupled with the age of the wiring, makes this a common issue, particularly in older vehicles like the 2006 Toyota Tundra.
- Loose Connections: Vibrations and wear can loosen the connections in the sensor plug, leading to intermittent or complete signal loss. Over time, the connectors can lose their grip, especially if they've been disturbed or subjected to extreme temperatures.
- Corrosion: Exposure to moisture and environmental factors can corrode the wiring and connectors, disrupting the electrical signal. Salt, humidity, and even spilled drinks can accelerate corrosion, rendering the wiring unreliable.
- Damage from Manipulation: Excessive manipulation or improper handling of the wire harness during component installation or repair can damage the wires. Careless handling during other repairs can inadvertently damage the delicate wiring associated with the seat belt tension sensor.
- Rodent Damage: In some cases, rodents may chew on the wiring, causing significant damage that can lead to sensor malfunction. This is more common in vehicles parked for extended periods or in areas with rodent populations.
Before starting any repair work, gather the necessary tools and materials:
- Basic Hand Tools: Screwdrivers (Phillips and flathead), socket set, pliers, wire strippers, and wire crimpers. Having a good set of hand tools is essential for any automotive repair.
- Electrical Tester: Multimeter to check voltage and continuity. A multimeter is indispensable for diagnosing electrical problems.
- Scan Tool: An OBD2 scanner to read diagnostic trouble codes (DTCs). A scanner that can read SRS-specific codes is particularly useful.
- Replacement Parts: New seat belt tension sensor pigtail or connector, if needed. Always opt for high-quality replacement parts to ensure durability and proper function.
- Wiring Supplies: Electrical tape, heat shrink tubing, and wire connectors. Heat shrink tubing provides a more secure and moisture-resistant seal compared to electrical tape alone.
- Safety Gear: Gloves and safety glasses. Safety should always be a top priority when working on your vehicle.
1. Check the SRS Warning Light: If there is an issue with the seat belt tension sensor, the SRS warning light on the dashboard will illuminate. Note the conditions under which the light comes on, such as during startup or while driving.
2. Use an OBD2 Scanner: Connect an OBD2 scanner to the vehicle's diagnostic port to read any stored DTCs. Codes such as B1901 (pretensioner squib circuit code) or B1773 and B1776 may indicate a problem with the seat belt tension sensor wiring. Write down all the codes that appear, as they can provide clues about the nature and location of the problem.
1. Locate the Seat Belt Tension Sensor: The sensor is typically located near the seat belt buckle or retractor mechanism. Consult your vehicle's service manual for the exact location.
2. Visual Inspection: Check the wiring harness and connectors for any obvious signs of damage, such as broken, frayed, or corroded wires. Use a flashlight to get a better view of the wiring and connectors in tight spaces.
3. Check the Connectors: Ensure that the connectors are securely attached to the sensor and the wiring harness. Look for bent or damaged pins inside the connectors. Use a small pick or screwdriver to gently straighten any bent pins.
1. Continuity Test: Use a multimeter to perform a continuity test on the wires in the harness. Disconnect the sensor and wiring harness, then use the multimeter to check for continuity between the terminals. A lack of continuity indicates a broken wire. Refer to the wiring diagram to identify the correct terminals.
2. Voltage Test: With the ignition on, use a multimeter to check for voltage at the sensor connector. Refer to the vehicle's wiring diagram to identify the correct terminals. A lack of voltage indicates a problem with the power supply to the sensor. Be sure to consult the wiring diagram to understand which wires should have voltage and what the expected voltage should be.
3. Resistance Test: Additionally, a resistance test can reveal issues with the wiring. Higher than normal resistance can point to corrosion or partially broken wires.
4. Ground Check: It's important to ensure that the ground connection for the sensor is solid. A poor ground can cause intermittent problems and false readings.
1. Repairing Broken Wires: If you find a broken wire, you can repair it by splicing in a new section of wire. Use wire strippers to remove the insulation from the ends of the broken wire, then crimp or solder the new wire in place. Cover the connection with electrical tape or heat shrink tubing to protect it from moisture and corrosion. Solder is generally preferred for a more durable connection, but crimping can be faster and easier in tight spaces.
2. Replacing the Connector: If the connector is damaged or corroded, it may be necessary to replace it. Purchase a new connector that is compatible with your vehicle's seat belt tension sensor. Cut the old connector off the wiring harness, then strip the insulation from the ends of the wires. Crimp or solder the new connector onto the wires, ensuring that the connections are secure.

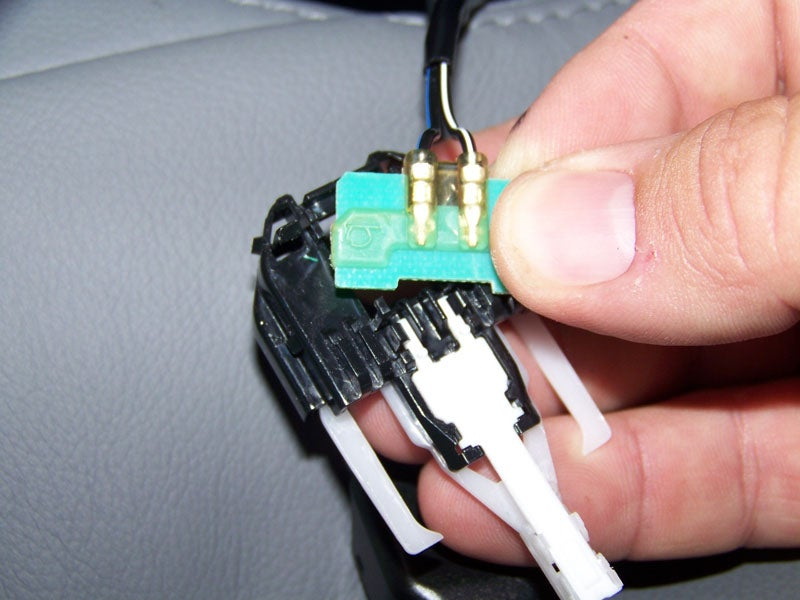

3. 2006 toyota tundra seat belt tension sensor pigtail Replacement:A pigtail is a short length of wire with a connector on one end. If the wiring near the connector is damaged, replacing the pigtail can be an effective solution. Purchase a 2006 toyota tundra seat belt tension sensor pigtail, match the wires to the existing harness, and splice them using appropriate connectors and insulation. Be meticulous in matching the wire colors to ensure correct connections.
4. Complete Harness Replacement: In severe cases where multiple wires are damaged or the harness is in poor condition, consider replacing the entire wiring harness.
1. Reassemble the Components: Once you have repaired or replaced the wiring, reassemble the seat belt tension sensor and wiring harness. Ensure that all connections are secure and that the wiring is properly routed to prevent chafing or damage.
2. Clear the DTCs: Use an OBD2 scanner to clear any stored DTCs from the vehicle's computer. Even if the problem is fixed, the SRS light may remain on until the codes are cleared.
3. Test the System: Start the vehicle and check if the SRS warning light is still illuminated. If the light is off, the repair was successful. If the light is still on, there may be another issue with the seat belt tension sensor system. Perform a test drive to ensure that the SRS light remains off under various driving conditions.
To minimize the risk of future wiring problems, consider the following preventative measures:
- Regular Inspections: Periodically inspect the wiring and connectors for any signs of damage or corrosion.
- Protective Measures: Use wire loom or other protective coverings to shield the wiring from abrasion and environmental factors.
- Careful Handling: Handle the wiring harness carefully during any maintenance or repair work.
- Moisture Control: Keep the interior of your vehicle clean and dry to prevent corrosion.
- Rodent Control: If you live in an area with rodent problems, take steps to protect your vehicle from rodent damage.
- Consult a Professional: If you are not comfortable working with electrical systems, it is best to consult a professional mechanic. Working with SRS components requires caution, as improper handling can trigger airbag deployment.
- Use Quality Parts: When replacing parts, use high-quality components that are designed for your vehicle. Aftermarket parts may not meet the same standards as OEM parts.
- Follow Safety Precautions: Always disconnect the battery before working on the electrical system to prevent accidental shocks or damage. Wait at least 15 minutes after disconnecting the battery before working on SRS components to allow the system to discharge.

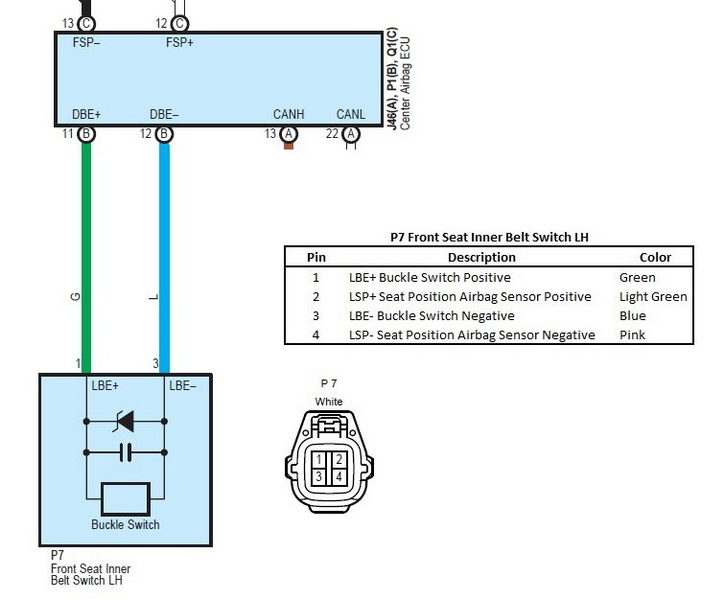

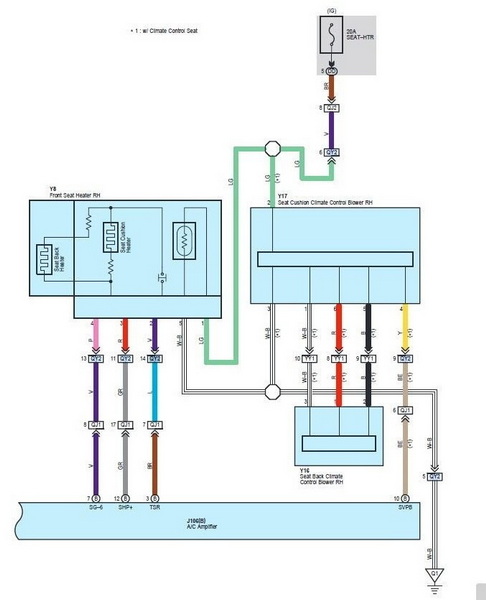

- Refer to the Wiring Diagram: A wiring diagram can be a valuable resource when troubleshooting electrical problems. Obtain a wiring diagram specific to your 2006 Toyota Tundra.
- MyAirbags Forum: Online forums such as MyAirbags Forum can offer additional support and advice from other vehicle owners and professionals.
Fixing a seat belt tension sensor wiring issue in a 2006 Toyota Tundra requires a systematic approach to diagnosing and repairing the problem. By following the steps outlined in this guide, you can identify and fix common wiring issues, ensuring that your vehicle's SRS system is functioning properly. Always prioritize safety and consult a professional if you are unsure about any part of the repair process. Remember to use quality parts, follow safety precautions, and regularly inspect your vehicle's wiring to prevent future problems. Addressing issues related to the 2006 toyota tundra seat belt tension sensor pigtail promptly can significantly improve the safety and reliability of your vehicle.
A faulty seat belt tension sensor can cause the SRS warning light to illuminate on the dashboard. Other symptoms may include the deactivation of airbags and pretensioners, which can increase the risk of injury during an accident. You might also notice intermittent activation of the SRS warning light, or the system may fail to activate during a collision.
Yes, if you have experience working with automotive electrical systems, you can replace the seat belt tension sensor yourself. However, if you are not comfortable working with electrical systems, it is best to consult a professional mechanic. Working with SRS components involves inherent risks, and improper installation or repair can compromise the safety of the system.
The cost to replace a seat belt tension sensor can vary depending on the make and model of your vehicle, as well as the cost of labor. Generally, you can expect to pay between $200 and $500 for the replacement. The price can fluctuate based on the brand of the replacement part and the labor rates in your area.
A seat belt pretensioner is a device that automatically tightens the seat belt in the event of a collision. This helps to reduce the amount of slack in the seat belt, which can help to prevent injuries. The pretensioner works in conjunction with the airbag system to provide maximum protection during a crash.
You can find a wiring diagram for your 2006 Toyota Tundra in the vehicle's service manual or online. Online forums and communities dedicated to Toyota Tundra vehicles may also have wiring diagrams available. Websites that sell automotive repair information often provide access to wiring diagrams for a fee.
