How To Identify Calibration Errors in Compression And Tension Load Cells?

Views: 222     Author: Leah     Publish Time: 2025-01-14      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

Understanding Load Cells

>> Types of Load Cells

Common Calibration Errors

Identifying Calibration Errors

>> 1. Visual Inspection

>> 2. Check Zero Balance

>> 3. Apply Known Weights

>> 4. Analyze Output Data

>> 5. Perform Repeatability Tests

Best Practices for Calibrating Load Cells

Conclusion

FAQ

>> 1. What is the difference between compression and tension load cells?

>> 2. How often should I calibrate my load cell?

>> 3. What are common causes of calibration errors?

>> 4. How do I check if my load cell is properly calibrated?

>> 5. Can I use a single calibration procedure for both compression and tension modes?

Citations:

Calibration is a critical process in ensuring the accuracy and reliability of load cells, which are devices used to measure force or weight. Load cells can be classified into two main types: compression load cells, which measure pushing forces, and tension load cells, which measure pulling forces. Understanding how to identify calibration errors in these devices is essential for maintaining their performance and ensuring accurate measurements. This article will explore common calibration errors, methods for identifying them, and best practices for calibrating load cells in both compression and tension.

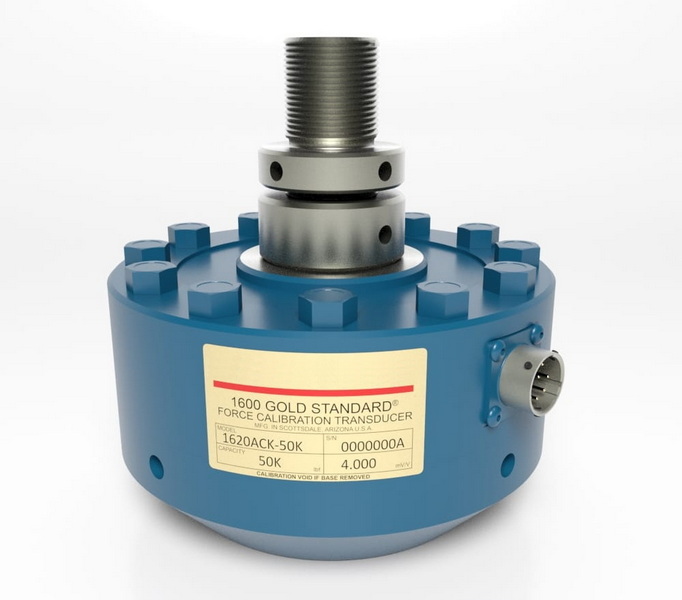

calibrating a load cell

Understanding Load Cells

Load cells operate based on the principle of converting force into an electrical signal. They contain strain gauges that measure the deformation caused by the applied load. The output signal is typically in millivolts, which must be calibrated to provide meaningful weight or force readings.

Types of Load Cells

Type Measurement Direction Key Characteristics
Compression Load Cell Measures pushing forces Unidirectional; typically placed beneath the load
Tension Load Cell Measures pulling forces Can measure both tension and compression; often S-shaped

Compression load cells are generally more straightforward to calibrate since they deal with unidirectional forces. In contrast, tension load cells can be more complex due to their ability to measure forces in both directions.

Common Calibration Errors

Calibration errors can arise from various factors, including:

- Misalignment: If the load cell is not properly aligned with the load application direction, it can lead to inaccurate readings.

- Temperature Variations: Changes in temperature can affect the material properties of the load cell and cause drift in readings.

- Mechanical Issues: Overloading or using improper adapters can cause physical damage to the load cell, affecting its calibration.

- Electrical Noise: Interference from nearby electronic devices can introduce noise into the measurement signal.

- Zero Balance Shift: If the zero point of the load cell shifts due to mechanical stress or environmental factors, it can lead to incorrect readings.

Identifying Calibration Errors

To effectively identify calibration errors in load cells, follow these steps:

1. Visual Inspection

Start with a thorough visual inspection of the load cell. Look for signs of physical damage, such as dents or cracks, which may indicate overload conditions. Ensure that all connections are secure and that there are no visible signs of wear on cables or connectors.

2. Check Zero Balance

Before applying any loads, check the zero balance of the load cell. This involves ensuring that the output reads zero when no load is applied. If there is a significant offset, recalibration may be necessary.

3. Apply Known Weights

Gradually apply known weights to the load cell and record the output signal at each step. This data will help you identify any discrepancies between expected and actual readings.

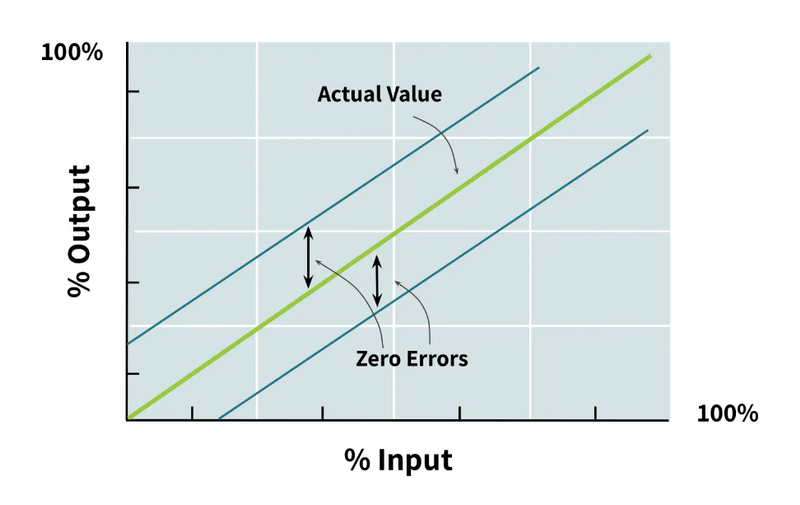

Load Cell Calibration Differences

4. Analyze Output Data

Plotting the output data against applied weights will help visualize any non-linearities or inconsistencies in measurement. A linear relationship should exist between applied weight and output signal; deviations may indicate calibration errors.

5. Perform Repeatability Tests

Conduct repeatability tests by applying the same known weight multiple times and recording the output each time. Significant variations in readings may suggest calibration issues.

Best Practices for Calibrating Load Cells

To ensure accurate calibration of compression and tension load cells, consider implementing the following best practices:

- Use Proper Adapters: Ensure that you use adapters that match those used during initial calibration to avoid discrepancies in measurements.

- Calibrate in a Controlled Environment: Conduct calibrations in a stable environment where temperature and humidity are controlled to minimize external influences.

- Regular Maintenance: Schedule regular maintenance checks on your load cells to ensure they remain within specified tolerances.

- Document Calibration Procedures: Keep detailed records of calibration procedures, including weights used, environmental conditions, and any adjustments made.

- Utilize Advanced Calibration Equipment: Use precision calibration equipment designed for specific types of load cells to enhance accuracy.

Conclusion

Identifying calibration errors in compression and tension load cells is crucial for maintaining their accuracy and reliability. By understanding common sources of error and implementing best practices for calibration, users can ensure that their measurements remain consistent over time. Regular inspections, proper alignment, and adherence to standardized calibration procedures will help mitigate potential issues and enhance overall measurement quality.

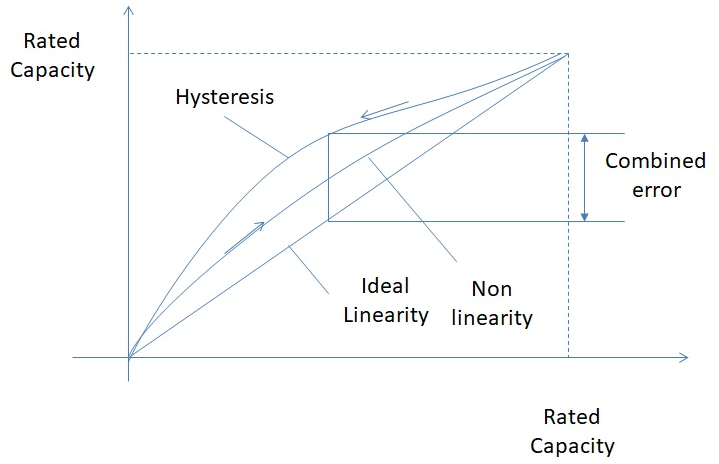

calibrating a load cell in compression vs tension

FAQ

1. What is the difference between compression and tension load cells?

Compression load cells measure pushing forces, while tension load cells measure pulling forces. Some tension load cells can also measure compression forces depending on their design.

2. How often should I calibrate my load cell?

It is recommended to calibrate your load cell at least once a year or whenever there are significant changes in environmental conditions or if you notice discrepancies in measurements.

3. What are common causes of calibration errors?

Common causes include misalignment during installation, temperature variations affecting material properties, mechanical issues such as overloads or using incorrect adapters, electrical noise interference, and shifts in zero balance.

4. How do I check if my load cell is properly calibrated?

You can check by applying known weights and comparing the output signal against expected values. Additionally, performing repeatability tests will help verify consistency in measurements.

5. Can I use a single calibration procedure for both compression and tension modes?

While some universal load cells allow for dual-mode operation, it is generally advisable to calibrate each mode separately to ensure accuracy across different loading conditions.
