Tension control is a critical aspect of various industrial processes, including textile manufacturing, cable production, and printing. Maintaining optimal tension ensures product quality, reduces waste, and enhances efficiency. One of the key tools in achieving precise tension control is the line tension sensor. This article will explore how line tension sensors can be used to improve tension control across different applications.

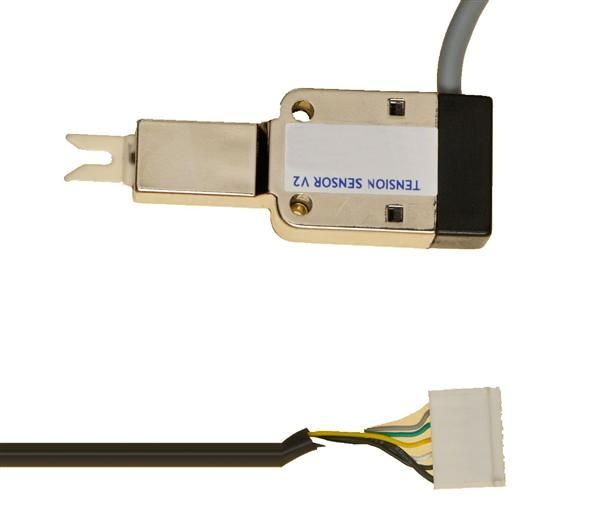

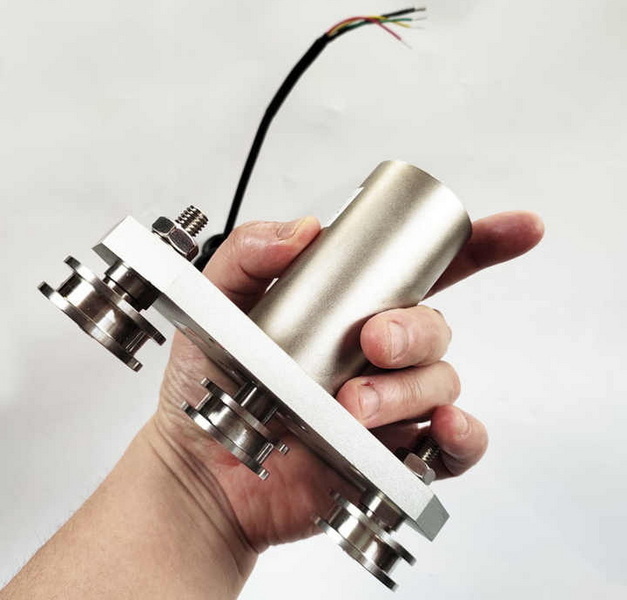

Line tension sensors are designed to measure the tension in materials such as wires, fibers, and webs. These sensors convert the mechanical force exerted by the material into an electrical signal, which can be used to adjust the tension in real-time. The accuracy and reliability of line tension sensors make them indispensable in industries where consistent tension is crucial.
1. Strain Gauge Sensors: These sensors use strain gauges to measure the deformation caused by tension. They are highly accurate and commonly used in applications requiring precise tension control[4][10].
2. Piezoelectric Sensors: These sensors detect changes in strain and are suitable for detecting ultrasonic vibrations. They offer high sensitivity and flexibility[15].
3. Load Cells: Load cells measure the force exerted by the material and provide real-time feedback, allowing for immediate adjustments[14].
Line tension sensors are applied in various industries:
- Textile Manufacturing: Ensures uniform fabric quality by maintaining consistent tension on fibers[3].
- Cable Manufacturing: Prevents damage to fibers and ensures the final product meets strength specifications[3].
- Printing Industry: Essential for maintaining proper web tension, which affects print quality[8].
- Packaging: Maintains the right tension on films and materials to prevent tearing[3].
To effectively use line tension sensors, proper installation and calibration are essential. Here are the steps involved:
1. Installation: Mount the sensor at a suitable location along the material path. Ensure it is securely fastened to withstand operational forces.
2. Calibration: Calibrate the sensor by setting a zero point (no tension) and a maximum tension value. This ensures accurate readings throughout the operation range[5].
Line tension sensors are typically integrated with control systems that adjust tension based on sensor feedback. This can be achieved through:
1. Closed-Loop Control: The system continuously monitors tension and adjusts it in real-time to maintain a setpoint[7][8].
2. Open-Loop Control: Uses pre-set torque values without real-time feedback, relying on precise motor control[2].
- Immediate Adjustments: Allows for real-time adjustments to maintain optimal tension levels, reducing downtime and defects[3].
- Consistent Tension: Ensures consistent product quality by maintaining precise tension levels throughout the process[3].
- Automated Systems: Automates tension control, optimizing workflow and reducing waste[3].
- Informed Decisions: Enables data logging and analysis to identify trends and improve processes over time[3].
- Reduced Waste: By minimizing defects and optimizing production, line tension sensors can lead to significant cost savings[3].
Calibration can be tricky as the zero point may change over time. This can be addressed by:
1. Software Adjustments: Implementing software that adjusts for changes in the zero point[5].
2. Regular Calibration: Performing calibration routines regularly to ensure accuracy[5].
Environmental factors like temperature and humidity can affect sensor accuracy. Solutions include:
1. Shielding: Protecting sensors from environmental influences[4].
2. Compensation Algorithms: Using algorithms to compensate for environmental effects[9].
Line tension sensors are crucial for maintaining precise tension control in various industrial applications. By integrating these sensors into control systems, manufacturers can improve product quality, enhance efficiency, and reduce costs. Proper installation, calibration, and integration with control systems are key to maximizing the benefits of line tension sensors.
Line tension sensors primarily include strain gauge sensors, piezoelectric sensors, and load cells. Each type has its unique advantages and applications.
Line tension sensors ensure consistent tension levels, which is crucial for maintaining uniform product quality. This reduces defects and enhances overall quality.
Closed-loop systems provide real-time feedback, allowing for immediate adjustments to maintain optimal tension. This enhances precision and reduces the need for manual intervention.
Environmental factors like temperature and humidity can impact sensor accuracy. Solutions include shielding and using compensation algorithms to adjust for these effects.
By reducing waste and improving product quality, line tension sensors can lead to significant cost savings over time. They also optimize production processes, enhancing overall efficiency.
