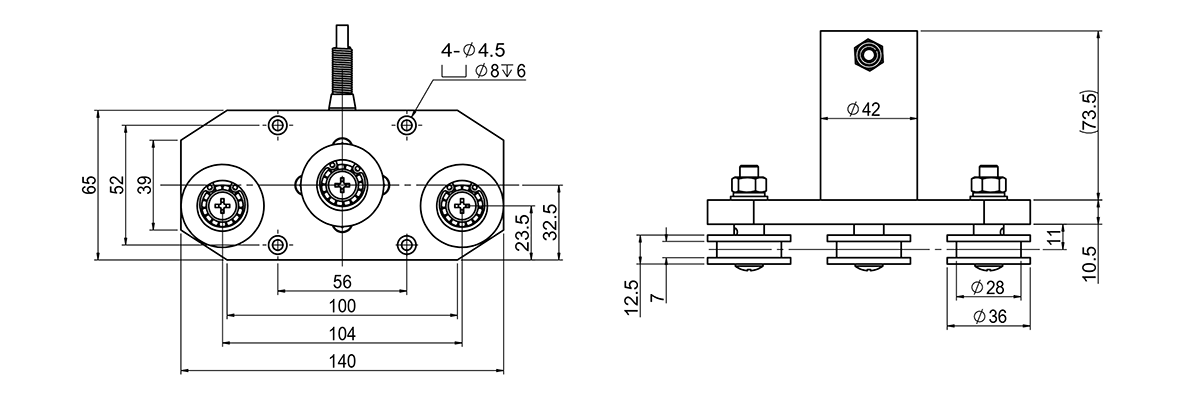

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

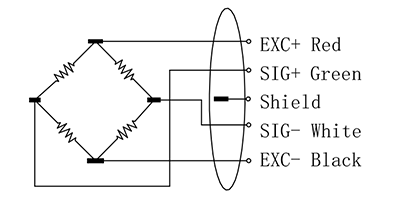

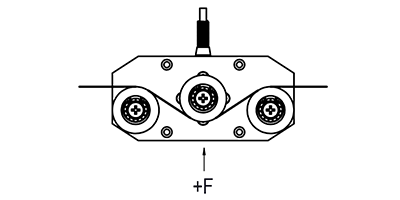

| Load Direction | Wiring |
 |
 |
| Specifications |
Specification |
Technique |
Capacity |
5~50kg |
Sensitivity |
1.5±2.0mV/V |
Zero balance |
±0.04mV/V |
Creep(30min) |
≤0.03%F.S. |
Non-linearity |
≤0.03%F.S. |
Hysteresis |
≤0.03%F.S. |
Repeatability |
≤0.03%F.S. |
Input impedance |
350±50Ω |
Output impedance |
350±10Ω |
Temp. effect on output |
0.1%F.S./10℃ |
Temp. effect on zero |
0.1%F.S./10℃ |
Insulation resistance |
≥2000MΩ/100V(DC) |
Recommended excitation |
5~10V |
Maximum excitation |
15V |
Operating temp. range |
-20~+60℃ |
Safe overload |
150%F.S. |
Ultimate overload |
500%F.S. |
| Cable Size | Φ5mmX2000mm |
| Material | Steel/Aluminium Alloy |
| Function Feature |
▶ High accuracy: able to accurately measure the tension of ropes or wire ropes in multiple pulley systems, providing accurate data.
▶ Strong stability: the sensor structure is designed to be stable and able to maintain accurate measurements for a long time.
▶ Good durability: Adopting wear-resistant materials and corrosion-resistant design, it has a long service life.
| Delivery Configurations |
