In various industries, ensuring the proper tension in cables is crucial for safety, efficiency, and optimal performance. Cable tension sensors play a vital role in monitoring and maintaining this tension, providing real-time data that helps prevent equipment failure and ensures structural integrity[4]. This article provides a comprehensive guide on how to install a cable tension sensor correctly, covering essential steps, considerations, and best practices.

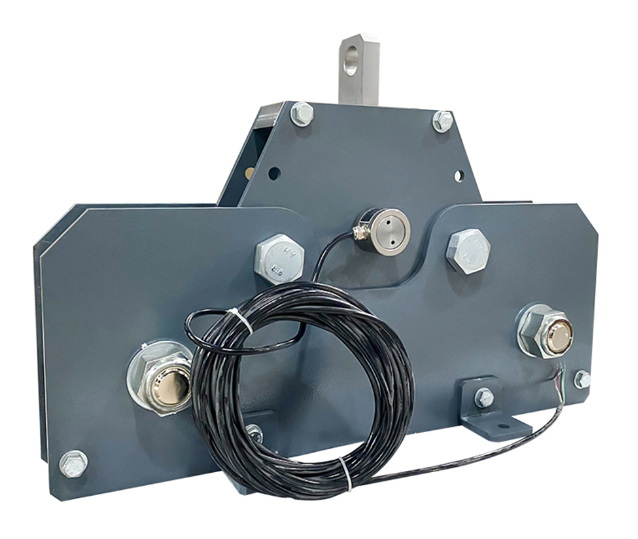

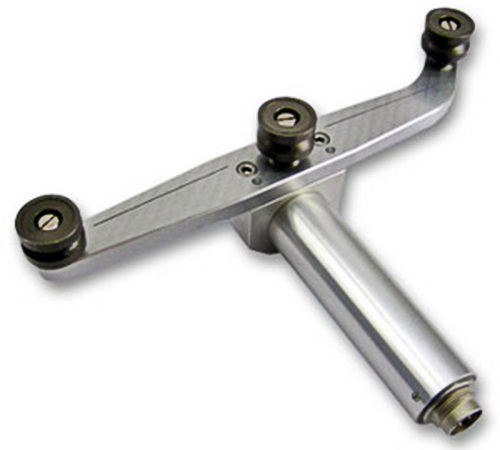

A cable tension sensor, also known as a wire rope tension load cell[7], is a device designed to measure the tensile force in cables, ropes, and wires[3][4]. These sensors convert mechanical stress into an electrical signal, allowing for accurate monitoring and control of tension in various applications[4]. The data provided by these sensors is essential for preventing equipment failure and enhancing operational safety[4].
Proper installation of a cable tension sensor is critical for several reasons:
- Accuracy: Correct installation ensures that the sensor provides accurate readings, which are essential for making informed decisions about cable tension[3].
- Reliability: A properly installed sensor is more likely to function reliably over an extended period, reducing the need for frequent maintenance and replacements[3].
- Safety: Accurate tension measurements help prevent cable failure, which can lead to accidents and injuries[4].
- Performance: Optimal cable tension improves the performance and lifespan of equipment and structures that rely on cables for support or operation[2].
Understanding the different types of cable tension sensors is crucial for selecting the right one for your specific application[3]. Here are some common types:
- S-Type Load Cells: Ideal for suspended applications, these load cells can measure both tension and compression forces[3].
- Tension Links: Designed specifically for high-capacity measurements in overhead crane systems[3].
- Canister Load Cells: Robust devices suitable for harsh environments where reliability is critical[3].
- Pancake Load Cells: Low-profile designs ideal for applications with limited space while maintaining high accuracy[3].
- CableBull: The CableBull is designed for mobile tension measurement in closed force systems[1].
Before you begin the installation process, it is essential to gather the necessary tools, understand the specific requirements of your application, and ensure that the sensor is compatible with your system.
Having the right tools on hand will make the installation process smoother and more efficient. Here is a list of essential tools:
- Wrench Set: For tightening and loosening bolts and nuts.
- Screwdriver Set: Including both flathead and Phillips head screwdrivers.
- Torque Wrench: To ensure bolts are tightened to the correct torque specifications.
- Multimeter: For testing electrical connections and signal quality.
- Calibration Weights: To calibrate the sensor after installation.
- Level: To ensure proper alignment of the sensor.
- Measuring Tape: For accurate measurements of cable length and tension.
- Personal Protective Equipment (PPE): Including gloves, safety glasses, and a hard hat.
Each application has unique requirements that must be considered when installing a cable tension sensor[2]. Here are some key factors to consider:
- Tension Range: Determine the maximum and minimum tension levels that the sensor will need to measure.
- Environmental Conditions: Consider the temperature, humidity, and exposure to chemicals or other corrosive substances[2].
- Space Constraints: Ensure that the sensor fits within the available space without interfering with other components.
- Integration with Control Systems: Verify that the sensor is compatible with your existing control systems and communication protocols[2].
Before installation, verify that the cable tension sensor is compatible with your system. Check the following:
- Signal Output: Ensure that the sensor's output signal (e.g., voltage, current, digital) is compatible with your control system.
- Power Supply: Verify that the sensor's power requirements match your system's power supply.
- Mounting Options: Confirm that the sensor's mounting options are suitable for your application[2].
- Communication Protocols: Ensure that the sensor supports the communication protocols used by your control system (e.g., Modbus, Profibus, EtherNet/IP)[2].
Follow these steps to install a cable tension sensor correctly:
Before starting the installation, disconnect the power supply to the system and secure the cable to prevent movement. This ensures safety and prevents damage to the sensor.
- Disconnect Power: Turn off and disconnect the power supply to the equipment or system where the cable tension sensor will be installed.
- Secure the Cable: Use clamps, supports, or other appropriate methods to secure the cable in place. This prevents the cable from moving during the installation process.
If you are replacing an existing sensor or installing a sensor in an existing system, you will need to remove the existing cable connection[6].
- Identify the Connection Points: Locate the points where the cable is connected to the equipment or structure.
- Loosen and Remove Fasteners: Use the appropriate tools to loosen and remove any bolts, nuts, or screws that secure the cable.
- Carefully Disconnect the Cable: Gently disconnect the cable from the connection points, taking care not to damage the cable or any surrounding components.
Mount the cable tension sensor in the appropriate location, ensuring proper alignment and stability[2].
- Select the Mounting Location: Choose a location that provides easy access for maintenance and calibration, and that meets the environmental requirements of the sensor.
- Align the Sensor: Use a level to ensure that the sensor is properly aligned. Misalignment can affect the accuracy of the tension measurements.
- Secure the Sensor: Use bolts, screws, or other appropriate fasteners to secure the sensor to the mounting surface. Tighten the fasteners to the torque specifications recommended by the manufacturer.
Connect the cable to the cable tension sensor, ensuring a secure and reliable connection.
- Attach the Cable to the Sensor: Use the appropriate connectors or fittings to attach the cable to the sensor. Ensure that the connection is secure and that the cable is properly seated in the connector.
- Tighten the Connections: Tighten all connections to the torque specifications recommended by the manufacturer.
- Inspect the Connection: Visually inspect the connection to ensure that there are no loose ends, gaps, or other signs of a faulty connection.

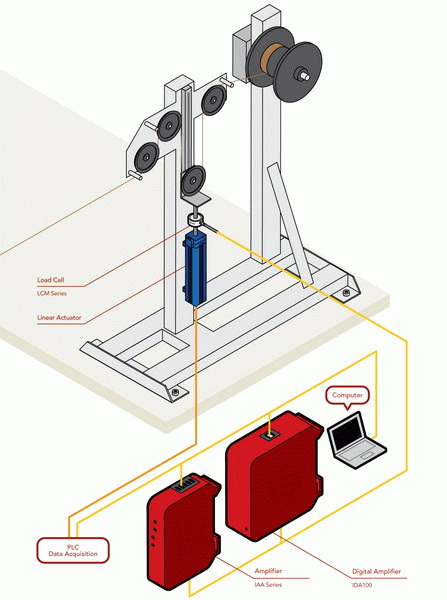

Make the necessary electrical connections to power the sensor and transmit the tension data to your control system[2].
- Identify the Wiring Diagram: Consult the sensor's wiring diagram to identify the correct terminals for power, ground, and signal output.
- Connect Power and Ground Wires: Connect the power and ground wires to the appropriate terminals, ensuring that the polarity is correct.
-- Connect Signal Wires: Connect the signal wires to the appropriate terminals on your control system.
- Secure the Connections: Use wire connectors or terminal blocks to secure the electrical connections.
Calibrate the cable tension sensor to ensure accurate tension measurements[2].
- Prepare for Calibration: Ensure that the sensor is properly mounted and that all electrical connections are secure.
- Apply Known Weights: Apply a series of known weights to the cable, covering the full tension range of the sensor.
- Record Sensor Readings: Record the sensor readings for each weight.
- Adjust Calibration Settings: Use the sensor's calibration settings to adjust the output signal so that it accurately reflects the applied tension.
- Verify Calibration: After calibration, verify the accuracy of the sensor by applying known weights and comparing the sensor readings to the actual weights.
Test the system to ensure that the cable tension sensor is functioning correctly and that the tension data is being transmitted to your control system.
- Power On the System: Turn on the power supply to the system.
- Monitor Tension Data: Monitor the tension data being transmitted to your control system. Verify that the data is accurate and consistent.
- Check for Alarms: Check for any alarms or error messages that may indicate a problem with the sensor or the system.
- Adjust Tension as Needed: Adjust the cable tension as needed to ensure that it is within the specified range.
Follow these best practices to ensure the long-term performance and reliability of your cable tension sensor:
- Regular Calibration: Calibrate the sensor regularly to maintain accuracy[3]. The calibration interval will depend on the specific application and environmental conditions.
- Visual Inspections: Conduct regular visual inspections of the sensor, cable, and connections to identify any signs of wear, damage, or corrosion.
- Cleaning: Keep the sensor clean and free of dirt, dust, and other contaminants.
- Environmental Protection: Protect the sensor from extreme temperatures, humidity, and exposure to chemicals or other corrosive substances[2].
- Proper Mounting: Ensure that the sensor is properly mounted and aligned, and that all fasteners are tightened to the correct torque specifications[2].
- Data Monitoring: Continuously monitor the tension data being transmitted by the sensor to identify any trends or anomalies that may indicate a problem.
Setting up tension transducers, industrial controls, and automation sensors can be tricky[2]. Here are some common challenges and solutions:
- Challenge: Sensor is not providing accurate readings.
- Solution: Check the sensor's calibration, mounting, and electrical connections[2]. Ensure that the sensor is properly aligned and that all fasteners are tightened to the correct torque specifications.
- Challenge: Sensor is failing prematurely.
- Solution: Protect the sensor from extreme temperatures, humidity, and exposure to chemicals or other corrosive substances[2]. Ensure that the sensor is properly mounted and that all electrical connections are secure.
- Challenge: Sensor is not communicating with the control system.
- Solution: Check the sensor's wiring diagram and verify that all electrical connections are correct[2]. Ensure that the sensor supports the communication protocols used by your control system.
- Challenge: Environmental interference or noise problems.
- Solution: Adjust the sensor's calibration for accurate readings[2].
Installing a cable tension sensor correctly is essential for ensuring the safety, reliability, and performance of various industrial applications. By following the steps outlined in this guide, you can ensure that your cable tension sensor provides accurate and consistent tension measurements, helping you prevent equipment failure and optimize your operations. Remember to gather the necessary tools, understand your application requirements, ensure sensor compatibility, and follow best practices for long-term performance. With proper installation and maintenance, your cable tension sensor will provide years of reliable service.
A cable tension sensor measures the tensile force in cables, ropes, and wires. It converts mechanical stress into an electrical signal, providing real-time data for monitoring and controlling tension in various applications[4].
Consider the tension range, environmental conditions, space constraints, and integration requirements with your control systems[2]. Different types of sensors, such as S-Type load cells, tension links, and canister load cells, are suited for different applications[3].
Essential tools include a wrench set, screwdriver set, torque wrench, multimeter, calibration weights, level, measuring tape, and personal protective equipment (PPE).
The calibration interval depends on the specific application and environmental conditions. Regular calibration ensures long-term accuracy and reliability[3].
Common issues include inaccurate readings, premature sensor failure, and communication problems with the control system. Solutions involve checking calibration, mounting, electrical connections, and protecting the sensor from harsh environmental conditions[2].
