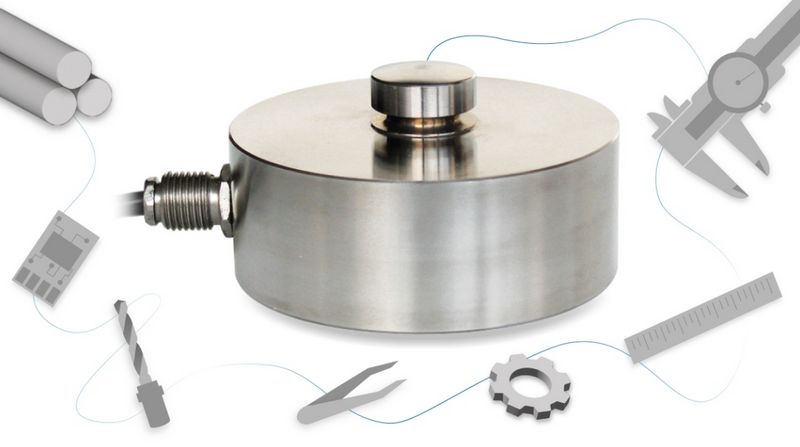

Tension compression load cells with gland heads are essential instruments used in various industrial applications to measure force or weight by converting mechanical force into an electrical signal. Proper installation and calibration of these devices are crucial for ensuring accurate measurements and optimal performance. This guide will provide a comprehensive overview of the steps involved in installing and calibrating a tension compression load cell with a gland head, along with best practices, troubleshooting tips, and frequently asked questions.

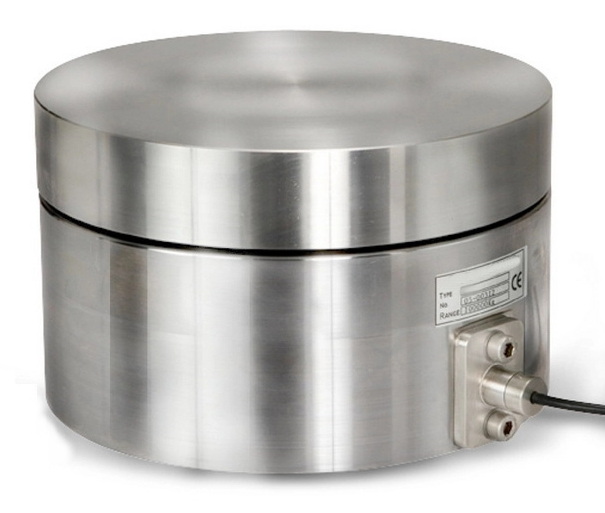

Tension compression load cells are designed to measure both tensile (pulling) and compressive (pushing) forces. They are widely used in applications such as:
- Weighing systems
- Structural testing
- Material testing
- Industrial machinery
These load cells typically feature a gland head that allows for easy integration into existing systems while providing robust performance.
The accuracy and reliability of a tension compression load cell depend significantly on its installation. Proper alignment, securing, and wiring are vital to prevent measurement errors.
- Alignment: Ensure that the load cell is aligned with the load path to avoid side loads that can affect accuracy.
- Mounting Surface Preparation: The surface should be flat, rigid, and capable of supporting the load cell without deformation.
- Use of Appropriate Hardware: Select suitable bolts, nuts, and washers to secure the load cell effectively.
1. Positioning: Place the load cell in its designated location, ensuring it is aligned with the anticipated load path.
2. Securing: Use appropriate bolts or fasteners to secure the load cell in place. Follow the manufacturer's torque specifications to avoid over-tightening, which can damage the load cell.
3. Wiring: Connect the load cell to signal conditioning equipment or display units according to the manufacturer's instructions. Ensure that all connections are secure and free from damage.
4. Calibration: After installation, calibrate the load cell by applying known weights and adjusting the output accordingly.
5. Testing: Conduct tests by applying known loads to verify readings and make necessary adjustments.

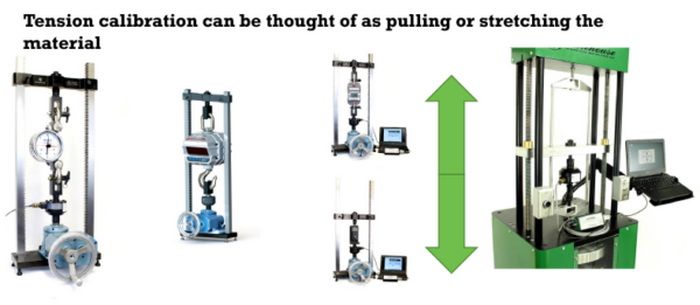

Calibration is essential for ensuring that the output of the load cell accurately reflects the applied load. Here's a step-by-step guide on how to calibrate a tension compression load cell:
- Calibration weights
- Data acquisition system
- Computer with calibration software
1. Zeroing: Before applying any loads, zero the load cell to eliminate offset errors.
2. Apply Known Weights: Gradually apply known weights to the load cell, starting from zero and moving up to its maximum capacity.
3. Record Output: For each weight applied, record the output signal from the load cell.
4. Adjust Calibration: If discrepancies between expected and actual outputs occur, adjust the calibration settings accordingly.
5. Repeat Testing: Repeat the process multiple times to ensure accuracy and consistency.
- Ensure proper alignment during installation to minimize measurement errors.
- Perform calibrations in a controlled environment to reduce temperature and humidity effects.
- Schedule regular maintenance checks to maintain accuracy over time.
During installation or calibration, you may encounter issues such as:
- Erratic Readings: Check for loose connections or misalignment.
- Inconsistent Outputs: Ensure that calibration weights are accurate and properly applied.
- Drift in Readings: Regularly check and recalibrate if necessary due to environmental changes.
Installing and calibrating a tension compression load cell with a gland head is crucial for achieving accurate measurements in various applications. By following proper procedures for installation, calibration, and maintenance, users can ensure optimal performance from their load cells over time.
A tension compression load cell is a device that measures both tensile (pulling) and compressive (pushing) forces by converting mechanical energy into an electrical signal.
Calibration frequency depends on usage; however, it is recommended to calibrate at least once a year or whenever significant changes in environmental conditions occur.
Yes, many tension compression load cells are designed to measure both types of forces effectively.
Check all connections for looseness or damage, ensure proper alignment with the loading path, and recalibrate if necessary.
Yes, factors such as temperature fluctuations, humidity levels, and potential vibrations can affect performance; thus, it is essential to install them in controlled environments when possible.
