How To Install And Calibrate An MB25A Tension Sensor?

Views: 222     Author: Leah     Publish Time: 2025-03-27      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Content Menu

Pre-Installation Requirements

>> Component Verification

>> Environmental Preparation

>> Safety Protocols

Mechanical Installation Process

>> Stage 1: Base Alignment

>> Stage 2: Roller Integration

Electrical System Configuration

>> Wiring Best Practices

>> Signal Optimization

>> Controller Setup

Advanced Calibration Methodology

>> Dead Weight Calibration

>> Live Web Calibration

>> Software Configuration Steps

>> Performance Validation Tests

Operational Maintenance

>> Daily Checks

>> Monthly Maintenance

>> Annual Service

Troubleshooting Guide

>> Issue 1: Unstable Readings

>> Issue 2: Negative Tension Values

>> Issue 3: Overload Errors

Conclusion

FAQ

>> 1. How does temperature affect MB25A calibration?

>> 2. Can I install two MB25A sensors in parallel?

>> 3. What causes signal drift over time?

>> 4. How to verify proper grounding?

>> 5. Is the MB25A suitable for metal webs?

Citations:

The MB25A tension sensor delivers ±0.25% linearity for critical web tension control in printing, laminating, and converting operations. This guide incorporates advanced calibration protocols and field-proven installation techniques to maximize sensor performance.

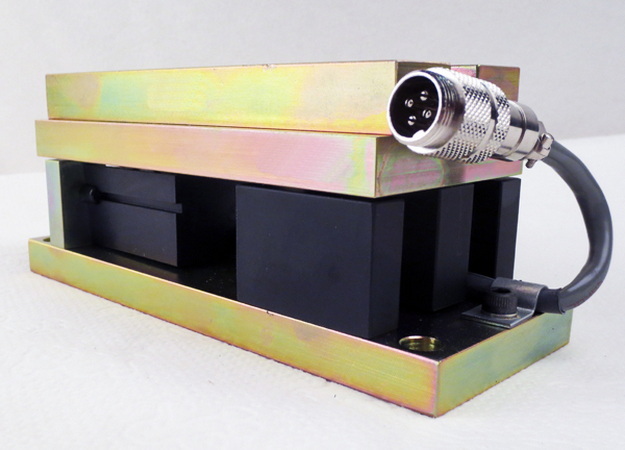

MB25A Load Cell

Pre-Installation Requirements

Component Verification

Confirm the MB25A tension sensor kit includes:

- Stainless steel load cells (2) with IP65-rated housing

- Integrated roller shaft (1.5"/38mm diameter)

- Calibration certificate traceable to NIST standards

Environmental Preparation

1. Clean mounting surfaces with isopropyl alcohol to remove oil/grease

2. Verify ambient temperature stability (±5°F/3°C per hour max variation)

3. Install surge protection on power lines if located near VFDs

Safety Protocols

- Lock out/tag out drive systems before installation

- Wear cut-resistant gloves when handling sensor edges

Mechanical Installation Process

Stage 1: Base Alignment

1. Mount the MB25A tension sensor using M12×1.75 bolts torqued to 47 N·m

2. Measure parallelism between sensor base and machine frame:

- Vertical tolerance: ≤0.003"/0.076mm

- Horizontal tolerance: ≤0.005"/0.127mm

Thermal Compensation

For installations with >50°F (28°C) temperature swings:

- Apply 0.015" (0.38mm) brass shims between dissimilar metals

- Leave 0.04" (1mm) expansion gap at floating bearing end

Stage 2: Roller Integration

1. Slide the pre-loaded roller onto the MB25A tension sensor shaft

2. Secure shaft collars 2" (50mm) from each bearing block

3. Check rotational resistance:

- Acceptable: 0.5-1.5 lb-in (0.06-0.17 N·m)

- Excessive drag indicates misalignment

Critical Torque Values

Fastener Torque Spec
Bearing Housing Bolts 35 N·m
Shaft Collar Screws 20 N·m
Sensor Mounting Bolts 47 N·m

Electrical System Configuration

Wiring Best Practices

1. Route cables separately from power lines (minimum 12"/300mm spacing)

2. Ground shield wires at controller end only

3. Use star washers for reliable electrical contact

Signal Optimization

- Maintain excitation voltage between 5.8-6.2 VDC

- For long cable runs (>50ft/15m):

- Install 120Ω terminating resistor at controller

- Use 22AWG twisted pair cables

Controller Setup

1. Configure input type as "Millivolt per Volt" (mV/V)

2. Set filter frequency based on web speed:

Web Speed Filter Setting
<100 fpm 5 Hz
100-500 fpm 10 Hz
>500 fpm 25 Hz

MB25A Sensor Troubleshooting

Advanced Calibration Methodology

Dead Weight Calibration

1. Hang certified weights from calibration arm

2. Record output at 25%, 50%, 75%, and 100% capacity

3. Calculate linear regression coefficient (R⊃2; ≥0.9995 required)

Live Web Calibration

1. Run known tension reference material through system

2. Compare MB25A tension sensor readings to reference values

3. Adjust span potentiometer if variance exceeds ±1%

Software Configuration Steps

1. Access calibration menu on Nexen TC-820 controller:

Menu Path: Setup > Sensors > Channel 1 > Calibrate

2. Enter calibration factors from sensor nameplate

3. Perform zero offset compensation with roller disengaged

Performance Validation Tests

Test Procedure Pass Criteria
Zero Return Remove load, wait 60s ≤0.1% FS drift
Step Response Apply 50% FS load rapidly Settling time <2s
Temperature Drift Cycle between 40-100°F ≤0.02% FS/°F

Operational Maintenance

Daily Checks

- Inspect for web debris accumulation

- Verify cooling fins remain unobstructed

Monthly Maintenance

- Re-torque mounting hardware to spec

- Clean slip rings with electrical contact cleaner

Annual Service

- Replace worn shaft collars

- Perform full NIST-traceable recalibration

Troubleshooting Guide

Issue 1: Unstable Readings

- Probable Causes:

1. Loose shaft couplings

2. EMI interference from VFDs

3. Worn pillow block bearings

Issue 2: Negative Tension Values

- Solutions:

1. Swap signal+/signal- wires at controller

2. Verify proper web wrap direction

Issue 3: Overload Errors

- Diagnostic Steps:

1. Check for seized roller bearings

2. Confirm web tension <220 lb (100 kg) capacity

Conclusion

Proper implementation of the MB25A tension sensor requires meticulous attention to mechanical alignment, electrical integrity, and calibration rigor. By following these enhanced installation procedures and maintenance protocols, operators can maintain measurement accuracy within ±1% of full scale across the sensor's 10-million cycle service life.

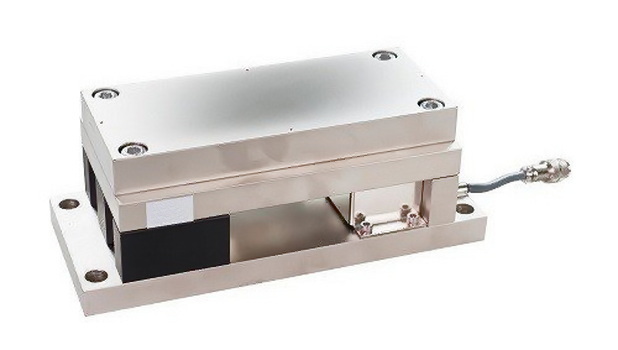

MB25A Tension Sensor

FAQ

1. How does temperature affect MB25A calibration?

The sensor features automatic temperature compensation from 32-122°F (0-50°C). For extreme environments, perform live web calibration at operating temperature.

2. Can I install two MB25A sensors in parallel?

Yes, for wide web applications. Synchronize controllers using Nexen's CANbus interface module (PN: NX-CAN-2).

3. What causes signal drift over time?

Typically worn slip rings or cable insulation breakdown. Replace cables every 3 years in high-humidity environments.

4. How to verify proper grounding?

Measure resistance between sensor body and ground point: ≤1Ω acceptable.

5. Is the MB25A suitable for metal webs?

Yes, but reduce maximum tension by 15% when measuring high-stiffness materials like steel foil.
