How To Install And Maintain A Tension Compression Load Cell?

Content Menu

Understanding Load Cells

Importance of Proper Installation

>> 1. Alignment

>> 2. Mounting Surface Preparation

>> 3. Use of Appropriate Hardware

>> 4. Torque Specifications

Installation Steps for Tension Compression Load Cells

Maintenance Tips

Troubleshooting Common Issues

Conclusion

FAQ

>> 1. What is a low profile load cell?

>> 2. How often should I calibrate my tension compression load cell?

>> 3. Can I use a single load cell for both tension and compression?

>> 4. What should I do if my load cell shows erratic readings?

>> 5. Are there specific environmental conditions I need to consider when using a tension compression load cell?

Citations:

Tension and compression load cells are vital components in various industrial applications, providing precise measurements for weighing, force measurement, and monitoring systems. Proper installation and maintenance of these load cells ensure their accuracy and reliability over time. This comprehensive guide will cover the installation process, maintenance tips, and troubleshooting techniques to help you maximize the performance of your tension compression load cell.

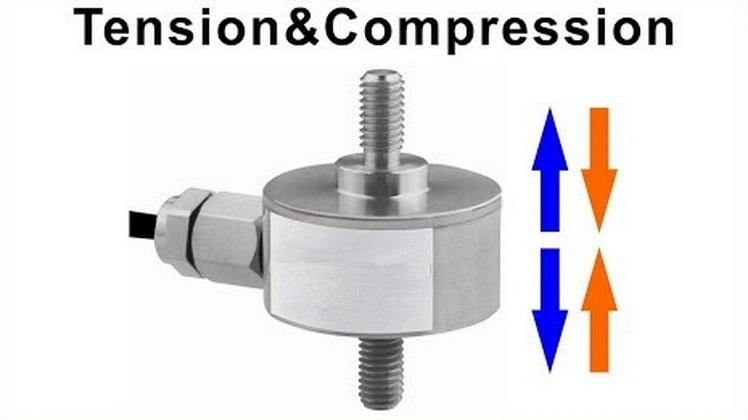

tension compression load cell

Understanding Load Cells

Load cells are transducers that convert mechanical force into an electrical signal. They typically consist of a metal body that deforms under load, with strain gauges bonded to this body to measure the deformation. The most common types of load cells include:

- Compression Load Cells: Designed to measure pushing forces.

- Tension Load Cells: Primarily used for measuring pulling forces.

- Universal Load Cells: Capable of measuring both tension and compression forces.

Importance of Proper Installation

Proper installation is crucial for ensuring that a load cell provides stable readings and accurate measurements. Here are some key considerations for installing a tension compression load cell:

1. Alignment

Ensure that the load cell is aligned with the load path. Misalignment can lead to inaccurate readings and potential damage to the load cell.

2. Mounting Surface Preparation

The mounting surfaces should be clean, flat, and aligned. Any irregularities can affect the performance of the load cell.

3. Use of Appropriate Hardware

Utilize proper hardware (thread sizes, jam nuts, and swivels) to connect the load to the load cell. This helps maintain a single load path through the load axis of the cell.

4. Torque Specifications

Follow the manufacturer's guidelines for torque specifications when securing threaded connections. Over-tightening can damage the load cell.

Installation Steps for Tension Compression Load Cells

1. Positioning: Place the load cell in its designated location, ensuring it is aligned with the load path.

2. Securing: Use appropriate bolts or fasteners to secure the load cell in place.

3. Wiring: Connect the load cell to signal conditioning equipment or display units as per manufacturer instructions.

4. Calibration: After installation, calibrate the load cell by applying known weights and adjusting the output accordingly.

5. Testing: Conduct tests by applying known loads to verify readings and make necessary adjustments.

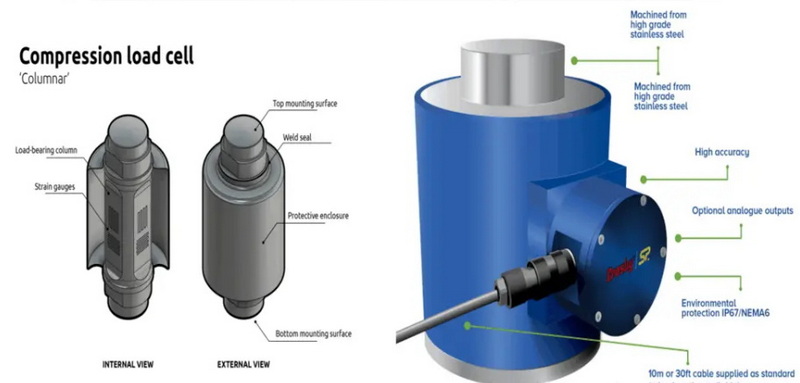

compression load cell

Maintenance Tips

Regular maintenance is essential to ensure longevity and accuracy in tension compression load cells. Here are some best practices:

- Routine Inspections: Regularly inspect the load cell for signs of wear, damage, or corrosion.

- Calibration: Periodically calibrate the load cell to maintain accuracy, especially in critical applications.

- Cleaning: Keep the load cell clean and free from debris using appropriate cleaning agents that do not damage its materials.

- Environmental Protection: If exposed to harsh conditions, consider using protective covers or enclosures.

Troubleshooting Common Issues

Despite proper installation and maintenance, issues may arise with tension compression load cells. Here are some common problems and their solutions:

1. Inconsistent Readings

- Check for loose connections in wiring.

- Ensure proper calibration.

2. Overloading

- Verify that applied loads do not exceed the rated capacity of the load cell.

- Upgrade to a higher capacity model if necessary.

3. Drift in Readings

- Recalibrate after significant temperature changes or mechanical stress.

- Use temperature compensation features if available.

4. Physical Damage

- Inspect for any signs of physical damage.

- Replace damaged components immediately for safety.

Conclusion

Installing and maintaining a tension compression load cell requires careful attention to detail and adherence to best practices. By following this guide, you can ensure that your load cells operate accurately and reliably over time. Regular inspections, calibrations, and proper environmental protections will help extend their lifespan and maintain performance standards across various applications.

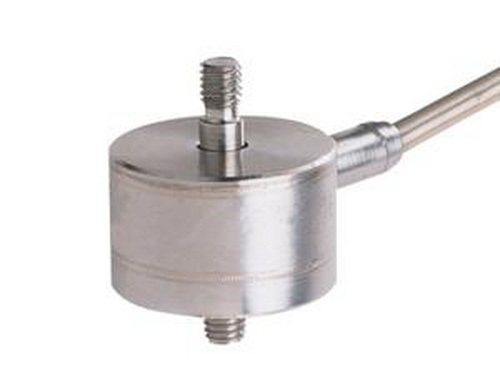

Compression Tension Sensor (2)

FAQ

1. What is a low profile load cell?

A low profile load cell is designed with a compact structure suitable for applications with height restrictions or limited space, providing high accuracy in both static and dynamic measurements.

2. How often should I calibrate my tension compression load cell?

Calibration frequency depends on usage; critical applications may require annual calibration while less critical ones may need it every few years.

3. Can I use a single load cell for both tension and compression?

Yes, universal or dual-mode load cells are designed specifically for measuring both tension and compression forces effectively.

4. What should I do if my load cell shows erratic readings?

Inspect wiring connections for looseness, recalibrate if necessary, and check for environmental factors like temperature fluctuations that may affect performance.

5. Are there specific environmental conditions I need to consider when using a tension compression load cell?

Yes, protect your load cells from moisture, extreme temperatures, dust, or chemicals that could lead to corrosion or inaccurate readings.
