Interfacing a 100kg tension load cell with an Arduino is a straightforward process that allows you to measure weight or force accurately. In this guide, we will walk through the necessary components, wiring, coding, and calibration steps required to set up your load cell with an Arduino.
A load cell is a type of transducer that converts force into an electrical signal. The most common type used in weighing applications is the strain gauge load cell, which consists of a metal structure with strain gauges attached. When a load is applied, the structure deforms slightly, causing a change in resistance in the strain gauges. This change is then converted into an electrical signal that can be read by a microcontroller like Arduino.
To interface a 100kg tension load cell with an Arduino, you will need the following components:
- 100kg Load Cell: This is the sensor that measures the tension.
- HX711 Amplifier Module: This module amplifies the small signal from the load cell.
- Arduino Board: Any model such as Arduino Uno or Nano will work.
- Breadboard and Jumper Wires: For making connections.
- Power Supply: Typically 5V for the HX711 and Arduino.
Before wiring, it's essential to understand the typical color coding of the wires from a load cell:
- Red Wire: Excitation (+)
- Black Wire: Excitation (-)
- White Wire: Signal (+)
- Green Wire: Signal (-)

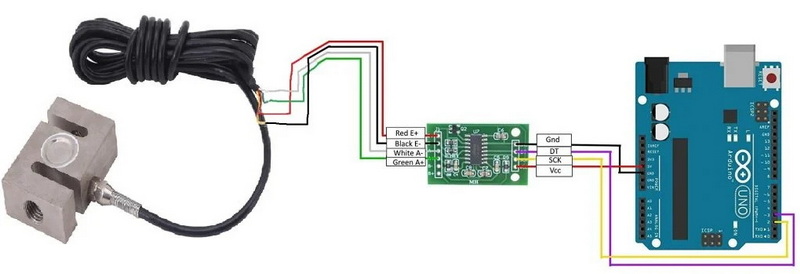

1. Connect the red wire of the load cell to the E+ terminal on the HX711 module.
2. Connect the black wire of the load cell to the E- terminal on the HX711 module.
3. Connect the white wire of the load cell to the A+ terminal on the HX711 module.
4. Connect the green wire of the load cell to the A- terminal on the HX711 module.

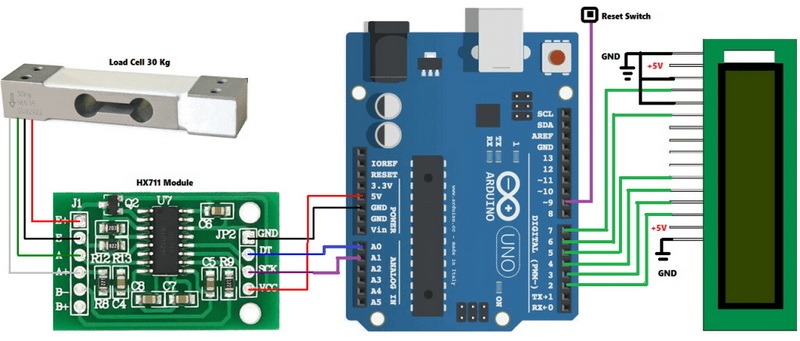

1. Connect VCC pin of HX711 to 5V on Arduino.
2. Connect GND pin of HX711 to GND on Arduino.
3. Connect DT pin of HX711 to digital pin 2 on Arduino.
4. Connect SCK pin of HX711 to digital pin 3 on Arduino.
To read data from your load cell, you need to write a simple program using an appropriate library for HX711. First, install the HX711 library from your Arduino IDE Library Manager.
Here's a basic code snippet:
#include "HX711.h"
HX711 scale;
const int LOADCELL_DOUT_PIN = 2; // Data pin
const int LOADCELL_SCK_PIN = 3; // Clock pin
void setup() {
Serial.begin(9600);
scale.begin(LOADCELL_DOUT_PIN, LOADCELL_SCK_PIN);
scale.set_scale(); // Set scale factor
scale.tare(); // Reset scale to 0
}
void loop() {
Serial.print("Weight: ");
Serial.print(scale.get_units(10), 1); // Average over 10 readings
Serial.println(" kg");
delay(1000);
}
Calibration is crucial for accurate weight measurements. To calibrate your load cell:
1. Place a known weight on the load cell (e.g., 1kg).
2. Adjust your calibration factor in code until you get accurate readings.
You can set your calibration factor as follows:
float calibration_factor = -7050; // Example value; adjust based on your calibration
scale.set_scale(calibration_factor);

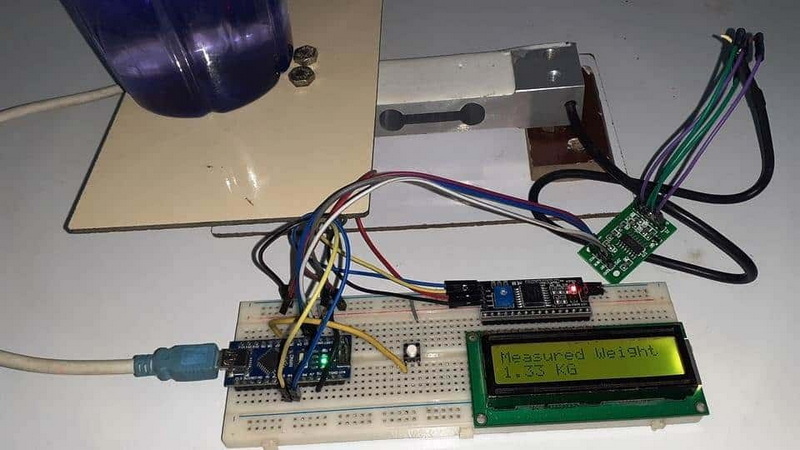

Once everything is connected and calibrated:
1. Upload your code to Arduino.
2. Open Serial Monitor in your IDE (set baud rate to 9600).
3. Place weights on your load cell and observe readings.
If you encounter issues while interfacing your 100kg tension load cell, consider these troubleshooting tips:
- Check Connections: Ensure all wires are securely connected according to wiring instructions.
- Power Supply: Make sure that both Arduino and HX711 are powered correctly.
- Calibration Factor: If readings are inaccurate, recheck your calibration factor and adjust accordingly.
- Noise and Fluctuations: Ensure stable power supply and proper grounding to minimize noise.
Interfacing a 100kg tension load cell with an Arduino provides an excellent opportunity for creating precise weight measurement systems. By following this guide, you can successfully set up your project and begin measuring weights accurately.
A load cell is a transducer that converts force or weight into an electrical signal, commonly used in weighing scales.
To calibrate, apply a known weight and adjust your calibration factor in code until readings match expected values.
Yes, but you will need separate HX711 modules for each load cell as each module can handle only one at a time.
Load cells are used in various applications such as weighing scales, industrial automation, force measurement devices, and more.
Regularly calibrate your load cell, check for mechanical stability, and minimize electrical noise by using proper grounding techniques.
