Selecting the appropriate Omega tension load cell for your project is crucial for ensuring accurate measurements and optimal performance. This comprehensive guide will walk you through the essential considerations, types of load cells, installation processes, and maintenance tips, all while emphasizing the importance of choosing the right Omega tension load cell.
A load cell is a transducer that converts mechanical force into an electrical signal. Among various types of load cells, tension load cells are specifically designed to measure pulling forces. These devices are widely used in applications ranging from industrial weighing to research laboratories.
Load cells operate on the principle of strain gauges, which deform under applied loads. The deformation changes the electrical resistance of the strain gauge, which can be measured and converted into a weight or force reading. This technology ensures high accuracy and reliability in measurements.
When selecting an Omega tension load cell, it's essential to understand the different types available:

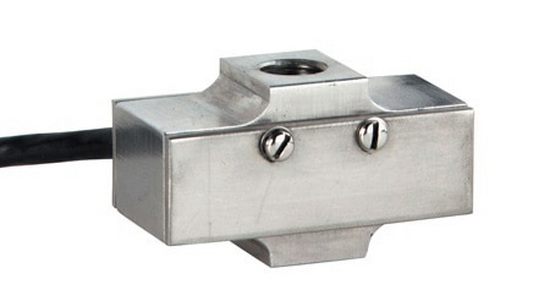

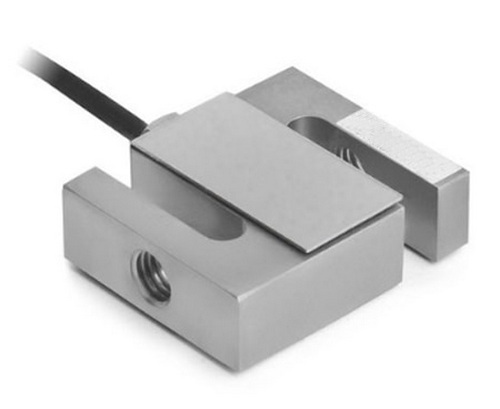

- S-Type Load Cells: Versatile and can measure both tension and compression. Ideal for applications where space is limited.
- Tension Link Load Cells: Specifically designed for measuring tension in cables or ropes, often used in lifting and rigging applications.
- Miniature Load Cells: Compact devices suitable for applications with space constraints while providing accurate measurements.

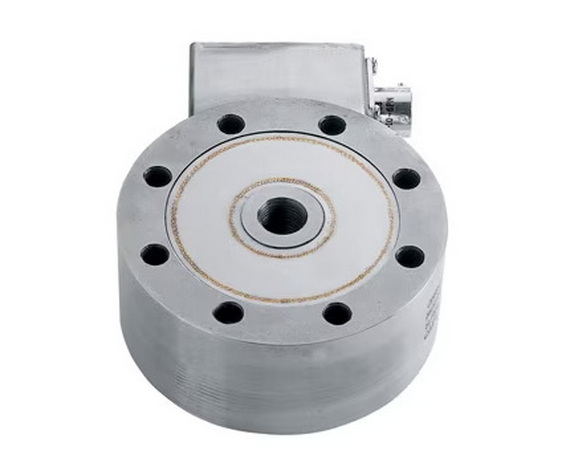

- Low Profile Load Cells: Designed for applications requiring low clearance, offering high accuracy in a compact form factor.
- Digital Load Cells: Incorporate digital technology for enhanced features such as wireless connectivity and data logging capabilities.
Each type has its advantages and is suited for specific applications. For instance, S-type load cells are often favored in laboratory settings due to their versatility, while tension link load cells are preferred in construction and rigging due to their robust design.
Selecting the right Omega tension load cell involves evaluating several critical factors:
The load cell's capacity should match or exceed the maximum force or weight it will experience. It's advisable to select a load cell with a capacity rating slightly higher than your maximum expected load to ensure accuracy and prevent damage.
For example, if you expect a maximum load of 5000 lbs, consider a load cell rated for at least 6000 lbs. This buffer helps accommodate any unexpected overloads that may occur during operation.
Consider the environment where the load cell will be used. Factors like temperature, humidity, and exposure to corrosive substances can affect performance. Choose a load cell with appropriate environmental ratings (e.g., IP67 for water resistance) if it will be used outdoors or in harsh conditions.
For instance, if your application is in a marine environment, select a corrosion-resistant model that can withstand saltwater exposure without degrading performance.
The level of accuracy required for your application is essential. Some industries demand extremely precise measurements, while others can tolerate slight deviations. Check the specifications for accuracy class and ensure that the load cell can be calibrated easily.
Accuracy is often expressed as a percentage of full scale; for example, an accuracy rating of ±0.1% means that the measurement could vary by 0.1% from the actual value at full scale.
The way you plan to mount the load cell is critical. Ensure that the load cell's design is compatible with your mounting method to avoid misalignment that could lead to inaccurate readings.
Different mounting configurations include:
- Through-hole mounting: Ideal for applications where space is tight.
- Flange mounting: Provides additional stability and support.
- Suspended mounting: Useful in dynamic applications where movement is expected.
Load cells can provide different types of output signals (e.g., analog voltage, analog current, or digital signals). Consider what type of signal your data acquisition system requires when selecting a load cell.
Analog signals are commonly used in traditional systems, while digital outputs may offer more features such as noise immunity and easier integration with modern data logging systems.
Proper installation is vital for achieving accurate measurements with an Omega tension load cell. Follow these steps:
1. Gather Necessary Tools: Ensure you have wrenches, screwdrivers, electrical tape, a multimeter, and mounting hardware ready.
2. Select a Suitable Location: Choose a location that minimizes vibration and movement.
3. Secure the Load Cell: Use appropriate mounting hardware to secure the load cell in place. Ensure it is level and properly aligned.
4. Identify and Connect Wires: Omega tension load cells typically have four wires:
- Red (excitation+)
- Black (excitation-)
- Green (signal+)
- White (signal-)
Follow the wiring diagram provided by Omega to connect these wires correctly.
5. Powering the Load Cell: Ensure that the load cell is powered correctly using a regulated power supply that matches its specifications.
6. Calibration: Calibration is crucial for ensuring accurate measurements. Gather known calibration weights close to the maximum capacity of the load cell and follow these steps:
- Remove any weight from the load cell.
- Zero the output signal using your measurement device.
- Gradually add weights while recording the output signal until you reach maximum capacity.
- Plot recorded output signals against known weights to create a calibration curve.
7. Testing: After installation and calibration, conduct tests by applying known weights to ensure that readings are consistent with expectations.
To ensure longevity and consistent performance from your Omega tension load cell:
- Regularly inspect connections for security and correctness.
- Check for physical damage or wear.
- Recalibrate periodically based on usage conditions—at least once a year or after significant environmental changes.
- Monitor readings for stability; fluctuations may indicate issues with installation or equipment malfunction.
- Keep the area around the load cell clean from dust and debris that could interfere with its operation.
Additionally, consider implementing a routine maintenance schedule that includes:
- Monthly visual inspections
- Quarterly functional tests
- Annual recalibration checks
Omega tension load cells find applications across various industries due to their versatility:
- Manufacturing: Used in quality control processes to ensure products meet weight specifications during production.
- Construction: Essential in monitoring loads on cranes and hoists during lifting operations.
- Aerospace: Employed in testing components under stress conditions to ensure safety standards are met.
- Research Laboratories: Used in experiments requiring precise force measurements for material testing or mechanical studies.
- Marine Applications: Utilized in mooring systems where accurate tension measurement is critical for safety.
Selecting the right Omega tension load cell involves understanding various factors such as capacity, environmental conditions, accuracy requirements, mounting configurations, and output signal types. Proper installation and regular maintenance are equally important for achieving reliable measurements over time. By considering these elements carefully, you can ensure optimal performance from your chosen Omega tension load cell in your project.
Tension load cells measure pulling forces while compression load cells measure pushing forces. The choice between them depends on whether your application involves tensile or compressive loads.
It is generally recommended to calibrate your load cell at least once a year or whenever there are significant changes in environmental conditions or after heavy use.
Yes, but you must select a model rated for outdoor use with features such as weatherproofing and corrosion resistance to ensure durability in harsh conditions.
Check all wiring connections for security and correctness, inspect the load cell for physical damage, and consider recalibrating it if necessary.
Most Omega tension load cells are designed to be compatible with various data acquisition systems; however, it's essential to verify that the output signal matches your system's input requirements.
