Fabric tension sensors are crucial in various textile manufacturing processes, ensuring consistent fabric tension to maintain product quality. However, these sensors can sometimes provide inaccurate readings or malfunction due to several factors. This article will guide you through troubleshooting common issues with fabric tension sensors, including mechanical damage, electrical issues, environmental factors, and calibration errors.

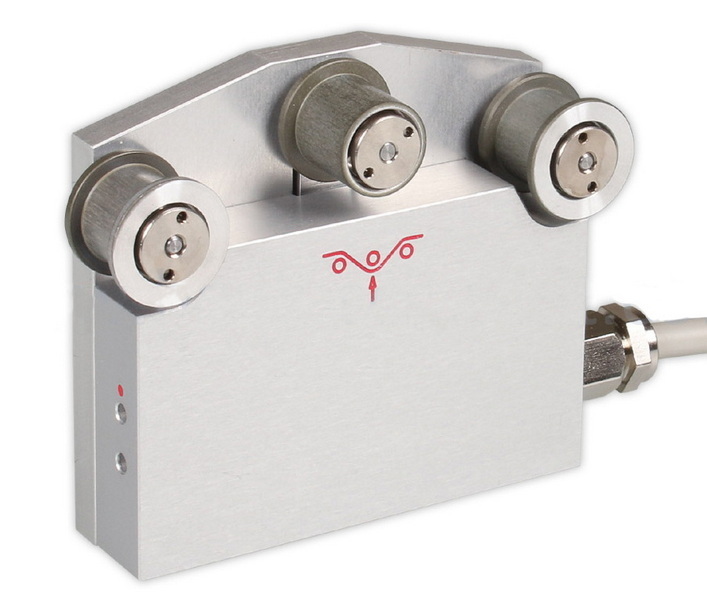

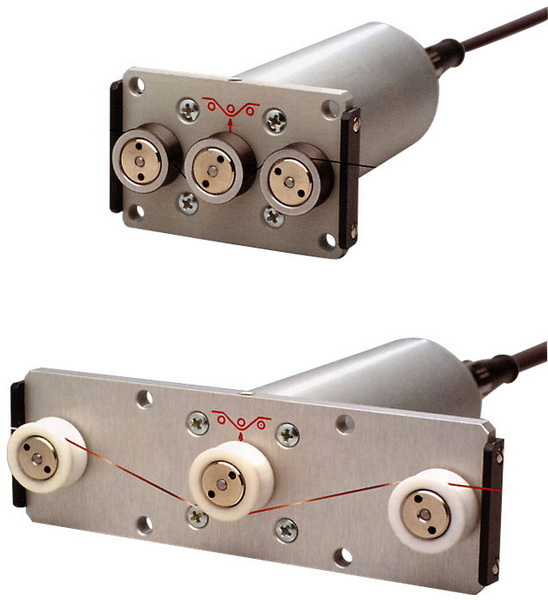

Fabric tension sensors are designed to measure and control the tension of fabrics during manufacturing processes such as weaving, knitting, or printing. They help maintain uniform tension, which is essential for preventing fabric distortion or breakage. These sensors typically work by converting mechanical tension into electrical signals that can be monitored and adjusted.
1. Mechanical Sensors: These use mechanical components like springs or levers to measure tension.
2. Electronic Sensors: These convert mechanical tension into electrical signals using transducers.
Mechanical damage can occur due to improper handling or exposure to harsh environmental conditions. This can lead to inaccurate measurements or complete sensor failure.
Solution: Inspect the sensor for any physical damage. If damaged, replace the affected components or the entire sensor if necessary.
Poor wiring connections, electrical surges, or corrosion can disrupt sensor performance.
Solution: Check all connections for security and corrosion. Use a multimeter to verify continuity and voltage levels.
Temperature fluctuations, moisture, and vibrations can affect sensor accuracy.
Solution: Ensure the sensor operates within its specified environmental conditions. Use vibration dampening mounts and shielded cables to minimize interference.
Improper calibration or drift over time can lead to systematic errors in measurements.
Solution: Regularly verify and recalibrate the sensor as needed. Ensure calibration accounts for temperature variations and hysteresis effects.
Ensure all electrical connections are secure and free from corrosion. Use a multimeter to check for continuity and voltage levels.
Example of using a multimeter:
- Set the multimeter to the resistance (Ω) setting.
- Place the probes on both ends of the wire.
- A reading close to zero indicates good continuity.
Check if the sensor is properly calibrated. Regular recalibration may be necessary to maintain accuracy.
Example of calibration process:
1. Thread a known weight through the sensor.
2. Adjust the sensor until it displays the correct voltage output for the weight.
Ensure the sensor operates within its specified environmental conditions. Use vibration dampening mounts and shielded cables to minimize interference.
If issues persist, contact technical support for further assistance.
Ensure the sensor is calibrated to account for temperature variations, which can significantly affect accuracy.
Some sensors may exhibit hysteresis, where readings differ based on increasing or decreasing pressure. Calibration should account for this effect.
Prevent exposing sensors to pressures beyond their specified range, as this can cause permanent damage or calibration errors.
Troubleshooting fabric tension sensors involves identifying and addressing common issues such as mechanical damage, electrical problems, environmental factors, and calibration errors. By following the outlined steps and maintaining optimal operating conditions, users can ensure accurate and reliable performance from their sensors.
A fabric tension sensor providing zero output may indicate severe issues such as electrical connection problems, incorrect supply voltage, or internal electronics failures. Check wiring connections and verify the supply voltage before seeking technical support.
Calibration frequency depends on operational demands and environmental conditions. Regular checks and recalibration are necessary to maintain accuracy, especially if the sensor is exposed to varying temperatures or mechanical stress.
Yes, electromagnetic interference from nearby electrical equipment can disrupt sensor readings. Using shielded cables and ensuring proper grounding can help minimize this interference.
Common types include mechanical sensors, which use springs or levers, and electronic sensors, which convert mechanical tension into electrical signals.
An over-range output can result from excessive pressure, sensor malfunction, or calibration issues. Ensure the pressure is within the sensor's specified range and check for calibration errors. If the issue persists, contact technical support.
