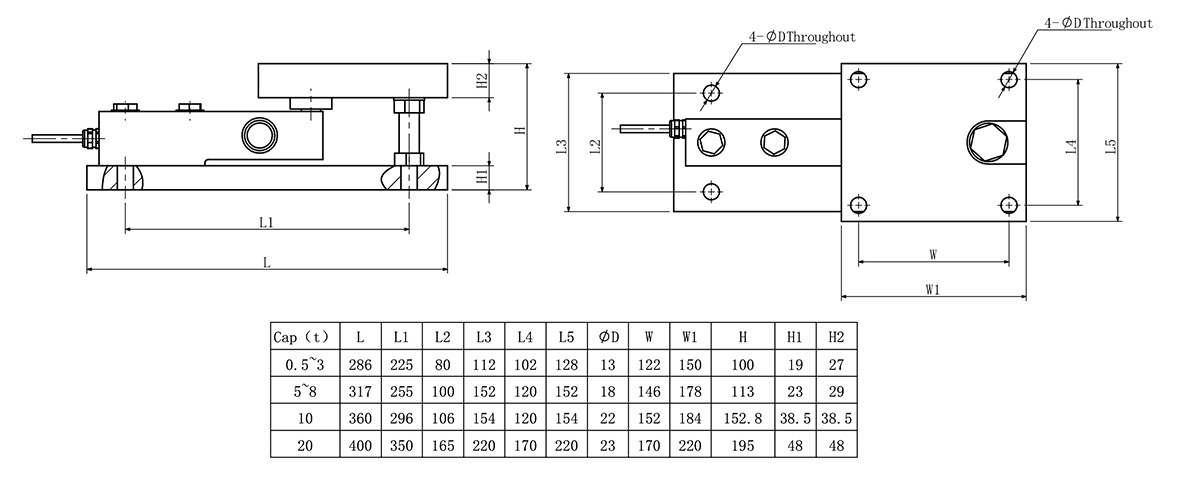

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

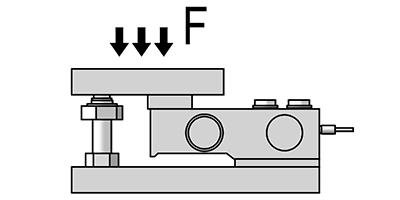

| Load Direction | Installation |
|
|
| Function Feature |
▶ High-quality stainless steel structure
▶ Can be installed directly on the ground or on the foundation
▶ Support bolts to prevent equipment from overturning
▶ Suitable for platform scales, mixing stations and batching scales, etc.
| Specifications |
| Specifications | Technique |
| Capacity | 0.3,0.5,1,2,3,5,8,10,20t |
| Sensitivity | 2.0±10%mV/V |
| Zero Balance | ±2%mV/V |
| Creep | 0.03%F.S. |
| Non-linearity | 0.03%F.S. |
| Hysteresis | 0.03%F.S. |
| Repeatability | 0.03%F.S. |
| Input Impedance | 400±20Ω |
| Output Impddance | 352±20Ω |
| Temp.efliect on sensitivity | 0.02%F.S./10℃ |
| Tamp.efliect on zero | 0.02%F.S./10℃ |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
| Recommended Excitation | 5~12V |
| Max. Excitation | 15V |
| Compensated Temp. Range | -10~60℃ |
| Operating Temp. Range | -20~70℃ |
| Safe Overload | 150%F.S. |
| Ultimate Overload | 200%F.S. |
| Material | Stainless Steel/Alloy Steel |
| Delivery Configurations |
