Precision tension regulation is the backbone of efficiency and safety in industries ranging from advanced manufacturing to aerospace engineering. At the core of this capability lies the strain gauge sensor – a device that converts mechanical deformation into measurable electrical signals. By providing real-time feedback on stress forces, these sensors enable unparalleled control over tension in cables, wires, conveyor belts, and structural components. This article explores the science, applications, and future of strain gauge technology in tension control systems, demonstrating why it remains indispensable for modern industrial automation.

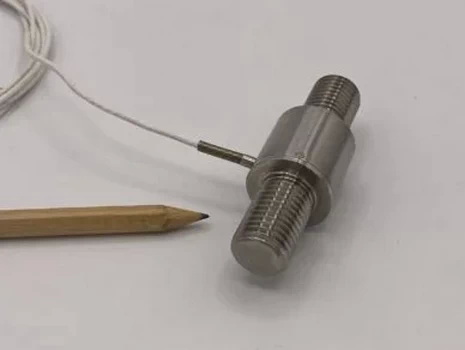

Strain gauge sensors operate on the fundamental principle that electrical resistance changes proportionally to mechanical deformation. When bonded to a surface under stress, the sensor's conductive foil or wire grid stretches or compresses, altering its resistance. This relationship is quantified using the formula:
ΔR=R⋅G⋅ϵ
Where:
- ΔR = Change in resistance
- R = Initial resistance
- G = Gauge factor (typically 2–5 for metallic foils)
- ϵ = Strain (deformation per unit length)
Critical Components:
1. Flexible Substrate: Insulates the sensor from the measured object while allowing strain transfer.
2. Wheatstone Bridge Circuit: Converts minute resistance changes (as small as 0.1%) into measurable voltage signals.
3. Signal Conditioner: Amplifies and filters raw data to eliminate noise from electromagnetic interference or thermal fluctuations.
Advanced sensors incorporate temperature compensation networks to maintain accuracy across operating environments ranging from -150°C to 300°C. Modern designs also use semiconductor materials like silicon for higher gauge factors (up to 200), enabling detection of nano-scale deformations.
Strain gauge sensors are deployed across industries where precise tension regulation impacts product quality and operational safety:

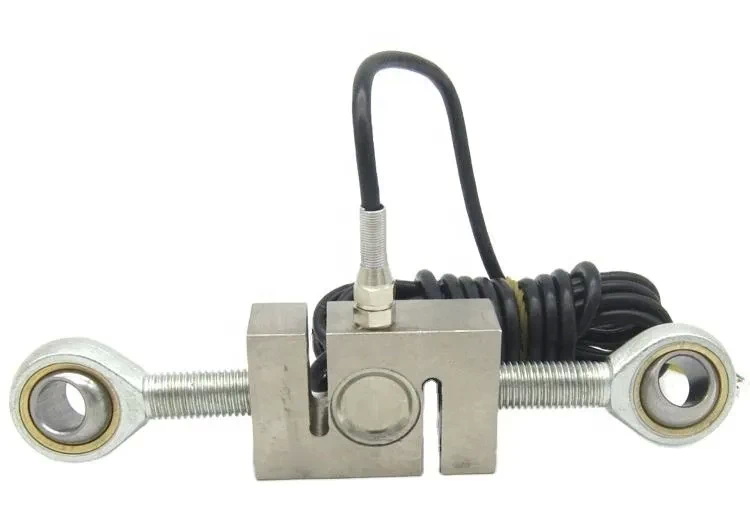

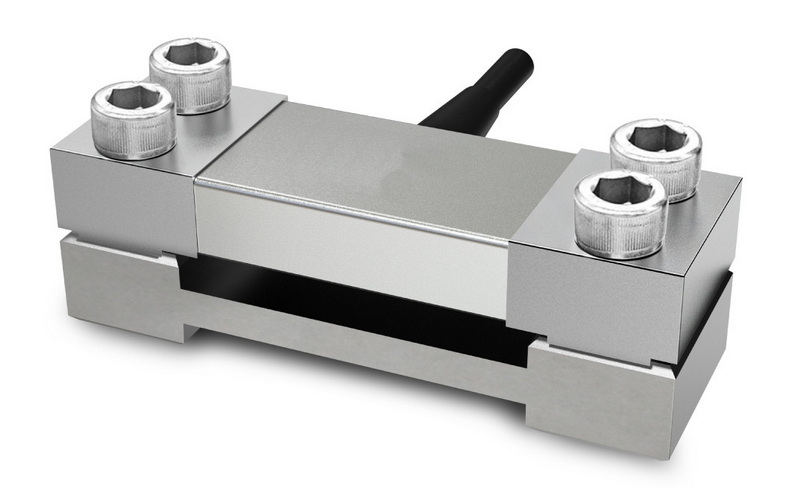

- Web Handling: Maintains optimal tension in paper, plastic film, or textile rolls during high-speed unwinding/rewinding. Prevents material warping or tearing.
- 3D Printing: Controls filament feed tension to ensure consistent layer deposition in additive manufacturing.
- Robotic Assembly: Monitors end-effector grip force during precision tasks like microelectronics placement.
- Aircraft Control Systems: Measures cable tension in wing flaps and rudder mechanisms.
- Electric Vehicle (EV) Battery Production: Ensures uniform tension during cell stacking to prevent separator damage.
- Wind Turbine Blades: Detects asymmetric load distribution during operation.
- Suspension Bridge Cables: Identifies abnormal stress patterns caused by traffic loads or structural fatigue.
- Elevator Systems: Monitors steel cable tension to prevent slippage or overloading.
A comparative analysis reveals why strain gauge sensors dominate tension control applications:
| Parameter | Strain Gauge | Load Cell | Optical Sensor |
|---|---|---|---|
| Measurement Range | 1 µε – 50,000 µε | 0.1 N – 10 MN | 0.01 N – 1 kN |
| Accuracy | ±0.1% FS | ±0.5% FS | ±1% FS |
| Response Time | <1 ms | 10–50 ms | 5–20 ms |
| Installation | Surface-bonded | Mechanical integration | Non-contact |
| Cost per Unit | $50–$500 | $200–$2,000 | $1,000+ |
Key Benefits:
- High Sensitivity: Detects microstrains as low as 1 µm/m (equivalent to 0.0001% elongation).
- Compact Form Factor: Miniature sensors (as small as 0.2 mm²) enable integration into PCB assemblies or medical devices.
- Long-Term Stability: Properly installed sensors maintain calibration for over 10 million load cycles.
A European steel producer reduced wire breakage by 23% after retrofitting their drawing machines with full-bridge strain gauge systems. Key improvements included:
- Real-Time Monitoring: Sensors sampled tension at 2 kHz, enabling instant adjustments via PLCs.
- Predictive Analytics: Machine learning models identified patterns preceding breakage events.
- Energy Savings: Optimized tension reduced motor torque requirements by 18%.
Modern strain gauge systems leverage digital technologies for enhanced functionality:
- Wireless IoT Nodes: Transmit data from rotating equipment using Bluetooth 5.0 or Zigbee protocols.
- Digital Twins: Simulate tension scenarios to optimize production lines before physical implementation.
- Blockchain Logging: Immutable records of tension data for quality assurance in regulated industries.
1. Self-Powered Gauges: Piezoelectric materials harvest energy from mechanical vibrations.
2. 3D-Printed Sensors: Custom geometries for complex surfaces like turbine blades.
3. Quantum Tunneling Composites: Achieve 500% resistance change under strain for ultra-high sensitivity.
Strain gauge sensors have proven to be the cornerstone of precise tension regulation across industrial and scientific applications. Their unparalleled combination of accuracy, durability, and adaptability positions them as critical components in the transition toward fully automated smart manufacturing systems. As material science and IoT connectivity advance, these sensors will continue to redefine the boundaries of mechanical control systems.
While all metallic conductors exhibit temperature-dependent resistance, modern sensors use dual-element designs where a "dummy" gauge compensates for thermal expansion. Advanced algorithms further correct residual errors.
Yes. The sensor's orientation determines measurement direction. Compression decreases resistance in axial gauges, while transverse gauges show inverse behavior.
Properly installed gauges last 5–10 years in moderate environments. Harsh conditions (high humidity/vibration) may reduce lifespan to 2–3 years.
Industrial IoT implementations use AES-256 encryption and frequency-hopping spread spectrum (FHSS) to prevent signal interception.
Absolutely. Miniaturized gauges monitor tendon tension in robotic surgical tools and measure orthodontic brace forces with 0.1N resolution.
