FA4193
FIBOS
1000T
≤0.05%F.S.
D:480,H:400mm
-
-
Alloy Steel

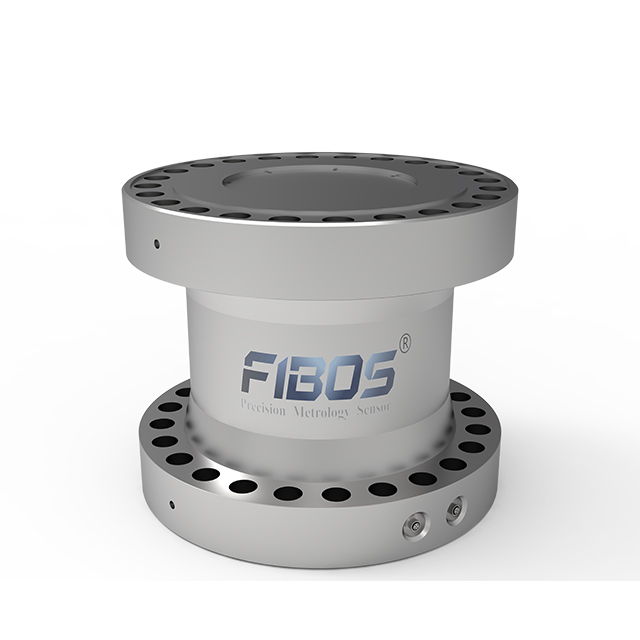

Column Type Compression Load Cell 1000T FA4193Product Description |
The FIBOS FA4193 is a high-capacity compression load cell designed for precise force measurement in heavy industrial applications. With a rated capacity of 1000 tons, it provides excellent accuracy with low non-linearity and high repeatability. Its robust alloy steel construction with IP67 protection ensures reliable performance in harsh environments. The optimized structure allows stable operation under high loads and dynamic conditions. Ideal for structural testing, heavy machinery, and large-scale load monitoring systems.

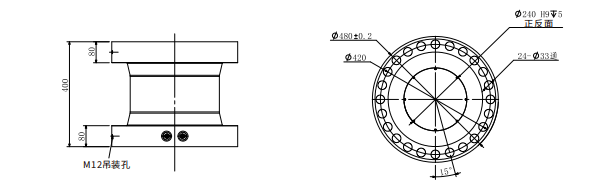

Column Type Compression Load Cell 1000T FA4193 Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |

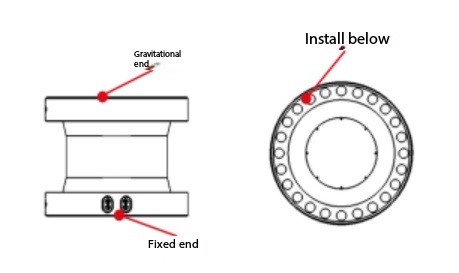

load cell Direction | load cell Wiring |
 |  |
Colunm type compression load cell 1000t Specifications |
Sensor Physical Parameters | |
Nominal Capacity | 1000t |
Fundamental resonance frequency (f_G) | - |
Safe Overload | 120%F.S. |
Operating Temperature | -20~80℃ |
Ingress Protection (IP) | IP67 |
Cable | combined with avaition connector |
Spring Element Material | Alloy steel |
weight | - |
Loading Direction | Compression |
Sensor Accuracy Parameters | |
Combined Error | ≤0.05%F.S. |
Non-linearity | ≤.25-0.5%F.S. |
Hysteresis | ≤.25-0.5%F.S. |
Repeatability | ≤0.01-0.05%F.S. |
Creep(30min) | |
Temperature Effect on Output | 0.1%F.S./10℃ |
Electrical Parameters | |
Rated Output | 1.485±1.815%mV/V |
Excitation Voltage | 5-10V DC |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
Colunm type compression laod cell 1000t Installation |
 |
Colunm type compression load cell 1000t Styling Suggestions |
 |
Force sensor manufacturing process |
Load Cell Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Force Sensor Case Studies |
Frequently Asked Questions about Force Sensors |
A: TThe FA4189 is designed for compression force measurement, ideal for industrial weighing, automation systems, and force monitoring application
A: This model supports a rated capacity up to 1000t, suitable for heavy-duty industrial force measurement.
It provides a standard analog output (mV/V), which can be connected to controllers, amplifiers, or data acquisition systems.
A:Yes, the load cell features robust alloy steel construction and IP67 protection, making it suitable for industrial environments.Yes, the load cell features robust alloy steel construction and IP67 protection, making it suitable for industrial environments..
A:FIBOS provides customization options including:
Capacity range
Thread specifications
Output signals (mV/V, 4-20mA, 0-10V)
Dimensions and structure
Ideal for OEM and special applications.
