FA4189
FIBOS
2000kN
≤0.1%F.S.
D:230,H:100mm
-
-
17-4PH/304

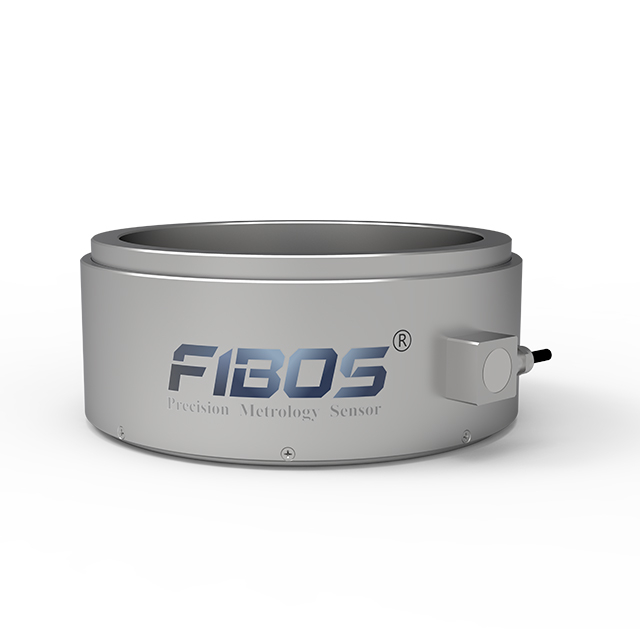

Industrial Force Measurment Compression load cell 2000kN Product Description |
The FIBOS FA4189 is a high-capacity compression load cell designed for precise force measurement in heavy-duty industrial applications. With a rated capacity of 2000 kN, it delivers accurate and stable performance with excellent linearity and repeatability. Its robust stainless steel construction and IP65 protection ensure reliable operation in harsh environments. The compact, low-profile design allows easy integration into confined spaces. Ideal for structural testing, heavy machinery, and large-scale force monitoring systems.

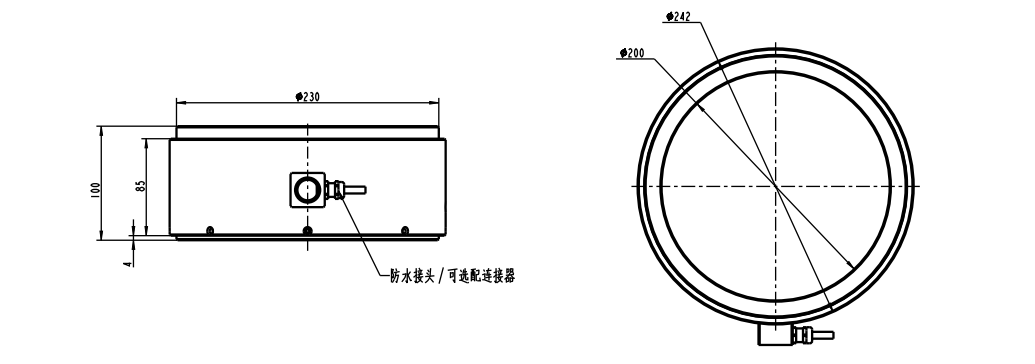

Industrial Force Measurement Compression load cell 2000kN Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |

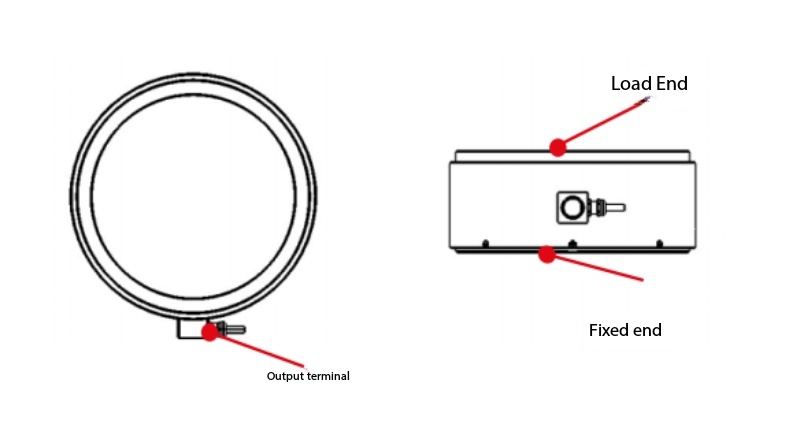

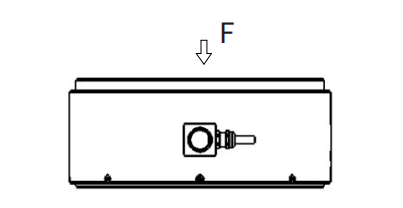

load cell Direction | load cell Wiring |
 |  |
300ton Heavy duty tension compression load cell Specifications |
Sensor Physical Parameters | |
Nominal Capacity | 2000kN |
Fundamental resonance frequency (f_G) | - |
Safe Overload | 150%F.S. |
Operating Temperature | -20~60℃ |
Ingress Protection (IP) | IP65 |
Cable | φ6x3m |
Spring Element Material | 17-4PH/304 |
weight | - |
Loading Direction | Compression |
Sensor Accuracy Parameters | |
Combined Error | ≤0.1%F.S. |
Non-linearity | ≤2%F.S. |
Hysteresis | ≤1%F.S. |
Repeatability | ≤0.3%F.S. |
Creep(30min) | ≤0.1%F.S. |
Temperature Effect on Output | 0.1%F.S./10℃ |
Electrical Parameters | |
Rated Output | 1.5±2.0%mV/V |
Excitation Voltage | 5-10V DC |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
300ton Heavy duty tension compression load cell Installation |
 |
| During the installation of FA203/ 204/ 205/ 206 and FA114B series, it is necessary to pay attention that the tooling or nut cannot touch the upper surface of the measuring end. |
300ton Heavy duty tension compression load cell Styling Suggestions |
 |
Force sensor manufacturing process |
Load Cell Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Force Sensor Case Studies |
Frequently Asked Questions about Force Sensors |
A: TThe FA4189 is designed for compression force measurement, ideal for industrial weighing, automation systems, and force monitoring application
A: This model supports a rated capacity up to 2000 kN, suitable for heavy-duty industrial force measurement.
It provides a standard analog output (mV/V), which can be connected to controllers, amplifiers, or data acquisition systems.
A:Yes, the load cell features robust alloy steel construction and IP65 protection, making it suitable for industrial environments.Yes, the load cell features robust alloy steel construction and IP65 protection, making it suitable for industrial environments..
A:FIBOS provides customization options including:
Capacity range
Thread specifications
Output signals (mV/V, 4-20mA, 0-10V)
Dimensions and structure
Ideal for OEM and special applications.
