Heavy Equipment Compression Load Cell 5000kN FA4194 Product Description |

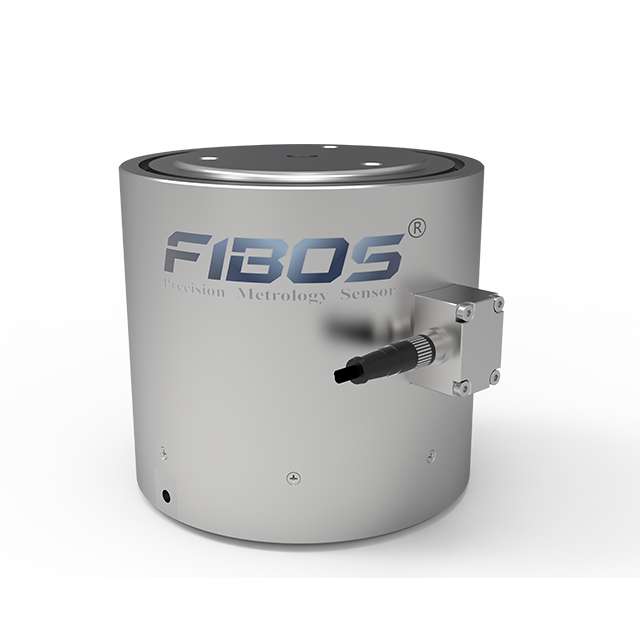

The FIBOS FA4194 is a high-capacity compression load cell designed for accurate force measurement in heavy industrial applications. With a rated capacity of 5000 kN, it delivers stable performance with good linearity and repeatability. Its rugged construction with IP65 protection ensures reliable operation in demanding environments. The compact cylindrical design allows easy installation in structural systems. Ideal for load monitoring, heavy equipment, and large-scale force measurement applications.

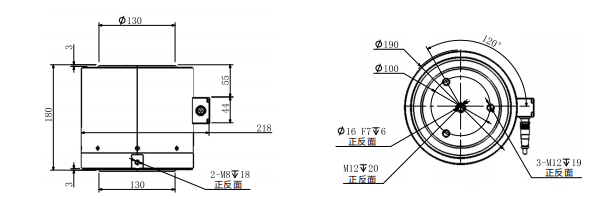

Heavy Equipment Compression Load Cell 5000kN FA4194 Dimensions（Unit:mm） |
We provide 3D model files of our products.Support |

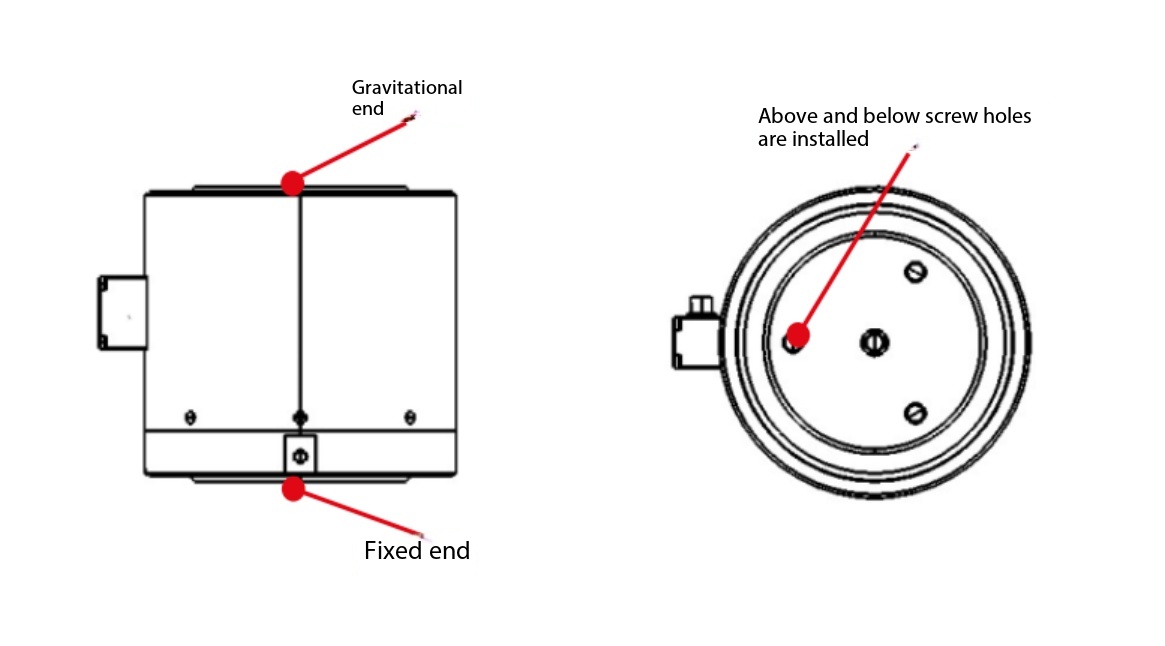

load cell Direction | load cell Wiring |
 |  |
Heavy Equipment Compression Load Cell 5000kN FA4194 Specifications |
Sensor Physical Parameters | |
Nominal Capacity | 5000kN |
Fundamental resonance frequency (f_G) | 4000Hz |
Safe Overload | 200%F.S. |
Operating Temperature | -40~80℃ |
Ingress Protection (IP) | IP65 |
Cable | 6m |
Spring Element Material | 17-4PH |
weight | - |
Loading Direction | Compression |
Sensor Accuracy Parameters | |
Combined Error | ≤+/-0.5%F.S. |
Non-linearity | ≤+/-0.5%F.S. |
Hysteresis | ≤+/-0.5%F.S. |
Repeatability | ≤+/-0.5%F.S. |
Creep(30min) | ≤+/-0.06. |
Temperature Effect on Output | 0.1%F.S./10℃ |
Electrical Parameters | |
Rated Output | 2-2.48%mV/V |
Excitation Voltage | 5-15V DC |
| Insulation Resistance | ≥5000MΩ/100V(DC) |
Heavy Equipment Compression Load Cell FA4194 Installation |
 |
Colunm type compression load cell 1000t Styling Suggestions |
 |
Force sensor manufacturing process |
Load Cell Non-standard customisation process |
|
| Fibos possesses a professional technical team capable of developing customized products to meet specific client requirements. Our R&D cycle is seamlessly integrated with our in-house production lines, enabling us to deliver relevant products within a short timeframe. |
Force Sensor Case Studies |
Frequently Asked Questions about Force Sensors |
A: TThe FA4194 is designed for compression force measurement, ideal for industrial weighing, automation systems, and force monitoring application
A: This model supports a rated capacity up to 5000kN, suitable for heavy-duty industrial force measurement.
It provides a standard analog output (mV/V), which can be connected to controllers, amplifiers, or data acquisition systems.
A:Yes, the load cell features robust alloy steel construction and IP65 protection, making it suitable for industrial environments.Yes, the load cell features robust alloy steel construction and IP65 protection, making it suitable for industrial environments..
A:FIBOS provides customization options including:
Capacity range
Thread specifications
Output signals (mV/V, 4-20mA, 0-10V)
Dimensions and structure
Ideal for OEM and special applications.
