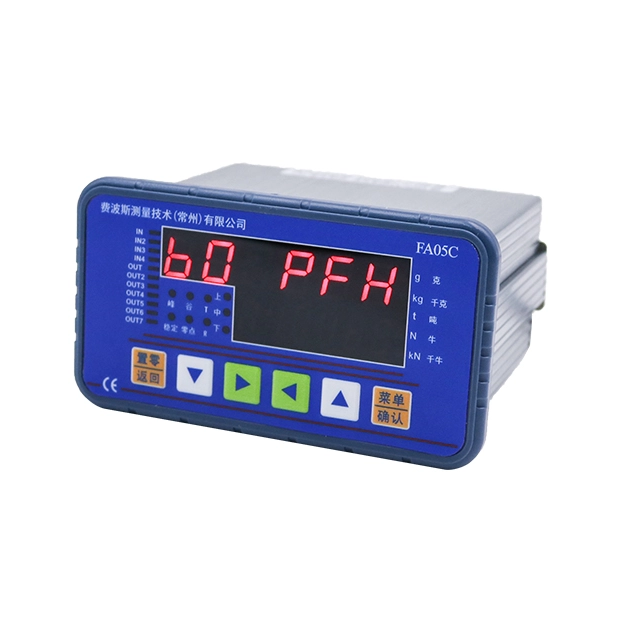

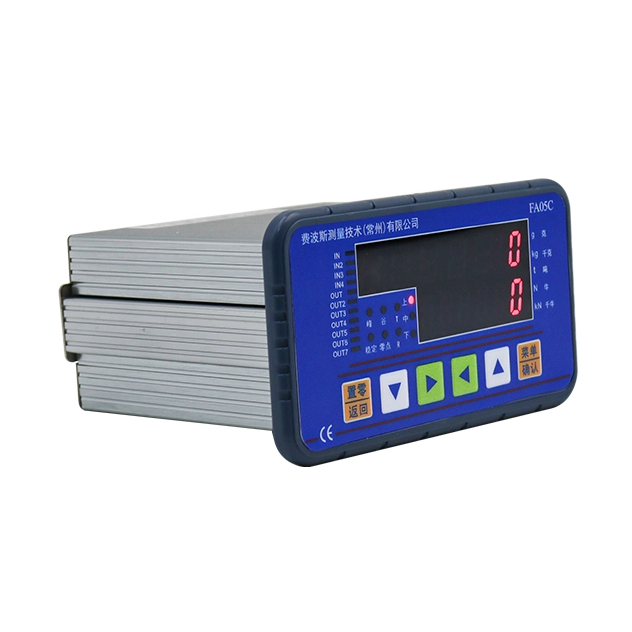

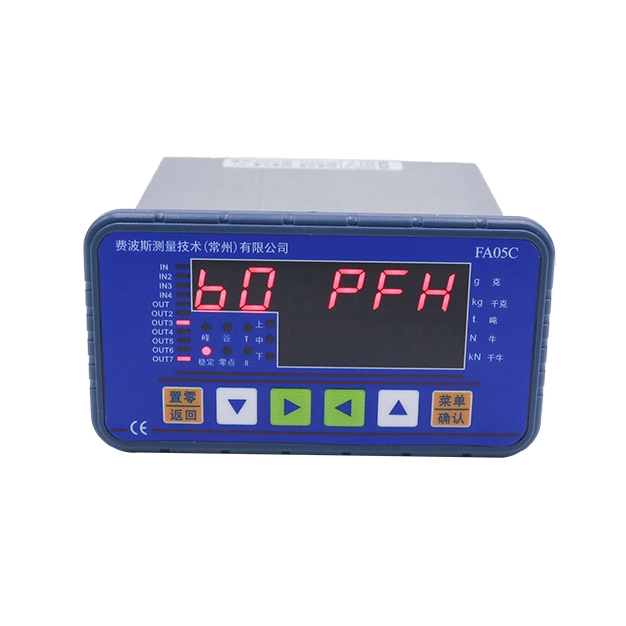

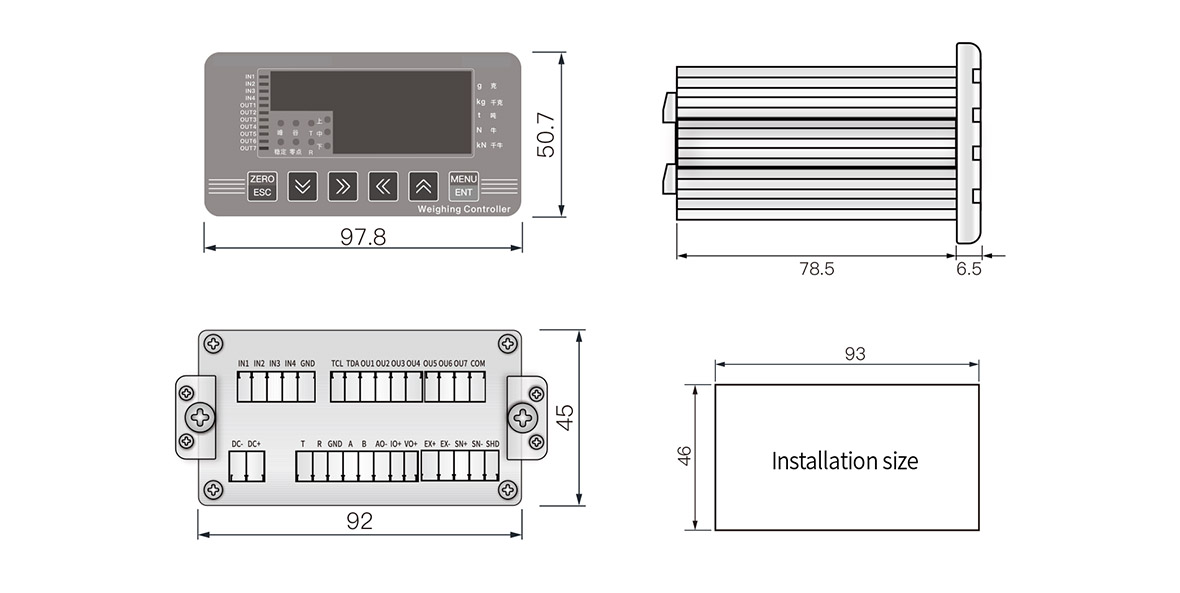

| Dimensions（Unit：mm） |
| Function Feature | |
▶ The controller is small in size, high in precision and fast in speed, suitable for all kinds of industrial sites that require weighing and force measurement. ▶ Analog output signals include 4-20mA and ±10V. ▶ Communication interface supports RS485 and RS232, standard Modbus protocol support ▶ Controller with upper limit, middle limit, lower limit boundary judgment function | ▶ Limit output has 3 output modes, upper, lower, upper and lower judgment ▶ I/0 has 4 inputs and 7 outputs, of which 4 transistor outputs, 3 relay outputs, and can be customized input and output port function. ▶ Multi-point calibration for linear correction ▶ The power supply of the controller adopts DC24V power supply, pressure width ±5V, more secure and stable. |
| Specifications |
Specifications | Technique |
| Display | Double row LED display |
| Readability | 1/900000 |
| Division Value | 1,2,5,10,20,50 |
| Nonlinear error | ≤0.002%FS |
| A/D Conversion Speed | ≤3200t/s |
| Maximum Signal Input Range | -30mV~+30mV(-6mV/V~+6mV/V) |
| Input Load | 4pcs 350Ω sensors |
| Analog Output Specification | ±10V/0~10V/4~20mA |
| Com. Output Specification | RS232/RS485 |
| Output Specification(I/O) | Relay/Transistor |
| Temp. Effect on Output | ≤10ppm/℃ |
| Temp. Effect on Zero | ≤10μV/℃ |
| Excitation Voltage | 5VDC |
| Power Supply | DC24V±5V |
| Power Waste | ≤10W |
| Operation Temp. Range | -10~50℃ |
| Humidity Range | ≤90% Relative humidity(without condensation) |
| Switching Value Output(contact) capacity | 3-channel relay output capacity: AC 220V 1A 4-channel transistor output capacity: DC 24V 0.5A |

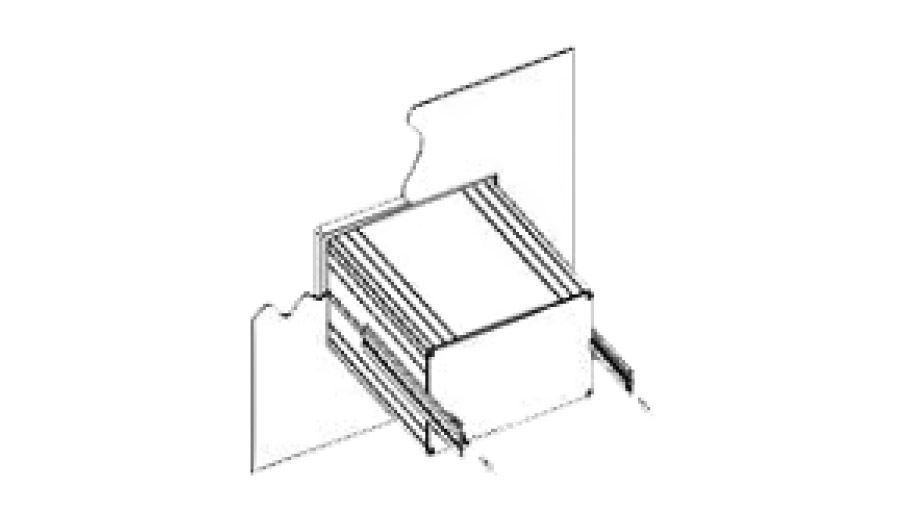

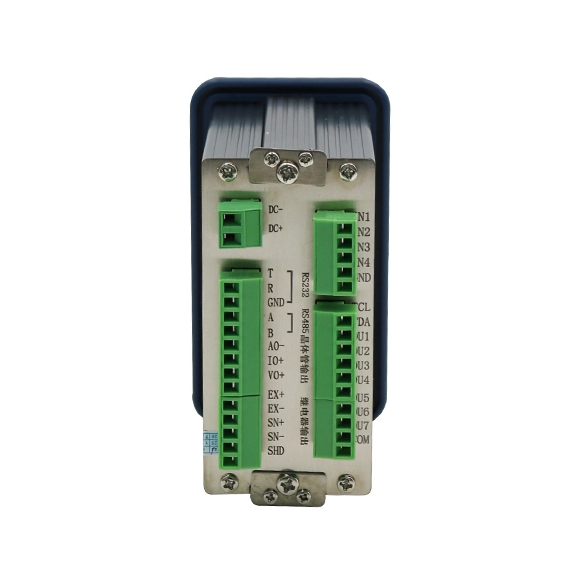

| Installation |
