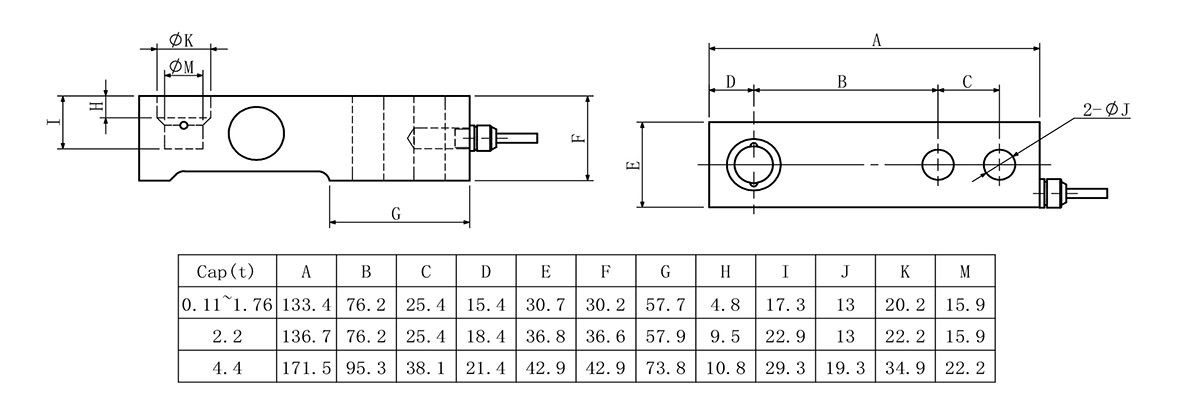

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

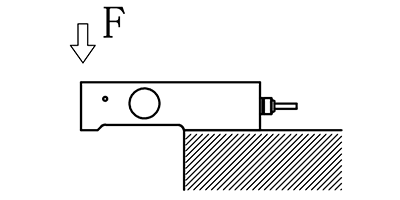

| Load Direction | Installation |
|
|
| Specifications |
| Specifications | Technique |
| Capacity | 0.22,0.55,1.1,1.76,2.2,4.4t |
| Sensitivity | 2.0±0.1%mV/V |
| Zero Balance | ±2%mV/V |
| Creep | 0.0166%F.S. |
| Non-linearity | 0.017%F.S. |
| Hysteresis | 0.017%F.S. |
| Repeatability | 0.017%F.S. |
| Input Impedance | 380±15Ω |
| Output Impddance | 350±5Ω |
| Temp.efliect on sensitivity | 0.014%F.S./10℃ |
| Tamp.efliect on zero | 0.012%F.S./10℃ |
| Insulation Resistance | ≥500MΩ/100V(DC) |
| Recommended Excitation | 5~12V |
| Max. Excitation | 15V |
| Compensated Temp. Range | -10~60℃ |
| Operating Temp. Range | -20~80℃ |
| Safe Overload | 150%F.S. |
| Ultimate Overload | 200%F.S. |
| Cable Size | Φ5.4x3m |
| Material | Stainless Steel |

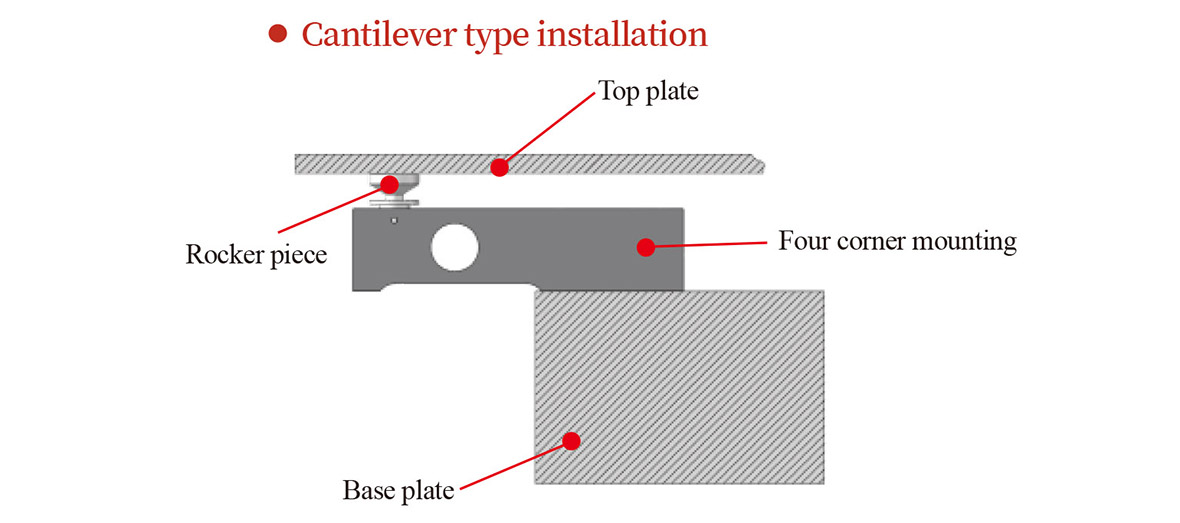

| Installation |
| Delivery Configurations |
