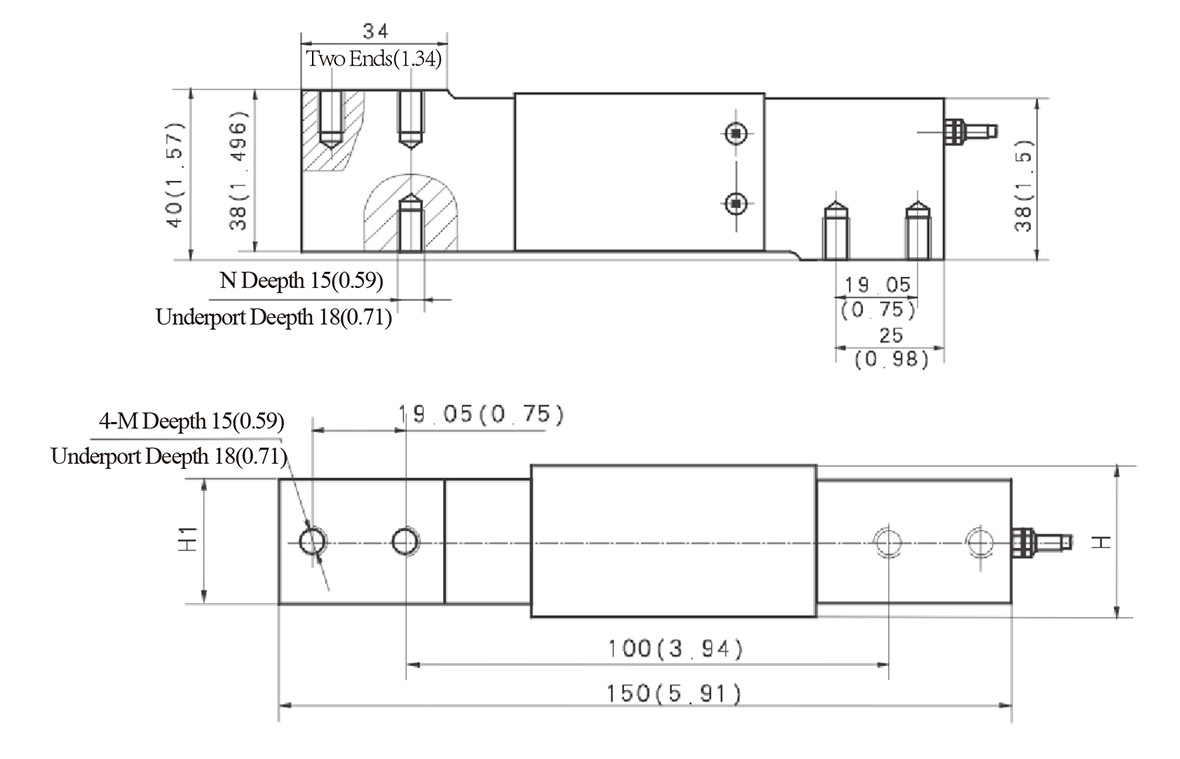

| Dimensions（Unit：mm） |
Make it clear: | |
| Machining thread hole M,N according to user requirement: | |
| User requirements in British time: | When the user requires metric: |
| The thread hole M is 1/4-20UNC-2B | The threaded holes M and N are M6-6H and are in |
| Threaded hole N is 1/4-28UNF-2B | An"M" is carved below the outlet hole |
| We provide 3D model files of our products. Support |
| Load Direction | Recommended selection model |
|
|

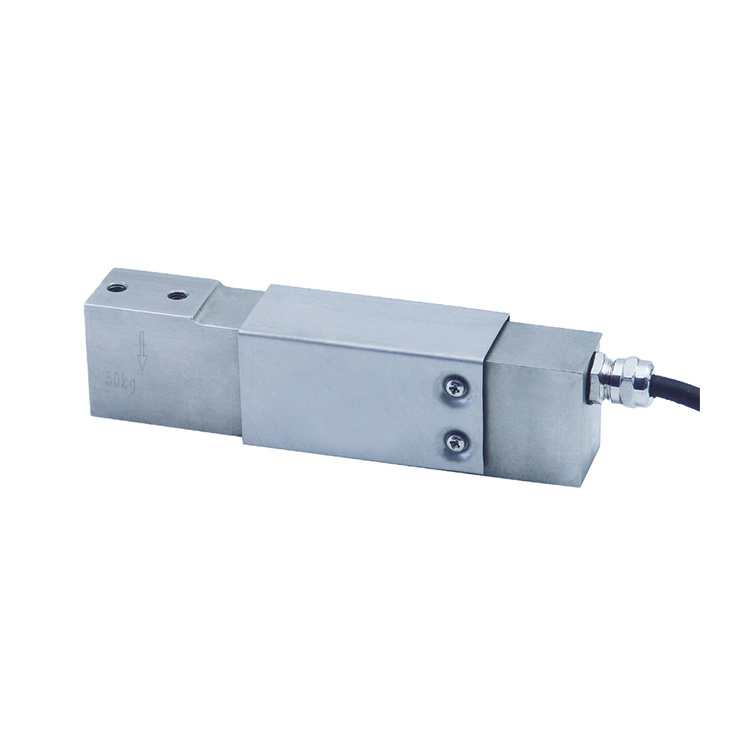

| ▶ Stainless steel IP67 single point load cell. ▶ Bending beam. ▶ Suitable for weighing equipment like platform and belt scales. ▶ Maximum platform size: 400 x 400 mm. | |
| Specifications |
| Specfications | Technique | |
| Maximum capacity (Emax) | 5,7,8,10,15,20,30,50,75,100,150,200kg | |
| Accuracy class | OIML R60 C3 | OIML R60 C4 |
| Maximum number of load cell intervals(nLC) | 3000nmax | 4000nmax |
| Ratio of minimum LC verification interval Y=Emax/Vmin | Emax/10000Vmin | Emax/15000Vmin |
| Combined error | ≤±0.020%FS | ≤±0.018%FS |
| Creep | ≤±0.016%FS/30min | ≤±0.012%FS/30min |
| Temperature effect on sensitivity | ≤±0.011%FS/10℃ | ≤±0.009%FS/10℃ |
| Temperature effect on zero | ≤±0.015%FS/10℃ | ≤±0.010%FS/10℃ |
| Output sensitivity (=FS) | 2.0±0.2mV/V | |
| Input resistance | 384±4Ω | |
| Output resistance | 350±3.5Ω | |
| Insulation resistance | ≥ 5000MΩ(50VDC) | |
| Zero balance | ≤±1.5%FS | |
| Compensated temperature | -10~+40℃ | |
| Operating temperature | -35~+70℃ | |
| Excitation recommended voltage | 5~12VDC | |
| Excitation maximum | 18VDC | |
| Safe overload | 150%FS | |
| Ultimate overload | 300%FS | |
| Corner correction | 0.02%load value/100mm | |
| Recommended torque on fixation | 10N.m | |
| ATEX classification(optional) | II1G Ex ia II1C T4/II1D Ex iaD20 T73℃/ II3G Ex nL II C T4 | |

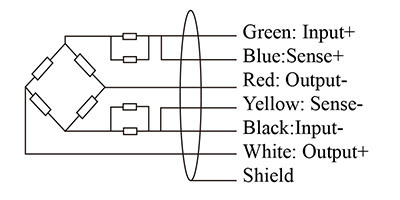

| Wiring | Green:Input+, Blue: sense+, White: Output+, Shield: Transparent, Black: Input-, Yellow: Sense-, Red: Output- Cable diameter:Φ5mm Standard cable length: 1m | |

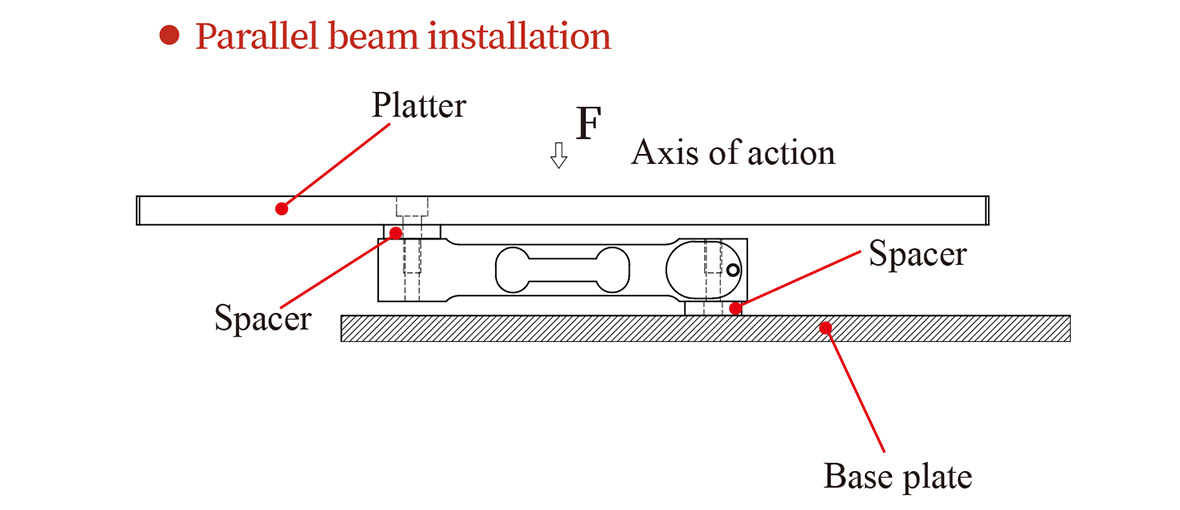

| Installation |

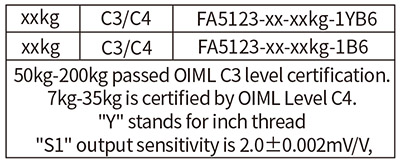

| Delivery Configurations |
