In the realm of robotics, sensors play a crucial role in enabling machines to interact with their environment. Among these, Arduino flexible tension sensors have gained popularity due to their versatility and ease of integration. This article will explore various types of flexible tension sensors suitable for robotics, their applications, and how to implement them in projects.
Arduino flexible tension sensors are devices that detect bending or flexing through changes in resistance. These sensors can be used in various applications, including robotic hands, wearable technology, and soft robotics. The ability to measure tension or flex makes them invaluable for creating responsive systems that mimic human movements.
1. Flex Sensors
- Description: Flex sensors are passive resistive devices that change their resistance based on the amount of bend.
- Applications: Commonly used in robotic hands and other applications requiring precise bending detection.
- Example: A 2.2-inch flex sensor can range from $10 to $50, depending on the manufacturer and specifications.
2. Flexiforce Sensors
- Description: These sensors change resistance when a force is applied, making them suitable for weight sensing.
- Applications: Used in applications where measuring the amount of force or weight is crucial.
- Characteristics: Flexiforce sensors can measure forces with a range of resistance from nearly infinite (unpressed) to under 25K ohms (at maximum weight).
3. Stretchable Sensors
- Description: Recent advancements have led to the development of stretchable versions of Arduino boards that can be integrated into soft robots.
- Applications: Ideal for soft robotics where traditional rigid components would fail due to stretching.
- Sensitivity: The ability to detect slight changes in tension or flexing.
- Integration: Easy integration with Arduino boards using simple circuits.
- Cost-Effectiveness: Affordable options available for hobbyists and professionals alike.
- Arduino board (e.g., Arduino Uno)
- Flexible tension sensor (flex sensor or flexiforce)
- Resistor (10KΩ to 100KΩ recommended)
- Breadboard and jumper wires
- Power supply (USB or battery)
Here's a basic circuit setup for connecting a flex sensor to an Arduino:
[5V] ---- [Flex Sensor] ---- [Analog Pin A0]
|
|
[Resistor]
|
GND
1. Connect the Flex Sensor:
- Connect one terminal of the flex sensor to the 5V pin on the Arduino.
- Connect the other terminal to an analog pin (A0).
- Connect a resistor between the analog pin and ground (GND).
2. Upload Code to Arduino:
Use the following sample code to read values from the flex sensor:
int flexSensorPin = A0; // Analog pin connected to flex sensor
void setup() {
Serial.begin(9600); // Start serial communication
}
void loop() {
int sensorValue = analogRead(flexSensorPin); // Read sensor value
Serial.println(sensorValue); // Print value to serial monitor
delay(500); // Delay for readability
}
3. Test Your Setup:
- Open the Serial Monitor in the Arduino IDE.
- Bend the sensor and observe changes in the readings.
For a visual guide, check out this video tutorial on using a flex sensor with an Arduino:
Arduino flexible tension sensors are widely used in various robotic applications:
- Robotic Hands: Mimicking human finger movements by detecting bending angles.
- Wearable Devices: Monitoring body movements for health tracking or gaming interfaces.
- Soft Robotics: Integrating sensors into soft structures for enhanced flexibility and functionality.
A common project using flexible tension sensors is building a robotic hand. By incorporating multiple flex sensors into fingers, users can control servo motors that mimic natural hand movements.
1. Create a hand model using lightweight materials such as cardboard or 3D printed parts.
2. Attach flex sensors along each finger segment, ensuring they can detect bending accurately.
3. Connect each sensor to an Arduino board and program it to control servos based on sensor input.

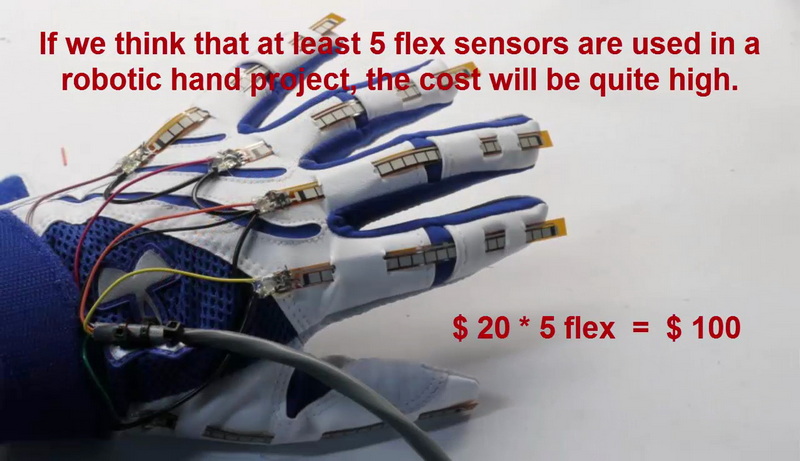

Flexible tension sensors can be integrated into wearable gloves designed for gesture recognition systems. By detecting specific hand movements, these systems can control devices remotely or provide input for virtual reality environments.
In rehabilitation robotics, flexible sensors can be used in exoskeletons or assistive devices that help patients regain mobility. By monitoring joint angles and muscle activity, these devices can provide real-time feedback and adjust assistance levels accordingly.
Researchers studying human motion can use flexible tension sensors embedded in clothing or equipment to gather data on body movements during physical activities. This data can be invaluable for improving athletic performance or understanding injury mechanisms.
When selecting an appropriate flexible tension sensor for your project, consider the following factors:
Choose a sensor that offers sufficient sensitivity for your application. For instance, if you need precise angle measurements for a robotic hand, opt for high-sensitivity flex sensors.
The physical size of the sensor may impact its integration into your design. Ensure that it fits well within your project constraints without compromising functionality.
While many affordable options exist, consider long-term costs such as replacements or additional components needed for integration when making your choice.
When working with Arduino flexible tension sensors, you may encounter several common issues:
If you notice fluctuating values from your sensor:
- Check all connections; ensure they are secure.
- Verify that your resistor value is appropriate for your setup.
If your sensor appears unresponsive:
- Confirm that it is correctly connected to power and ground.
- Test the sensor independently with a multimeter if possible.
To achieve accurate readings:
- Calibrate your sensor by recording values at known angles or tensions.
- Adjust your code accordingly based on calibration results.
The field of flexible tension sensing is rapidly evolving with advancements in materials science and electronics. Some future trends include:
As artificial intelligence becomes more prevalent in robotics, integrating flexible tension sensors with AI algorithms could lead to smarter systems capable of learning from their environments and adapting their responses accordingly.
Research into new materials could yield more sensitive and durable flexible sensors, expanding their range of applications across industries such as healthcare, entertainment, and manufacturing.
The trend towards smaller electronic components will likely lead to miniaturized flexible tension sensors that can be embedded into even more compact devices without sacrificing performance.
Arduino flexible tension sensors are essential components in modern robotics, allowing for intricate interactions between machines and their environments. Their affordability, ease of use, and versatility make them ideal for both hobbyists and professionals alike.
As technology advances, we can expect even more innovative uses for these sensors in robotics and beyond. Whether you are building robotic hands or exploring new applications in rehabilitation technology, understanding how to implement these sensors will enhance your projects significantly.
An Arduino flexible tension sensor is a device that detects bending or flexing by changing its resistance, allowing it to measure tension or movement.
Connect one terminal of the flex sensor to the 5V pin on your Arduino, the other terminal to an analog pin (like A0), and use a resistor connected between that analog pin and ground.
Common applications include robotic hands, wearable technology, gesture recognition systems, rehabilitation robotics, and biomechanics research.
Yes, you can create your own flex sensor using materials like cardboard, aluminum foil, and wires as demonstrated in various DIY tutorials.
The cost ranges from approximately $10 to $50 depending on the type and specifications of the sensor used.
