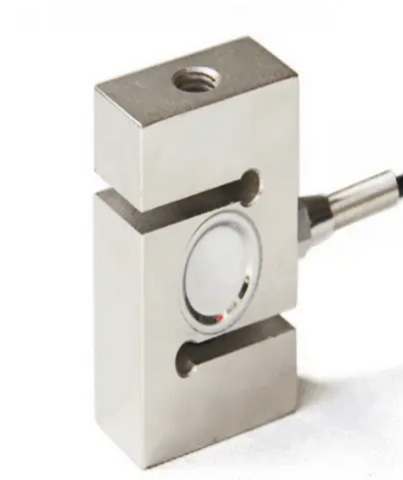

S type tension load cells, also known as S-beam load cells, are essential devices in various industries for measuring force and weight. Their unique "S" shape allows them to function effectively in both tension and compression applications. This article explores the common applications of S type tension load cells, their advantages, and how they work.

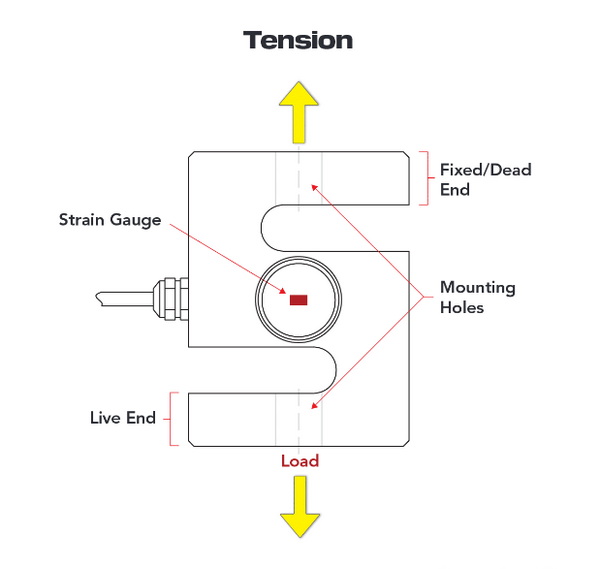

S type tension load cells convert mechanical force into an electrical signal through the use of strain gauges. When a load is applied, the load cell deforms slightly, causing the strain gauges attached to its surface to change their electrical resistance. This change is then converted into a measurable output signal.
- Dual Functionality: Capable of measuring both tension and compression forces.
- High Accuracy: Provides precise measurements essential for critical applications.
- Robust Design: Constructed from durable materials like stainless steel or alloy steel, making them suitable for harsh environments.
- Compact Size: Their small footprint allows for easy integration into existing systems.
1. Industrial Weighing Systems
S type tension load cells are widely used in industrial weighing systems such as:
- Hopper weighing
- Tank weighing
- Batch weighing
2. Material Testing
In laboratories and manufacturing, these load cells measure tensile and compressive forces, crucial for:
- Testing the strength and elasticity of materials
- Quality control processes
3. Automotive Industry
The automotive sector employs S type load cells for:
- Component testing
- Crash testing to ensure safety standards are met
4. Medical Devices
S type tension load cells are integral in medical devices like:
- Patient lifting systems
- Physical therapy equipment where precise weight measurements are necessary
5. Agriculture
In agriculture, these load cells facilitate:
- Monitoring grain silos
- Weighing livestock to optimize feeding processes
6. Construction and Heavy Equipment
They are utilized in construction for:
- Crane scales to measure loads safely
- Monitoring tension in cables and lifting equipment
7. Marine Applications
Used in marine environments for:
- Mooring strength measurement
- Towing loads and cable forces
8. Packaging Industry
In packaging, S type load cells help ensure that products meet weight specifications during filling processes.
- Versatility: Can be used in various applications across different industries.
- Ease of Installation: Simple design allows for quick installation and calibration.
- Cost-Effectiveness: Offers high performance at a relatively low cost compared to other types of load cells.
- Durability: Built to withstand extreme conditions, ensuring long-term reliability.

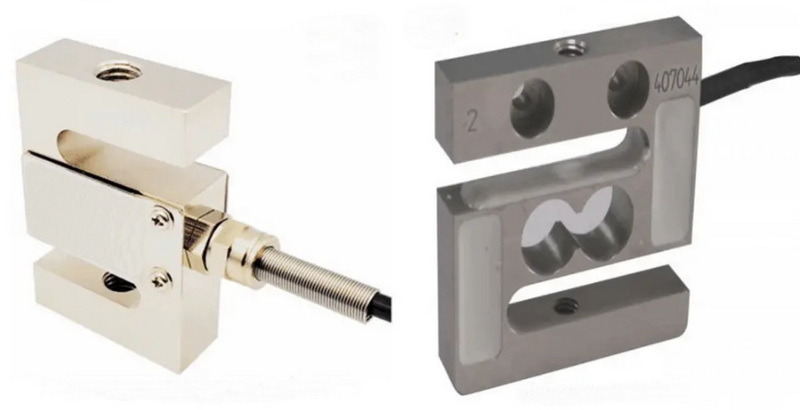

The operation of an S type tension load cell is based on the principles of strain gauge technology. The main components include:
- Metal Structure: Provides support and durability.
- Strain Gauges: Detect deformation and convert it into an electrical signal.
- Wiring and Connectors: Facilitate signal transmission to measuring devices.
When force is applied, the metal structure deforms slightly, causing the strain gauges to stretch or compress. The resulting change in resistance generates a voltage signal proportional to the force applied.
Proper installation is crucial for accurate readings from S type tension load cells:
- Ensure the load cell is securely mounted to prevent movement during operation.
- Align the load cell correctly to avoid misreadings.
Calibration involves applying known weights to adjust the output signal to match the applied weight accurately.
S type tension load cells are versatile instruments widely used across various industries due to their ability to measure both tension and compression forces accurately. Their robust design, high precision, and ease of installation make them a preferred choice for applications ranging from industrial weighing systems to medical devices. As technology continues to evolve, the applications of these load cells will likely expand further, enhancing their significance in modern engineering and manufacturing processes.
An S type tension load cell is a device designed to measure both tensile and compressive forces using strain gauge technology.
They are commonly used in industrial weighing systems, material testing, automotive testing, medical devices, agriculture, construction, marine applications, and packaging industries.
Advantages include versatility in applications, high accuracy, ease of installation, durability under harsh conditions, and cost-effectiveness.
Installation involves securely mounting the load cell to prevent movement and ensuring proper alignment for accurate readings.
Calibration requires applying known weights to adjust the output signal so that it accurately reflects the applied weight.
