Passenger safety is of utmost importance in the automotive industry, and seat belts play a crucial role in minimizing injuries during collisions. Modern seat belt systems have evolved significantly, incorporating advanced technologies to enhance their effectiveness. One such advancement is the integration of tension sensors, which offer numerous advantages in ensuring passenger safety. This article explores the key benefits of using tension sensors in passenger seat belts, highlighting their functionality, impact on safety, and integration with other vehicle systems.
Seat belts are a fundamental safety feature in vehicles, designed to restrain occupants during a crash and prevent them from being ejected or colliding with the interior of the vehicle. According to the Centers for Disease Control, wearing a seat belt reduces the risk of death in a car accident by approximately 50%. Traditional seat belts consist of a webbing strap, a buckle, and a retractor mechanism. While these systems provide a basic level of protection, they may not always offer optimal restraint in various crash scenarios.

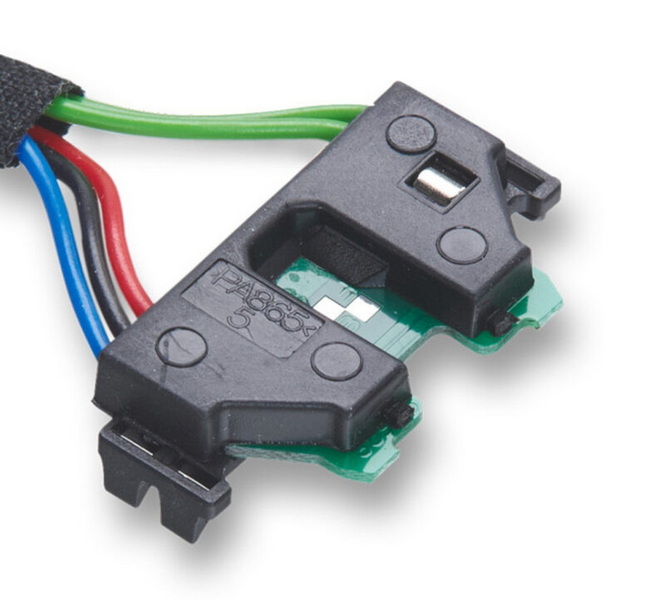

Seat belt tension sensors are devices that measure the amount of force or tension applied to the seat belt webbing. These sensors provide real-time data on the tension levels, allowing the vehicle's safety systems to make informed decisions and respond accordingly. Tension sensors can be integrated into various components of the seat belt system, such as the buckle, retractor, or webbing.
One of the primary advantages of seat belt tension sensors is their ability to improve the effectiveness of airbag deployment. Airbags are designed to cushion the impact of occupants during a collision, but their deployment force needs to be adjusted based on the occupant's size, weight, and position. Tension sensors provide valuable information about the occupant's restraint status, allowing the airbag control system to optimize deployment parameters.
For instance, if a seat belt is tightly fastened, indicating that the occupant is properly restrained, the airbag may deploy with less force to minimize the risk of injury. Conversely, if the seat belt is loose or unbuckled, the airbag may deploy more aggressively to provide maximum protection. By integrating tension sensor data, automakers can fine-tune airbag deployment strategies, enhancing safety for a wider range of occupants.
Seat belt tension sensors can also contribute to more accurate occupant detection. Many modern vehicles are equipped with occupant detection systems that use weight sensors to determine the presence and size of passengers. However, these systems can be influenced by factors such as cargo on the seat or a tightly secured child seat.
By incorporating tension sensor data, the system can differentiate between a passenger and other objects on the seat. For example, if the tension sensor detects minimal tension on the seat belt, it can indicate that the seat is unoccupied or that the occupant is very small. This information can be used to suppress airbag deployment on unoccupied seats or adjust deployment parameters for child passengers. This level of nuanced detection reduces the risk of unnecessary airbag deployment, which can be harmful to smaller occupants.
Pretensioners are devices that automatically tighten the seat belt webbing in the event of a collision. They work by retracting the slack in the seat belt, pulling the occupant firmly into the seat and minimizing forward movement. Tension sensors can play a crucial role in optimizing pretensioner activation.
By monitoring the tension levels on the seat belt, the system can determine the optimal timing and force for pretensioner deployment. If the tension sensor detects a sudden increase in tension, indicating the onset of a collision, the pretensioner can be activated immediately to remove slack and secure the occupant. This can significantly reduce the risk of submarining, a phenomenon where the occupant slides under the lap belt during a crash. The optimized deployment timing, facilitated by seat belt tension sensors, leads to enhanced occupant safety during high-impact collisions.
Some advanced seat belt systems use tension sensors to provide adaptive adjustment of the seat belt fit. These systems can automatically adjust the height and tension of the seat belt based on the occupant's posture and weight, ensuring a comfortable and secure fit for all passengers.
For example, if the tension sensor detects that the seat belt is too loose, the system can automatically tighten the webbing to provide better restraint. Conversely, if the seat belt is too tight, the system can slightly loosen the webbing to improve comfort. This adaptive adjustment ensures that the seat belt provides optimal protection without causing discomfort or restricting movement. The resulting personalized fit enhances the likelihood of the seat belt being worn correctly, further contributing to occupant safety.
Child seats require proper installation to provide adequate protection. Seat belt tension sensors can assist in ensuring that child seats are correctly secured. By measuring the tension on the seat belt webbing, the system can determine whether the child seat is tightly fastened and properly positioned.
If the tension sensor detects insufficient tension, it can alert the driver to tighten the seat belt or adjust the child seat. This can help prevent common installation errors and ensure that child passengers receive the maximum level of protection. Visual or auditory alerts can be triggered when the sensor detects suboptimal tension, thereby significantly reducing the risk of injury to child passengers.
Modern seat belt systems are designed to work synergistically with other vehicle safety systems, such as airbags, stability control, and collision avoidance systems. Tension sensors facilitate this integration by providing real-time data on occupant restraint status.
For example, if the tension sensor detects that the seat belt is unbuckled during a collision, the system can adjust the airbag deployment parameters or activate other safety features to compensate for the lack of restraint. This integration ensures that the entire safety system works together to provide optimal protection during an accident. The ability of seat belt tension sensors to communicate effectively with other vehicle safety systems is a crucial factor in overall safety performance.
Beyond the immediate safety benefits during a crash, seat belt tension sensors also enable real-time monitoring and data logging capabilities. The data collected by these sensors can be used to analyze seat belt usage patterns, identify potential safety issues, and improve the design of future seat belt systems. For instance, vehicle manufacturers can use tension data to determine the effectiveness of different seat belt designs and identify areas for improvement.
Additionally, real-time monitoring can be used to provide alerts to drivers if a seat belt is unbuckled or improperly fastened while the vehicle is in motion. This can help encourage seat belt usage and improve overall safety compliance.
Submarining, the phenomenon where an occupant slides under the lap belt during a collision, is a significant safety concern. Seat belt tension sensors, coupled with pretensioners, can significantly reduce the risk of submarining by ensuring that the seat belt is tightly fitted against the occupant's body. The pretensioner, activated based on the tension sensor's input, removes slack in the seat belt, preventing the occupant from sliding forward and under the belt.
While the primary focus of seat belt tension sensors is safety, they can also contribute to enhanced comfort and convenience for vehicle occupants. Adaptive seat belt systems, which use tension sensors to adjust the seat belt fit, can provide a more comfortable and personalized experience. These systems can automatically adjust the seat belt height and tension to accommodate different body sizes and shapes, ensuring a secure and comfortable fit for all passengers.
The field of seat belt technology is constantly evolving, with new innovations emerging regularly. In the future, we can expect to see even more advanced seat belt systems that incorporate tension sensors, smart materials, and artificial intelligence to provide even greater levels of safety and comfort.
For example, seat belts may be equipped with sensors that can detect the occupant's vital signs, such as heart rate and breathing, and adjust the seat belt tension accordingly. AI-powered systems may also be used to predict the likelihood of a collision and proactively tighten the seat belts to prepare the occupants for impact. These advancements promise to make seat belts even more effective and user-friendly in the years to come.
Various types of seat belt tension sensors are available, each with its own advantages and limitations. Some common types include:
- Strain Gauge Sensors: These sensors measure the strain on the seat belt webbing using strain gauges, which are small resistive elements that change resistance when subjected to mechanical stress. These sensors are generally cost-effective and reliable but may require careful calibration to ensure accuracy.
- Hall Effect Sensors: Hall effect sensors use a magnetic field to detect the tension on the seat belt. These sensors are non-contacting, which means they do not physically touch the seat belt webbing. This can lead to increased durability and reduced wear and tear.
- Optical Sensors: Optical sensors use light to measure the tension on the seat belt. These sensors are highly accurate and can provide real-time data on tension levels. However, they may be more expensive and sensitive to environmental factors.
Seat belt tension sensors offer numerous advantages in enhancing passenger safety. By providing real-time data on occupant restraint status, these sensors enable improved airbag deployment, more accurate occupant detection, optimized pretensioner activation, adaptive seat belt adjustment, enhanced safety for child seats, and seamless integration with other vehicle safety systems. As automotive technology continues to advance, passenger seat belt tension sensors will play an increasingly important role in ensuring the safety and well-being of vehicle occupants. The integration of these sensors into modern vehicles represents a significant step forward in the pursuit of safer transportation.
A seat belt tension sensor is a device that measures the amount of force or tension applied to the seat belt webbing. It provides real-time data on tension levels, allowing the vehicle's safety systems to make informed decisions.
Seat belt tension sensors use various technologies, such as strain gauges, Hall effect sensors, or optical sensors, to measure the tension on the seat belt. These sensors generate an electrical signal proportional to the tension, which is then processed by the vehicle's control system.
The benefits include enhanced airbag deployment, improved occupant detection, optimized pretensioner activation, adaptive seat belt adjustment, enhanced safety for child seats, and integration with other safety systems.

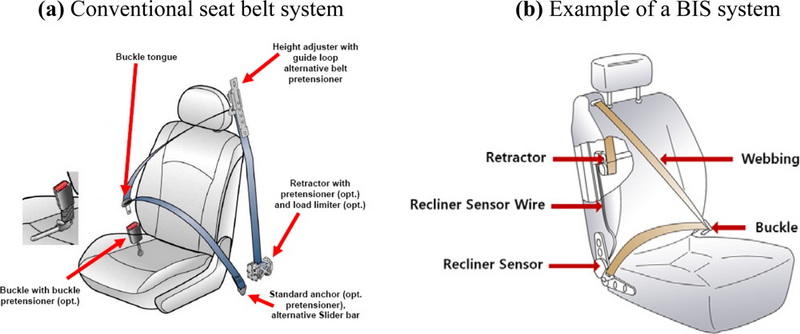

Seat belt tension sensors can be integrated into various components of the seat belt system, such as the buckle, retractor, or webbing.
Currently, seat belt tension sensors are not mandatory in all vehicles. However, they are becoming increasingly common as automakers seek to enhance passenger safety and meet stricter safety standards.
