Tension load cells are essential components in various industrial applications, providing accurate measurements of tensile forces. Understanding their key features is crucial for selecting the right sensor for your needs. This article will explore the primary characteristics of tension load cells, particularly focusing on low profile load cells, their working principles, and their applications.

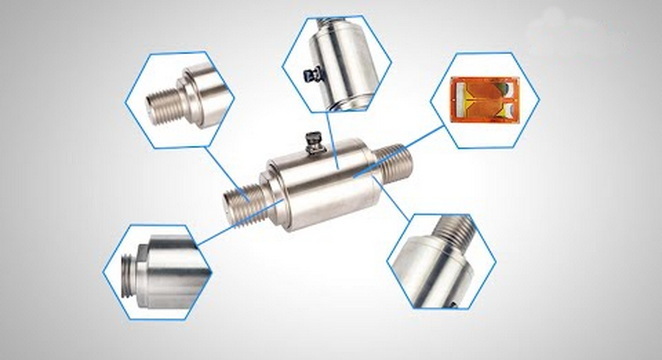

Tension load cells are specialized sensors designed to measure pulling forces. Unlike compression load cells, which measure forces pushing down on them, tension load cells are specifically built to handle tensile stress. They convert mechanical force into an electrical signal using strain gauges, which detect changes in resistance caused by deformation under load.

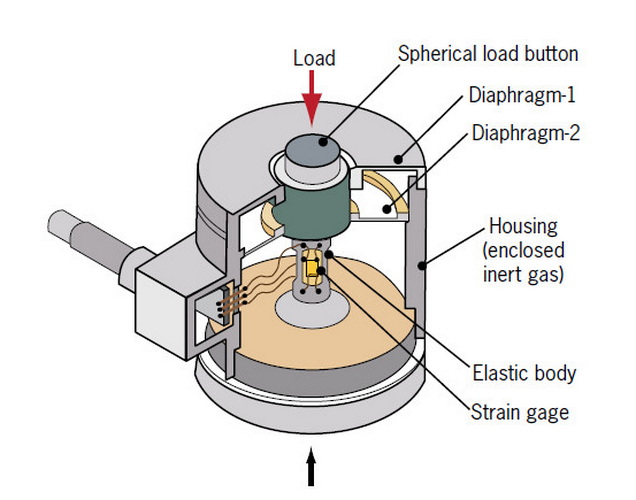

1. Strain Gauges: These sensors contain strain gauges arranged in a Wheatstone bridge configuration. When a tensile force is applied, the load cell deforms slightly, causing the strain gauges to stretch.
2. Change in Resistance: As the strain gauges stretch, their electrical resistance changes proportionally to the applied force.
3. Signal Conversion: The change in resistance alters the voltage output from the strain gauges, which is then processed by internal electronics to produce a readable signal corresponding to the applied force.
4. Output Measurement: The output can be displayed digitally on a meter or transmitted to a computer system for further analysis and monitoring.
When selecting a tension load cell, consider the following features:
- Load Capacity: Ensure that the load cell can handle the maximum weight or force without damage. This is critical for safety and reliability.
- Material Selection: Common materials include stainless steel and aluminum, which provide durability and resistance to environmental factors.
- Environmental Protection: Look for models with an appropriate IP rating to protect against dust and moisture ingress, especially in harsh environments.
- Calibration Requirements: Regular calibration is necessary for maintaining accuracy over time. Understand the calibration process for long-term reliability.
- Mounting Configuration: The design must accommodate specific mounting requirements based on how the load will be applied (e.g., inline or suspended).
Tension load cells come in various forms, each suited for specific applications:
- S-Type Load Cells: Shaped like an "S," these load cells can measure both tension and compression forces and are commonly used for suspended loads.
- Tension Links: Used in overhead crane systems, they can handle high capacities while providing accurate measurements.
- Canister Load Cells: These cylindrical devices can be designed for either tension or compression measurements and are often used in industrial applications.
- Pancake Load Cells: Low-profile devices ideal for applications with limited space that can measure high loads accurately.
Tension load cells have numerous applications across various industries:
- Crane and Hoist Weighing: Used to monitor loads lifted by cranes, ensuring safety and preventing overloads.
- Material Testing: Employed in laboratories to test the tensile strength of materials.

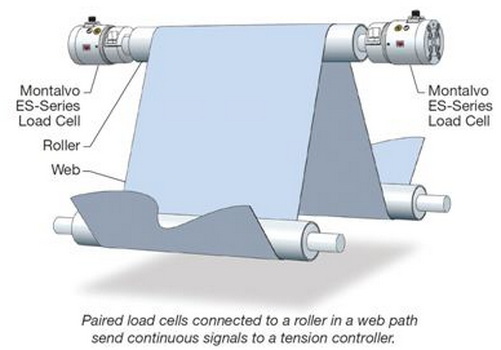

- Cable Tension Monitoring: Essential in construction projects where cable tension must be maintained for safety.
- Industrial Weighing Systems: Used in various manufacturing processes that require precise weight measurements.
Low profile load cells offer distinct advantages:
- Space Efficiency: Their compact design allows them to fit into tight spaces without sacrificing performance.
- High Accuracy: Despite their size, low profile load cells provide exceptional accuracy, making them suitable for critical applications.
- Versatility: Many low profile models can measure both tension and compression forces, enhancing their usability across different tasks.
Recent technological advancements have significantly improved the performance of tension load cells:
- Digital Signal Processing (DSP): Enhances signal accuracy and reduces noise interference during measurements.
- Wireless Communication: Many new models feature wireless capabilities, simplifying installation and reducing clutter.
- Smart Sensors: Integration with IoT technologies enables remote monitoring and data analysis, providing insights into operational efficiency.
Tension load cells are vital tools in measuring tensile forces across various industries. Their design considerations—including load capacity, material selection, environmental protection, calibration requirements, and mounting configuration—play a significant role in their effectiveness. With advancements in technology such as digital signal processing and wireless communication, modern tension load cells continue to evolve, offering greater accuracy and reliability for future applications.
By understanding these key features and advancements, you can make informed decisions when selecting a tension load cell that meets your specific needs.
A tension load cell is a type of sensor that measures pulling forces applied to it by converting mechanical force into an electrical signal using strain gauges.
It works by using strain gauges that change resistance when stretched under tensile force. This change is converted into an electrical signal proportional to the applied force.
Common applications include crane weighing systems, material testing labs, cable tension monitoring in construction, and various industrial weighing systems.
Types include S-type load cells, tension links, canister load cells, and pancake load cells—each suited for specific measurement needs.
Low profile load cells are space-efficient while providing high accuracy and versatility as they can measure both tension and compression forces effectively.
