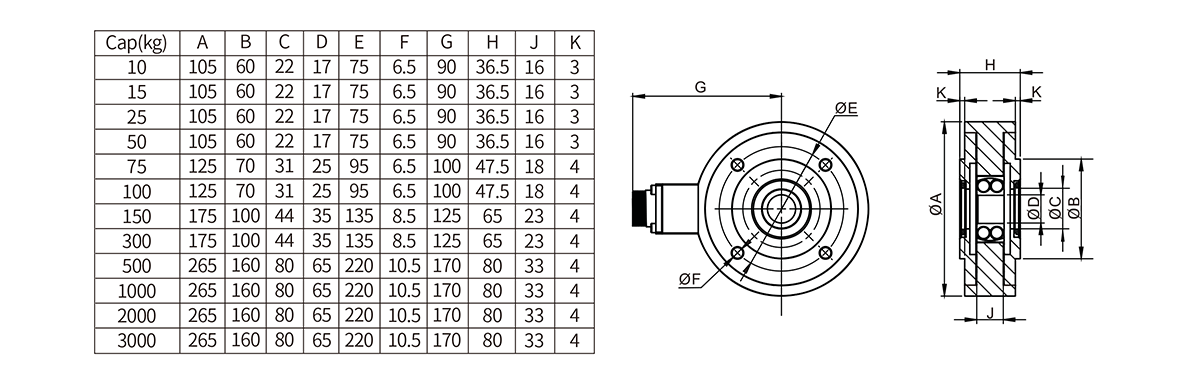

| Dimensions（Unit：mm） |
| We provide 3D model files of our products. Support |

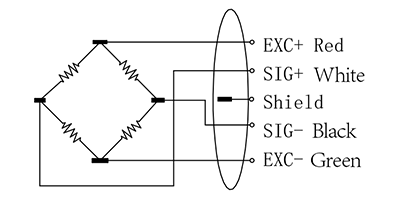

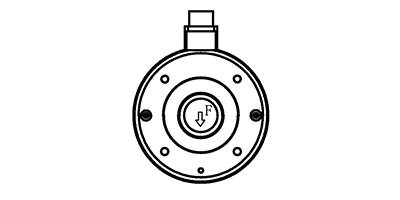

| Load Direction | Wiring |
 |
 |
| Specifications |
Specification |
Technique |
Capacity |
10~3000kg |
Sensitivity |
2.0±10%mV/V |
Zero balance |
±0.03mV/V |
Creep(30min) |
≤0.5%F.S. |
Non-linearity |
≤0.1%F.S. |
Hysteresis |
≤0.5%F.S. |
Repeatability |
≤0.25%F.S. |
Input impedance |
350±10Ω |
Output impedance |
350±5Ω |
Temp. effect on output |
0.1%F.S./10℃ |
Temp. effect on zero |
0.1%F.S./10℃ |
Insulation resistance |
≥5000MΩ/100V(DC) |
Recommended excitation |
5~12V |
Maximum excitation |
15V |
Operating temp. range |
0~50℃ |
Safe overload |
150%F.S. |
Ultimate overload |
500%F.S. |
| Function Feature |
▶ Due to its excellent kinematic characteristics, it is suitable for high-speed machinery and can measure accurately at low tensions.
▶ The detection element has good temperature characteristics and high linearity.
▶ Automatically compensates for deviations caused by temperature changes affecting the length of the tension roll.
▶ Suitable for through-axis mounting, taking up little space.
▶ Self-aligning ball bearings compensate for mechanical errors due to shaft mounting.
▶ The weight of the roll does not affect the measurement result when the measurement direction is horizontal.
| Delivery Configurations |
