In the realm of automated manufacturing, particularly in industries dealing with textiles, wires, cables, and other web-like materials, the automatic winder plays a pivotal role. These machines are responsible for winding materials onto spools, reels, or other formats for storage, transport, or further processing. A critical component in ensuring the quality and efficiency of the winding process is the automatic winder tension sensor. This sensor is responsible for monitoring and controlling the tension of the material being wound, preventing issues like uneven winding, stretching, breaks, and ultimately, product defects. This article delves into the key features to consider when selecting an automatic winder tension sensor, exploring the various types available, their functionalities, and the factors that contribute to optimal performance.
Why is Tension Control Important?
Maintaining consistent tension during the winding process is crucial for several reasons:
- Product Quality: Consistent tension ensures that the wound material is uniform and free from defects.
- Process Efficiency: Proper tension control minimizes downtime caused by material breaks or winding errors.
- Material Waste Reduction: By preventing breaks and ensuring proper winding, tension control reduces material waste.
- Machine Longevity: Consistent tension reduces stress on the winding machine components, extending their lifespan.
Types of Tension Control
There are two main types of tension control in winding systems: direct and indirect[17].

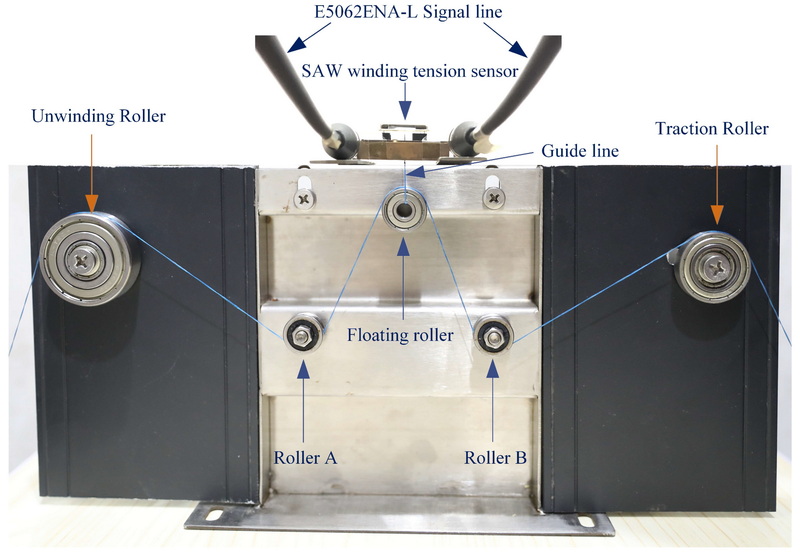

- Direct Tension Control: This method uses a tension sensor to directly measure the tension of the material being wound. The sensor's feedback is then used to adjust the winding motor's torque or speed to maintain the desired tension[15].
- Indirect Tension Control: This method relies on calculating the tension based on other parameters, such as the winding diameter, motor torque, and line speed. It does not use a direct tension sensor[7].
This article will focus on direct tension control, as it is the more precise and reliable method, especially for applications requiring tight tension tolerances.
When selecting an automatic winder tension sensor, several key features should be considered:
1. Accuracy and Repeatability
- Accuracy: The sensor's ability to provide a tension reading that is close to the actual tension of the material.
- Repeatability: The sensor's ability to provide consistent tension readings over time and under varying conditions.
High accuracy and repeatability are essential for maintaining consistent product quality and process efficiency[2]. Look for sensors with specifications that meet the specific tension requirements of your application. According to engineeringletters.com, a linear speed accuracy deviation setting of 0.2 m / min and a tension accuracy deviation of setting ±2N can meet most process requirements[1].
2. Sensing Technology
Several sensing technologies are used in automatic winder tension sensors, each with its own advantages and disadvantages:
- Load Cells: Load cells use strain gauges to measure the force applied by the material being wound[2]. They are known for their accuracy, reliability, and robustness. Different types of load cells are available, including:
- Standard Load Cell: Micro in nature and easily added to industrial equipment[2].
- S100 or S215: Sensor lines feature thin-film strain gauges supplying high-quality calculations while capable of being in repeatable measurements[2].
- Piezo-electric Sensors: These sensors use a piezoelectric element to measure the tension in the yarn[4]. They are known for their sensitivity and fast response time[4].
- Capacitive Sensors: These sensors monitor tension variations produced by electrical charges in the yarn[4].
- Optical Sensors: These sensors use an infrared beam to control the presence of yarn[4].
The choice of sensing technology depends on the specific application requirements, such as the type of material being wound, the tension range, and the required accuracy[24].
3. Measurement Range and Overload Capacity
- Measurement Range: The range of tension values that the sensor can accurately measure.
- Overload Capacity: The maximum tension that the sensor can withstand without being damaged.
Select a sensor with a measurement range that is appropriate for your application. It is also important to ensure that the sensor has sufficient overload capacity to withstand occasional tension spikes.
4. Response Time and Bandwidth
- Response Time: The time it takes for the sensor to respond to a change in tension.
- Bandwidth: The range of frequencies that the sensor can accurately measure.
A fast response time and a wide bandwidth are important for applications where the tension is constantly changing. This ensures that the sensor can accurately track the tension and provide timely feedback for control purposes[4].
5. Signal Conditioning and Output
The sensor's output signal needs to be conditioned and transmitted to the control system. Common output signals include:
- Analog Signals: Such as 4-20mA or 0-10V[2].
- Digital Signals: Such as Ethernet, USB, or Serial[2].
Select a sensor with an output signal that is compatible with your control system. Signal conditioner boards can also pair with load cells and offer a way for the customer to choose the way their data is reported and recorded[2]. The E120 Signal Conditioner Board outputs calculations to a 4 to 20 mA output, and the E110 Signal Conditioner Board allows for an I⊃2;C/VDC or 0 to 5 VDC output[2].
6. Size and Mounting
The size and mounting configuration of the sensor should be compatible with your winding machine. Consider factors such as:
- Available Space: Ensure that the sensor can be easily installed in the available space.
- Mounting Orientation: Select a sensor with a mounting orientation that is suitable for your application.
- Ease of Installation: Choose a sensor that is easy to install and maintain.
7. Environmental Considerations
The operating environment can affect the performance and lifespan of the sensor. Consider factors such as:
- Temperature: Select a sensor that is rated for the operating temperature range.
- Humidity: Choose a sensor that is resistant to humidity and moisture.
- Dust and Debris: Select a sensor that is protected from dust and debris.
- Vibration: Ensure that the sensor is resistant to vibration.
8. Calibration and Maintenance
- Calibration: Regular calibration is essential for maintaining the accuracy of the sensor[4].
- Maintenance: Proper maintenance can extend the lifespan of the sensor.
Select a sensor that is easy to calibrate and maintain.
9. Special Features
Some automatic winder tension sensors come with special features that can enhance their performance or functionality, such as:
- Automatic Calibration: Automatically calibrates the sensor at regular intervals.
- Temperature Compensation: Compensates for the effects of temperature on the sensor's output.
- Digital Filtering: Filters out noise and vibration from the sensor's output[4].
- Alarm Functions: Alerts the operator when the tension exceeds a pre-set limit[1].
10. Cost
The cost of an automatic winder tension sensor can vary depending on the features and performance. Consider your budget and select a sensor that offers the best value for your money.
Employing automatic winder tension sensors in winding equipment offers numerous benefits, including:
- Improved Product Quality: Consistent tension ensures that the wound material is uniform and free from defects.
- Increased Efficiency: Proper tension control minimizes downtime caused by material breaks or winding errors.
- Reduced Material Waste: By preventing breaks and ensuring proper winding, tension control reduces material waste.
- Extended Machine Life: Consistent tension reduces stress on the winding machine components, extending their lifespan.
- Enhanced Safety: Proper tension control can prevent accidents caused by material breaks or winding errors.
Application Examples
Automatic winder tension sensors are used in a wide variety of applications, including:
- Textile Industry: Winding yarn, thread, and fabric[24].
- Wire and Cable Industry: Winding wire, cable, and optical fiber[2].
- Paper and Film Industry: Winding paper, film, and foil.
- Converting Industry: Winding various materials, such as plastics, rubber, and composites.
The automatic winder tension sensor is a critical component in ensuring the quality and efficiency of winding processes. When selecting a tension sensor, it is important to consider factors such as accuracy, sensing technology, measurement range, response time, signal conditioning, size, environmental considerations, calibration, special features, and cost. By carefully evaluating these features, you can select a tension sensor that meets the specific requirements of your application and delivers optimal performance.
An automatic winder tension sensor is a device used to measure and control the tension of materials being wound onto a spool or reel. It provides feedback to the winding machine's control system, allowing it to adjust the winding parameters to maintain consistent tension[2].
Maintaining consistent tension during winding is crucial for ensuring product quality, process efficiency, material waste reduction, and machine longevity. Proper tension control prevents issues like uneven winding, stretching, breaks, and product defects[2].
Several types of tension sensors are available, including load cells, piezo-electric sensors, capacitive sensors and optical sensors. Load cells are known for their accuracy and reliability, while piezo-electric sensors offer fast response times. Capacitive sensors monitor tension variations produced by electrical charges in the yarn and optical sensors use an infrared beam to control the presence of yarn[4].
The choice of tension sensor depends on the specific requirements of your application, such as the type of material being wound, the tension range, the required accuracy, and the operating environment. Consider factors such as accuracy, sensing technology, measurement range, response time, signal conditioning, size, environmental considerations, calibration, special features, and cost when selecting a tension sensor[24].
The calibration frequency depends on the sensor type, the application, and the operating environment. It is generally recommended to calibrate the sensor at least once a year, or more frequently if the sensor is exposed to harsh conditions or experiences significant drift[4].
