Soil moisture is a critical factor in agriculture, environmental monitoring, and various other fields. The ability to accurately measure and manage soil water tension is essential for optimizing irrigation, preventing water waste, and ensuring healthy plant growth[1][2]. Water tension sensors, also known as soil moisture tension sensors, play a vital role in providing data for effective water management. Recent years have seen significant advancements in water tension sensor technology, driven by the need for more precise, reliable, and user-friendly solutions[7]. This article explores the latest innovations in water tension sensor technology, highlighting key developments and their impact on various applications.
Before diving into the innovations, it's important to understand what soil water tension is and why it matters. Soil water tension, also referred to as soil matric potential or soil suction, is the force required by a plant to extract water from the soil[1]. It is a measure of the energy plants must expend to overcome the forces holding water in the soil. These forces include:
- Adhesion: The attraction between water molecules and soil particles.
- Cohesion: The attraction between water molecules themselves.
- Gravity: The force pulling water downwards through the soil profile.
Soil water tension is typically measured in kilopascals (kPa)[2]. A low tension value (close to 0 kPa) indicates that the soil is wet and water is readily available to plants. As the soil dries out, the tension increases, indicating that plants need to work harder to extract water[2].
Traditional methods of measuring soil water tension include tensiometers and gypsum blocks[7][8].
- Tensiometers: These devices consist of a porous ceramic cup connected to a vacuum gauge. The cup is inserted into the soil, and water flows in or out of the cup until it reaches equilibrium with the surrounding soil. The vacuum gauge then measures the tension required to pull water from the soil[7].
- Gypsum Blocks: These blocks contain two electrodes embedded in gypsum. As the soil moisture changes, the electrical resistance between the electrodes varies. This resistance is then correlated to soil water tension[8].
While these traditional methods have been used for decades, they have limitations. Tensiometers require regular maintenance, such as refilling with distilled water, and are most effective in moderately dry to wet conditions[7]. Gypsum blocks, on the other hand, have a limited range and are not accurate in very wet or very dry soils[8].
Recent innovations in water tension sensor technology have focused on addressing the limitations of traditional methods and improving the accuracy, reliability, and ease of use of these sensors. Some of the key innovations include:
1. Granular Matrix Sensors (GMS)
Granular matrix sensors (GMS), such as the Watermark sensor, are an improved type of electrical resistance sensor[5]. These sensors consist of two electrodes embedded in a granular matrix[8]. The matrix is typically made of a uniform sand fill that maintains consistent contact with the surrounding soil. As the soil moisture changes, the electrical resistance between the electrodes varies, providing an indirect measurement of soil water tension[5].
Advantages of GMS:
- Wide Range: GMS can measure soil water tension within a range of 0 to 200 kPa, making them suitable for a variety of soil types and conditions[2].
- Low Maintenance: Compared to tensiometers, GMS require minimal maintenance.
- Affordable: GMS are relatively inexpensive, making them a cost-effective solution for soil moisture monitoring[1].
2. Digital Tensiometers
Digital tensiometers build upon the traditional tensiometer design by incorporating electronic pressure transducers[5]. These transducers provide a digital readout of soil water tension, eliminating the need for manual reading of a vacuum gauge. Digital tensiometers also offer the ability to log data over time, providing valuable insights into soil moisture trends.
Advantages of Digital Tensiometers:
- Accurate Readings: Digital pressure transducers provide more accurate and precise readings compared to traditional vacuum gauges.
- Data Logging: The ability to log data over time allows for continuous monitoring of soil moisture and the identification of trends.
- Remote Monitoring: Some digital tensiometers can be connected to wireless communication networks, enabling remote monitoring of soil moisture.
3. Wireless Soil Moisture Sensors

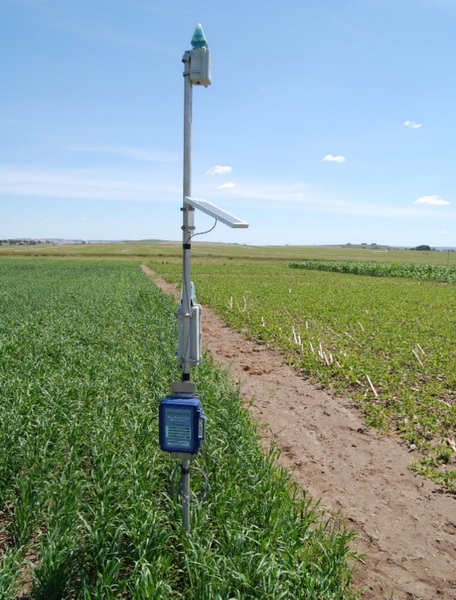

Wireless soil moisture sensors have revolutionized the way soil moisture is monitored. These sensors combine a GMS or digital tensiometer with a wireless communication module[4]. This allows for real-time monitoring of soil moisture from anywhere with an internet connection.
Advantages of Wireless Soil Moisture Sensors:
- Remote Monitoring: Wireless sensors enable users to monitor soil moisture from anywhere in the world.
- Real-Time Data: Data is transmitted in real-time, providing up-to-date information on soil moisture conditions.
- Automated Irrigation: Wireless sensors can be integrated with automated irrigation systems, allowing for precise control of water application based on soil moisture levels[4].
4. Internet of Things (IoT) Integration
The integration of water tension sensors with the Internet of Things (IoT) has opened up new possibilities for smart agriculture and environmental monitoring[4]. IoT-enabled sensors can transmit data to a central control system, which can then be used to optimize irrigation, detect leaks, and monitor environmental conditions[9].
Advantages of IoT Integration:
- Improved Efficiency: IoT-enabled sensors can help optimize water use, reducing waste and improving efficiency.
- Better Decision Making: Real-time data and analytics provide valuable insights for making informed decisions about irrigation and water management.
- Enhanced Sustainability: By optimizing water use, IoT-enabled sensors can contribute to more sustainable agricultural practices[4].
5. Advanced Sensor Materials
Recent advancements in sensor materials have led to improved performance and durability of water tension sensors[9]. For example, the use of corrosion-resistant materials like titanium or ceramic coatings has significantly extended the lifespan of these sensors[9]. Additionally, new materials have been developed that are more sensitive to changes in soil moisture, resulting in more accurate readings.
Advantages of Advanced Sensor Materials:
- Increased Durability: Corrosion-resistant materials extend the lifespan of sensors, reducing the need for frequent replacement.
- Improved Accuracy: New materials are more sensitive to changes in soil moisture, resulting in more accurate readings.
- Reduced Maintenance: Advanced materials require less maintenance, saving time and resources.
Water tension sensor technology is used in a wide range of applications, including:
- Agriculture: Monitoring soil moisture to optimize irrigation and improve crop yields[4].
- Environmental Monitoring: Tracking soil moisture levels to assess drought conditions and prevent soil erosion.
- Construction: Monitoring soil moisture to ensure the stability of foundations and prevent landslides.
- Sports Turf Management: Maintaining optimal soil moisture levels for healthy turf growth on golf courses and sports fields.
- Research: Studying the effects of soil moisture on plant growth and ecosystem processes[1].
1. Precision Irrigation in Agriculture
A study conducted by the University of California, Davis, found that using water tension sensors to guide irrigation scheduling in almond orchards resulted in a 20% reduction in water use without compromising yield. The sensors provided real-time data on soil moisture levels, allowing growers to apply water only when needed.
2. Drought Monitoring in Environmental Science
The National Drought Mitigation Center uses water tension sensors as part of its drought monitoring network. The sensors provide valuable data on soil moisture conditions, helping to identify areas at risk of drought and inform drought management strategies.
3. Landslide Prevention in Construction
The Hong Kong Geotechnical Engineering Office uses water tension sensors to monitor soil moisture levels on steep slopes. The sensors provide early warning of potential landslides, allowing engineers to take preventative measures to stabilize the slopes.
The field of water tension sensor technology is constantly evolving. Some of the key trends to watch include:
- Miniaturization: Sensors are becoming smaller and more portable, making them easier to deploy in a variety of settings[9].
- Artificial Intelligence (AI): AI is being used to analyze data from water tension sensors and provide predictive insights into soil moisture conditions.
- Improved Integration: Sensors are being integrated with other environmental monitoring tools, such as weather stations and remote sensing platforms, to provide a more comprehensive view of environmental conditions.
Water tension sensor technology has come a long way in recent years. From traditional tensiometers and gypsum blocks to advanced granular matrix sensors, digital tensiometers, and wireless IoT-enabled devices, the options for monitoring soil moisture are more diverse and sophisticated than ever before. These innovations are helping to optimize irrigation, prevent water waste, and ensure healthy plant growth in a variety of applications. As technology continues to evolve, we can expect to see even more innovative solutions for water tension monitoring in the years to come.
Soil water tension, also known as soil matric potential, is the amount of energy a plant must use to extract water from the soil[1]. It is measured in kilopascals (kPa), with lower values indicating wetter soil and higher values indicating drier soil[2].
Water tension sensors measure the force required to remove water from the soil. Different types of sensors use different methods, such as measuring electrical resistance or vacuum pressure, to determine soil water tension[5][7].
Using water tension sensors can help optimize irrigation, prevent water waste, improve crop yields, and monitor environmental conditions[4].
The choice of water tension sensor depends on several factors, such as the type of soil, the crops being grown, and the level of accuracy required. Granular matrix sensors are a good option for general use, while digital tensiometers provide more accurate readings[5]. Wireless sensors are ideal for remote monitoring[4].
The installation and maintenance of water tension sensors vary depending on the type of sensor. Generally, sensors should be installed at the root zone of the plants being monitored and should be checked regularly for proper functioning. Tensiometers may need to be refilled with distilled water periodically[7].
