A belt tension sensor is a crucial component in many mechanical systems, ensuring optimal performance and preventing potential damage. These sensors monitor the tension of belts, which are used to transmit power in a variety of applications, from automotive engines to industrial machinery. When a belt tension sensor fails, it can lead to decreased efficiency, increased wear and tear, and even system failure. Understanding the causes of these failures is essential for maintenance, troubleshooting, and preventing future issues.
Before diving into the causes of failure, it's important to understand what belt tension sensors are and how they function. A belt tension sensor measures the amount of force applied to a belt. This measurement is critical because belts need to be under the correct tension to operate efficiently and safely. If a belt is too loose, it can slip, causing a loss of power transmission. If it's too tight, it can lead to excessive wear on the belt and the components it drives, such as bearings and pulleys[8].
There are several types of belt tension sensors, each with its own method of measuring tension:
1. Mechanical Tension Sensors: These use mechanical means, such as springs or levers, to measure the tension. They are often simple and reliable but may not be as accurate as other types.
2. Electrical Tension Sensors: These sensors use strain gauges or other electrical components to measure the tension. They offer higher accuracy and can be integrated into electronic control systems.
3. Sonic Tension Meters: These devices measure the tension by analyzing the sound waves produced when the belt is plucked. They are non-contact and can provide accurate measurements quickly[2].
Several factors can contribute to the failure of a belt tension sensor. These can be broadly categorized into environmental factors, mechanical issues, electrical problems, and maintenance-related issues.
The environment in which a belt tension sensor operates can significantly affect its lifespan and performance.
- Temperature Extremes: High and low temperatures can cause the materials in the sensor to expand or contract, leading to inaccurate readings or physical damage. Extreme heat can degrade the sensor's internal components, while extreme cold can cause them to become brittle[8].
- Humidity and Moisture: Moisture can corrode the sensor's electrical connections and internal components, leading to signal degradation or complete failure. High humidity levels can also promote the growth of mold and mildew, which can further damage the sensor.
- Chemical Exposure: Exposure to chemicals, such as solvents, oils, and corrosive substances, can degrade the sensor's materials and cause them to fail. In industrial environments, sensors may come into contact with a variety of chemicals, making this a common cause of failure.
- Dust and Debris: Dust, dirt, and other debris can accumulate on the sensor, interfering with its operation. This is particularly problematic for mechanical sensors, where debris can clog moving parts and prevent accurate measurements.
Mechanical problems are another significant cause of belt tension sensor failure.
- Wear and Tear: Over time, the mechanical components of the sensor can wear out due to constant use. This is especially true for sensors with moving parts, such as springs and levers.
- Vibration: Constant vibration can cause the sensor's components to loosen or break. This is a common issue in automotive and industrial applications, where machinery is subject to high levels of vibration[8].
- Physical Damage: Impact or other physical damage can cause the sensor to malfunction. This can occur during installation, maintenance, or operation if the sensor is struck by an object.
- Belt Misalignment: If the belt is not properly aligned, it can put undue stress on the sensor, leading to premature failure. Misalignment can also cause the belt to rub against the sensor, causing wear and tear[1].
Electrical issues can also lead to belt tension sensor failure, particularly in electrical tension sensors.
- Wiring Issues: Damaged, frayed, or poorly connected wires can cause signal loss or short circuits. This can result in inaccurate readings or complete sensor failure[1].
- Voltage Fluctuations: Variations in voltage can damage the sensor's internal components, leading to malfunction. This is especially problematic in systems with unstable power supplies.
- Electromagnetic Interference (EMI): EMI from nearby electrical equipment can interfere with the sensor's signals, causing inaccurate readings. Shielding the sensor and its wiring can help mitigate this issue.
- Component Failure: Internal electrical components, such as resistors, capacitors, and integrated circuits, can fail due to age, heat, or other factors. This can result in complete sensor failure.
Improper maintenance practices can also contribute to belt tension sensor failure.
- Incorrect Installation: Installing the sensor incorrectly can cause it to malfunction or fail prematurely. It is important to follow the manufacturer's instructions carefully when installing a belt tension sensor.
- Lack of Calibration: Over time, sensors can drift out of calibration, leading to inaccurate readings. Regular calibration is essential to ensure accurate measurements[7].
- Over-Tensioning: Applying too much tension to the belt can damage the sensor and the belt itself. It is important to adhere to the manufacturer's recommended tension levels.
- Neglecting Regular Inspections: Failing to regularly inspect the sensor and the belt drive system can allow problems to go unnoticed until they cause a failure. Regular inspections can help identify potential issues early on.
Diagnosing a failed belt tension sensor can be challenging, but there are several steps you can take to identify the problem.
1. Visual Inspection: Start by visually inspecting the sensor for any signs of physical damage, such as cracks, breaks, or corrosion. Also, check the wiring for any damage or loose connections[1].
2. Check Sensor Output: Use a multimeter or other testing device to check the sensor's output signal. Compare the output to the manufacturer's specifications to see if it is within the acceptable range.
3. Inspect the Belt and Pulleys: Check the belt for signs of wear, such as cracks, fraying, or glazing. Also, inspect the pulleys for any damage or misalignment[4].
4. Use a Sonic Tension Meter: A sonic tension meter can be used to measure the belt tension and compare it to the recommended levels. This can help determine if the sensor is providing accurate readings[2].
5. Consult Error Codes: If the sensor is part of an electronic control system, check for any error codes that may indicate a problem with the sensor.
Preventing belt tension sensor failure involves implementing a proactive maintenance program and addressing the common causes of failure.
1. Regular Inspections: Conduct regular visual inspections of the sensor, belt, and pulleys. Look for any signs of damage, wear, or misalignment[1].
2. Proper Installation: Ensure that the sensor is installed correctly, following the manufacturer's instructions. Use the correct tools and techniques to avoid damaging the sensor.
3. Calibration: Calibrate the sensor regularly to ensure accurate readings. The frequency of calibration will depend on the application and the sensor's specifications[7].
4. Maintain Proper Belt Tension: Adhere to the manufacturer's recommended belt tension levels. Use a tension gauge or sonic tension meter to verify the tension.
5. Protect from Environmental Factors: Protect the sensor from extreme temperatures, humidity, chemicals, and dust. Use enclosures or coatings to shield the sensor from these elements.
6. Address Vibration: Minimize vibration by using vibration-dampening mounts and ensuring that machinery is properly balanced.
7. Use Quality Components: Use high-quality belts, pulleys, and sensors to ensure reliable performance and long life.
8. Follow Maintenance Schedules: Adhere to the manufacturer's recommended maintenance schedules for the belt drive system. This includes lubricating moving parts, replacing worn components, and adjusting belt tension.

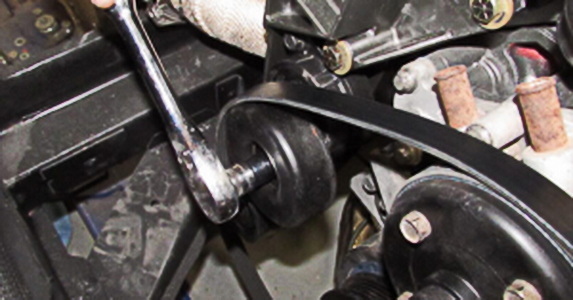

In an automotive engine, the belt tension sensor monitors the tension of the serpentine belt, which drives the alternator, power steering pump, and air conditioning compressor. A failed sensor can lead to the belt slipping, causing these components to malfunction.
- Problem: The driver notices that the air conditioning is not working properly and the battery is not charging. The check engine light is also illuminated.
- Diagnosis: A visual inspection reveals that the belt is slipping. A scan of the engine control unit (ECU) shows an error code related to the belt tension sensor.
- Solution: The belt tension sensor is replaced, and the belt tension is adjusted to the manufacturer's specifications. The air conditioning and charging systems return to normal operation.
In an industrial conveyor system, the belt tension sensor monitors the tension of the conveyor belt, ensuring that it moves smoothly and efficiently. A failed sensor can cause the belt to slip, leading to production delays.
- Problem: The conveyor belt is slipping, causing products to fall off the line. The system is also making unusual noises.
- Diagnosis: A visual inspection reveals that the belt tension sensor is corroded and not providing accurate readings.
- Solution: The belt tension sensor is replaced with a new, corrosion-resistant model. The belt tension is adjusted, and the conveyor system returns to normal operation.
A belt tension sensor is a critical component in many mechanical systems, ensuring optimal performance and preventing potential damage. Understanding the causes of belt tension sensor failure—including environmental factors, mechanical issues, electrical problems, and maintenance-related issues—is essential for effective maintenance and troubleshooting. By implementing a proactive maintenance program, conducting regular inspections, and addressing the common causes of failure, you can extend the life of your belt tension sensors and ensure the reliable operation of your mechanical systems.

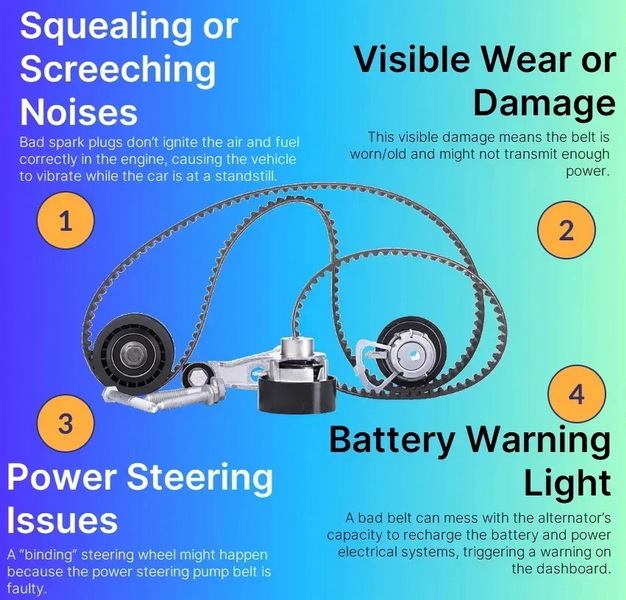

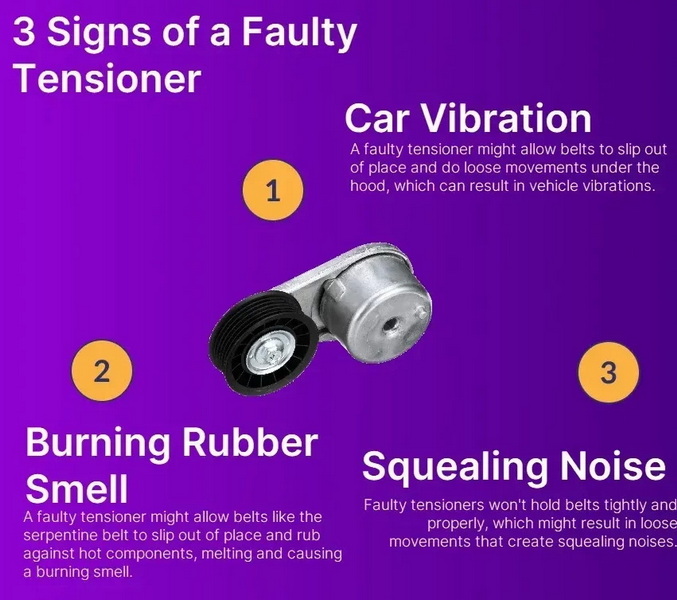

Symptoms of a failing belt tension sensor can include belt slippage, noise, vibration, and component malfunction. In automotive applications, this can manifest as a malfunctioning air conditioning system, charging problems, or illumination of the check engine light[4]. In industrial settings, it can lead to production delays and equipment damage.
The frequency of calibration depends on the application and the sensor's specifications. Generally, it is recommended to calibrate belt tension sensors every six months to one year. However, sensors in critical applications or harsh environments may require more frequent calibration[7].
Yes, a faulty belt tension sensor can cause other components to fail. If the sensor is not providing accurate readings, the belt may be too loose or too tight, leading to excessive wear on the belt, pulleys, and driven components. This can result in premature failure of these components[8].
The best way to protect a belt tension sensor from environmental factors is to use enclosures or coatings to shield the sensor from extreme temperatures, humidity, chemicals, and dust. Corrosion-resistant materials and sealed connectors can also help protect the sensor from damage[5].
Yes, there are different types of belt tension sensors for different applications. Mechanical tension sensors are often used in simple applications where high accuracy is not required. Electrical tension sensors are used in applications where high accuracy and integration with electronic control systems are needed. Sonic tension meters are used for quick and non-contact measurements[2].
