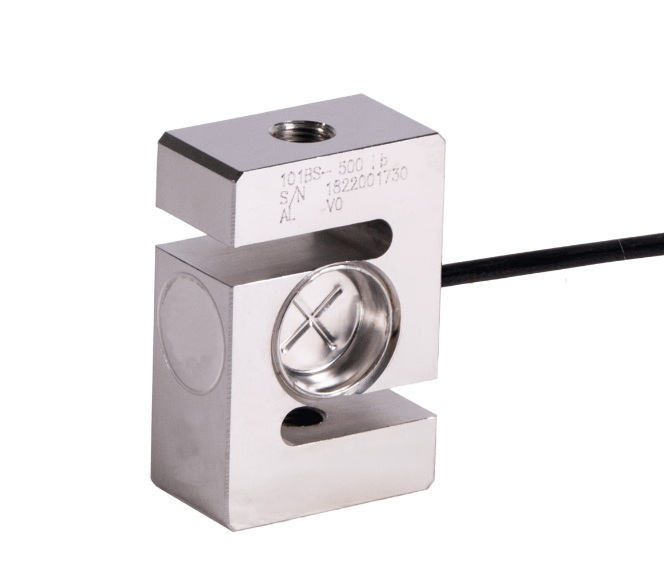

The 101NH S-Beam Load Cell is a versatile and reliable measurement device that excels in both tension and compression applications. Its unique design and advanced features make it a preferred choice across various industries. This article explores the industries that benefit the most from using the 101NH S-Beam Load Cell, highlighting its applications, advantages, and key specifications.

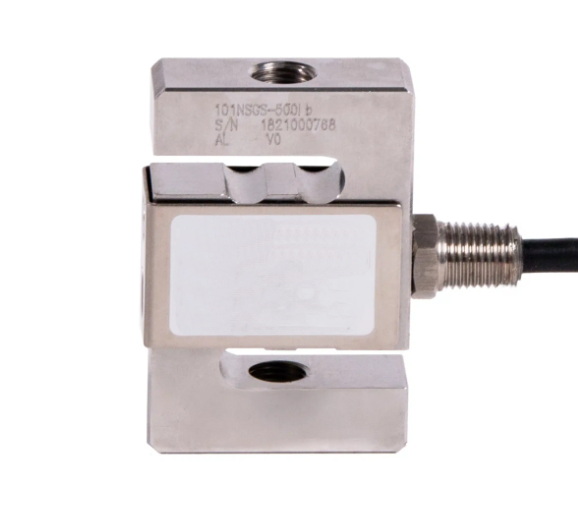

The 101NH S-Beam Load Cell is designed to provide accurate weight measurements in a compact form. It is made from durable alloy steel, features an IP67 rating for water resistance, and is NTEP approved, ensuring compliance with industry standards. The load cell can handle rated capacities ranging from 50 lb to 20,000 lb, making it suitable for various applications.
- Material: Alloy Steel
- Rated Capacities: 50 lb to 20,000 lb
- Full Scale Output: 3 mV/V ± 1%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP67 (water-resistant)
- NTEP Certified: Yes
The versatility of the 101NH S-Beam Load Cell allows it to be used in a wide range of industries. Here are some of the key sectors that benefit significantly:
In manufacturing environments, precision and reliability are crucial. The 101NH S-Beam Load Cell is used for:
- Weighing raw materials during production.
- Monitoring product weights for quality control.
- Ensuring accurate measurements in automated systems.
The food industry requires stringent weight measurements for compliance with regulations. The load cell is utilized for:
- Accurate portion control in packaging lines.
- Monitoring ingredient weights during processing.
- Ensuring compliance with food safety standards.
In construction, accurate weight measurements are critical for safety and efficiency. The 101NH S-Beam Load Cell is employed for:
- Monitoring loads on cranes and hoists.
- Weighing construction materials during transport.
- Ensuring safety by preventing overload situations.
In logistics, accurate weight measurements facilitate better inventory management and shipping processes. Applications include:
- Weighing packages accurately for shipping.
- Monitoring cargo weights to ensure compliance with regulations.
- Optimizing load distributions in transport vehicles.
In the medical field, precise weight measurements are essential for patient safety. The load cell is used in:
- Patient lifting systems to ensure safe weight measurements.
- Dialysis machines to monitor patient weights accurately.
- Laboratory equipment for precise material testing.
The adoption of the 101NH S-Beam Load Cell offers several compelling advantages:
The load cell provides exceptional accuracy, making it ideal for applications where precise measurement is critical. This is particularly important in industries such as pharmaceuticals and aerospace, where even minor measurement errors can lead to significant issues.
Its ability to measure both tension and compression forces allows it to serve multiple purposes within a single system. This flexibility simplifies inventory management and reduces maintenance costs.
The compact size of the 101NH S-Beam Load Cell allows for easy installation in tight spaces, making it ideal for applications where space is limited.
Constructed from high-quality materials and featuring overload protection, the load cell ensures reliability even under harsh conditions. Its IP67 rating provides additional protection against dust and moisture.
The versatility of the 101NH S-Beam Load Cell allows it to be integrated into various systems across different industries:
- Industrial Weighing Systems: Used in scales for weighing goods in warehouses and retail environments.
Industrial Weighing System
- Material Testing: Employed in laboratories to test the strength and durability of materials under load.
Material Testing
- Automation Systems: Used in robotic applications for precise force measurement during operations.
Automation Systems
The 101NH S-Beam Load Cell is an indispensable tool across various industries due to its adaptability, accuracy, and durability. Its unique design allows it to measure both tension and compression forces effectively, making it suitable for a wide range of applications from industrial weighing systems to medical devices. As industries continue evolving towards automation and smart technologies, the role of the 101NH S-Beam Load Cell will likely expand further, providing critical data that drives operational efficiency and product quality across sectors.

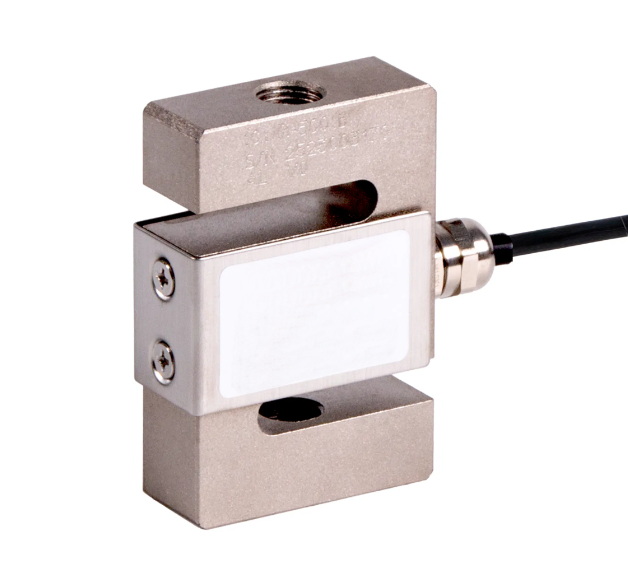

An S-beam load cell is a type of load cell designed to measure both tension and compression forces. Its unique "S" shape allows it to provide accurate readings in a compact form factor.
The 101NH works by converting mechanical force into an electrical signal through strain gauges attached to its beam. When a load is applied, the beam deforms slightly, changing the resistance of the strain gauges which generates a proportional electrical signal.
Common applications include industrial weighing systems, material testing laboratories, medical devices, automation systems, construction monitoring, and logistics management.
Installation involves securely mounting the load cell using its threaded holes, connecting the electrical wiring according to manufacturer specifications, and calibrating it using known weights to ensure accuracy.
Factors such as environmental conditions (temperature and humidity), improper installation (misalignment), overloading beyond capacity, and lack of regular calibration can all impact performance.
