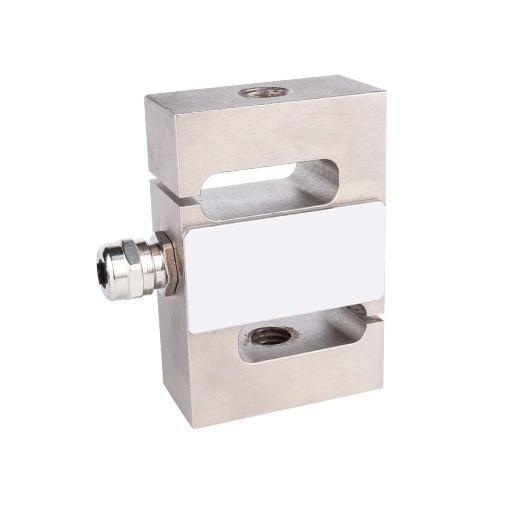

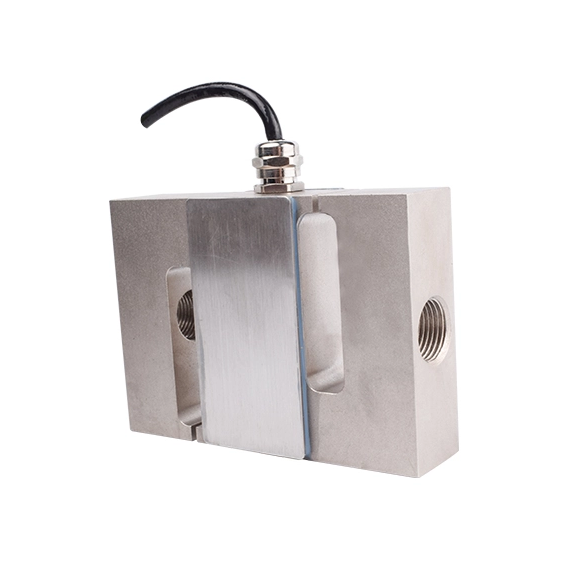

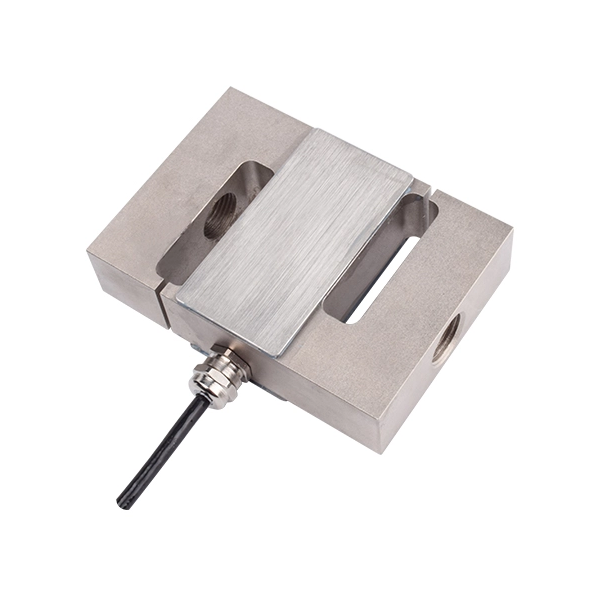

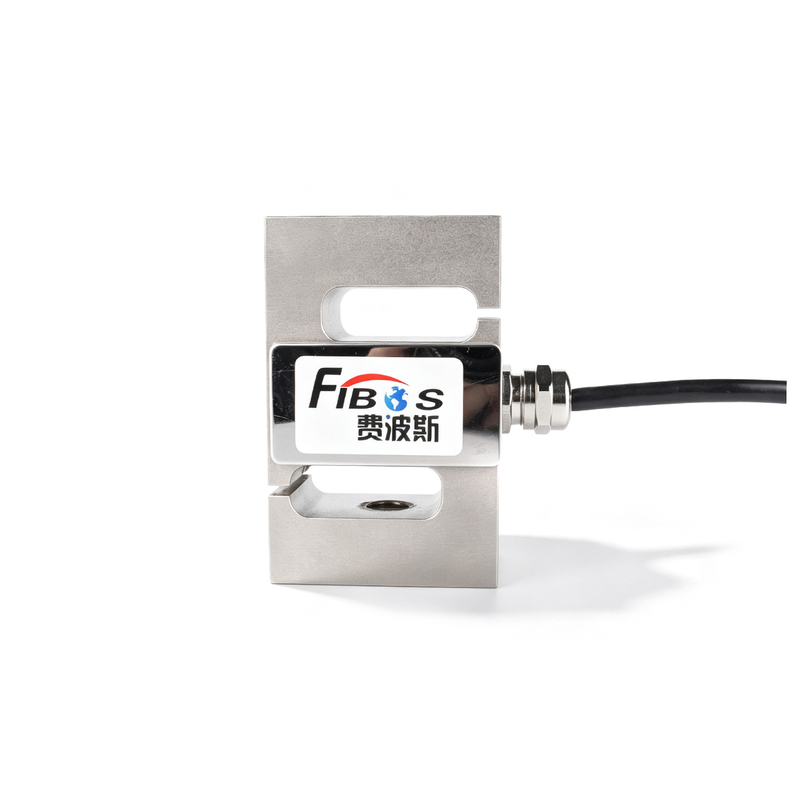

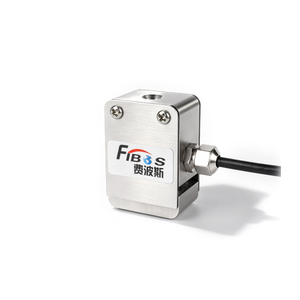

Alloy Steel S Beam Load Cell

Push and pull gauges; hopper scales; various industrial weighing and force measurement systems, etc.

Model:
FA307
Brand:
FIBOS
Capacity:
25,50,100,200,250,500kg 0.75,1,1.5,2,2.5,5,10t
Accuracy:
≤0.03%F.S.
Dimensions:
See the detailed dimensions table
Material:
Alloy Steel


Availability:



Inquire

Product Description

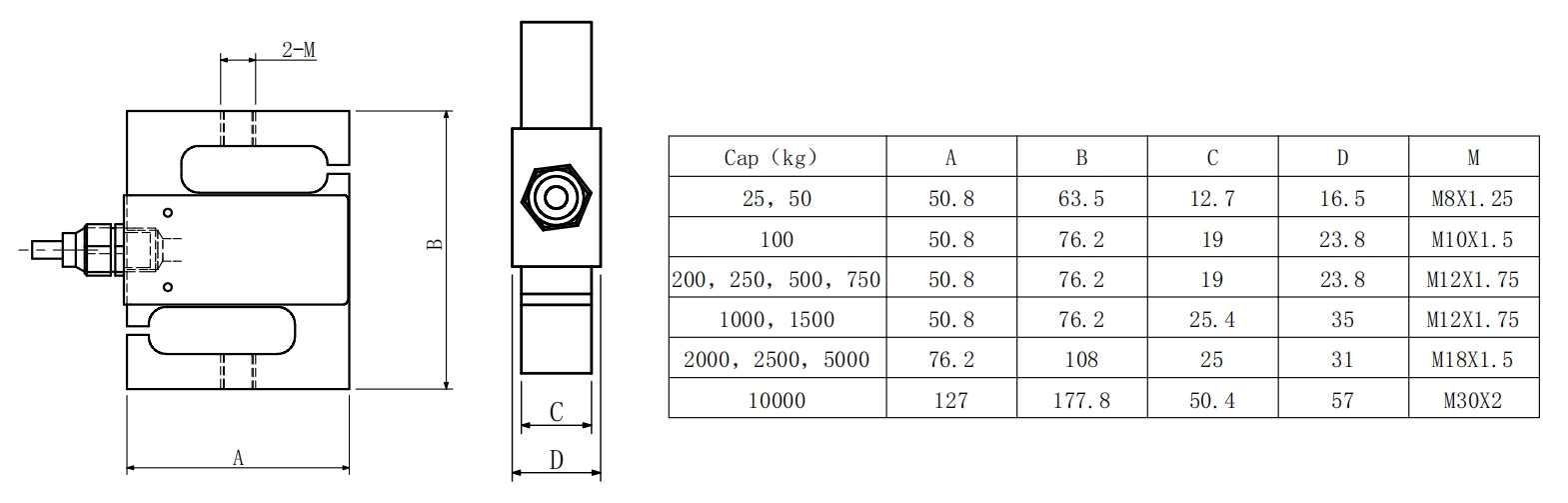

Dimensions（Unit：mm）

We provide 3D model files of our products.

Support to facilitate your design of workpiece.

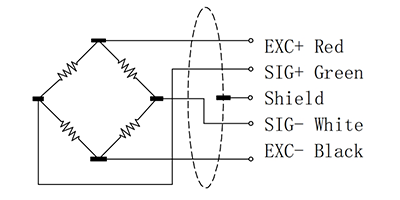

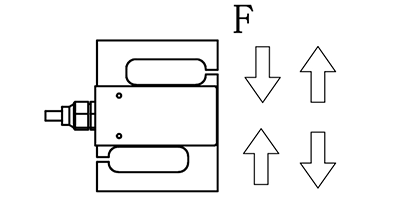

Load Direction	Wiring

Specifications

Specifications	Technique
Capacity	25,50,100,200,250,500kg 0.75,1,1.5,2,2.5,5,10t
Sensitivity	2.0/3.0±1%mV/V
Zero balance	±0.03%mV/V
Creep	≤0.024%F.S.
Non-linearity	≤0.03%F.S.
Hysteresis	≤0.03%F.S.
Repeatability	≤0.03%F.S.
Input impedance	385±10Ω
Output impedance	350±5Ω
Temp. effect on output	0.05%F.S./10℃
Temp. effect on zero	0.05%F.S./10℃
Insulation resistance	≥5000MΩ/100V(DC)
Recommended excitation	5~15V
Maximum excitation	20V
Compensated temp. range	-10~40℃
Operating temp. range	-30~70℃
Safe overload	150%F.S.
Ultimate overload	300%F.S.
Cable size	Φ5x3000mm
Material	Alloy Steel

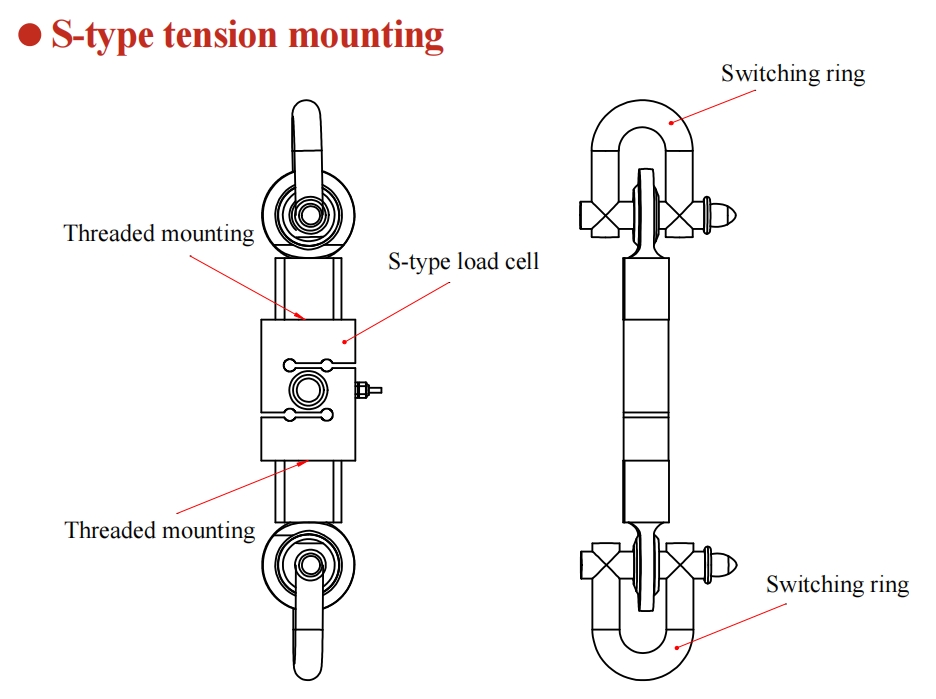

Installation

Delivery Configurations

Micro Compression Load Cell
