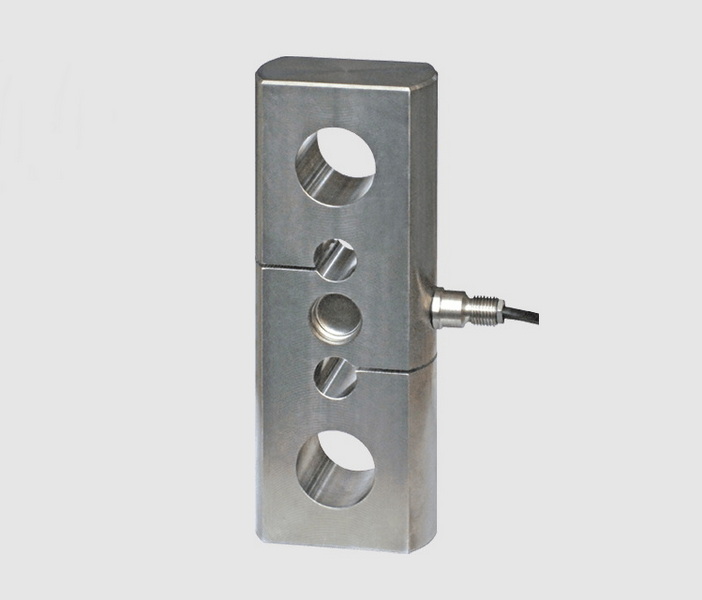

Tension load cells are indispensable tools for measuring tensile forces in industries ranging from aerospace to manufacturing. Comprehensive PDF documents provided by manufacturers serve as critical resources for installation, calibration, and maintenance. Below, we explore the typical contents of a tension load cell PDF, integrating technical specifications, application examples, and safety protocols to create a detailed 2,400+ word guide.

1. Technical Specifications

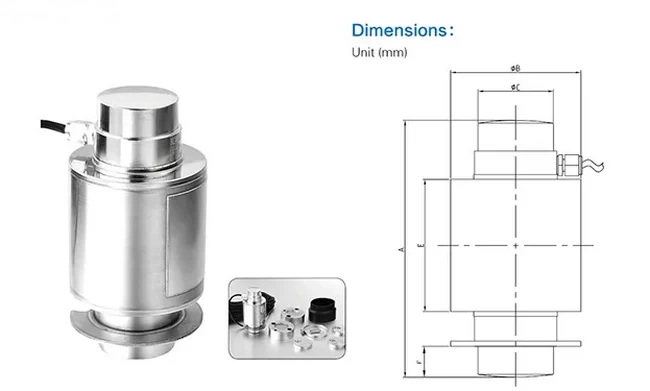

A tension load cell PDF begins with technical specifications, defining the device's operational limits and performance metrics. Key details include:

- Capacity range: From 44 lb (20 kg) to 110,231 lb (50,000 kg) in high-capacity models like Anderson-Negele's TC1 and TC2[1].

- Accuracy class: Non-linearity of <0.03% for precision models[1].

- Material composition: Alloy steel with nickel plating for corrosion resistance or stainless steel (IP66/IP67-rated)[3].

- Electrical properties: Input resistance of 350–800 Ω, excitation voltage of 10–15 VDC[1][3].

- Environmental ratings: IP67 sealing for water/dust protection[1][18].

2. Installation Guidelines

Proper installation ensures accuracy and longevity. PDFs typically cover:

- Alignment requirements: Forces must act along the central axis to prevent side-loading errors[5][32].

- Mounting hardware: Use of eyebolts, shackles, or rod ends rated for the load capacity[1][5].

- Torque specifications: Avoid over-tightening; follow manufacturer guidelines (e.g., 50–100 N·m for threaded rods)[4][31].

- Cable management: Shielded cables reduce electrical noise; 6-wire configurations compensate for voltage drops[6][39].

Video tutorial on installing a tension load cell:

3. Wiring and Signal Processing

Wiring diagrams and signal conditioning details are critical for integration:

- Strain gauge configurations: Full Wheatstone bridge setups for sensitivity[79][88].

- Color codes: Red (E+), Black (E–), Green (S+), White (S–)[39][85].

- Signal amplification: Use HX711 or FUTEK amplifiers to convert mV/V outputs to digital signals[7][40].

- Shielding: Ground the shield wire to minimize EMI interference[38][85].

Example 6-wire configuration for long-distance applications:

Wire Color	Function
Red	Excitation+ (E+)
Black	Excitation– (E–)
Green	Signal+ (S+)
White	Signal– (S–)
Yellow	Sense+
Blue	Sense–

4. Calibration Protocols

PDFs outline calibration methods to ensure precision:

- Deadweight calibration: Use certified weights for linearity checks[9][50].

- Temperature compensation: Adjust for thermal drift in extreme environments[2][90].

- Multipoint calibration: Test at 0%, 25%, 50%, 75%, and 100% capacity[51][92].

- Calibration frequency: Annual for standard use; quarterly in critical applications like aerospace[8][94].

Video demonstrating calibration with quick-change adapters:

5. Application Case Studies

Manufacturers highlight real-world implementations:

- Suspended vessel weighing: Monitoring chemical tank inventory with TC1 cells[1][10].

- Crane load testing: Ensuring safety in lifting operations with BROSA's 8,000 kN models[18][63].

- Textile manufacturing: Maintaining yarn tension using S-type load cells[95][96].

- Marine applications: Measuring mooring line forces with ATEX-certified sensors[15][77].

6. Safety and Compliance

PDFs emphasize adherence to international standards:

- Legal-for-trade certifications: NTEP (USA) and OIML R60 (global)[12][14].

- ATEX/IECEx approvals: For explosive environments (e.g., oil and gas)[15][69].

- Safety factors: Use SWL = Rated Load ÷ 4 to prevent overloads[99][13].

- Secondary safety systems: Install backup strops or chains parallel to load cells[13][70].

7. Troubleshooting and Maintenance

Common issues and solutions are addressed:

- Signal drift: Check for loose connections or ground loops[4][93].

- Mechanical binding: Inspect alignment and lubricate moving parts[5][48].

- Overload recovery: Recalibrate after exceeding 150% capacity[13][20].

- Environmental damage: Clean debris and apply anti-corrosion coatings[48][91].

8. Advanced Topics

8.1 Load Cell Types

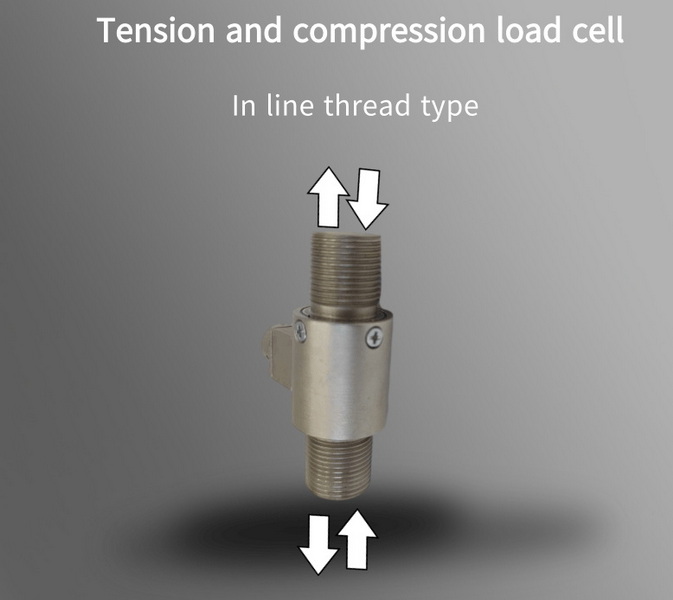

- S-Type: Measures bidirectional forces (tension/compression) in compact spaces[11][27].

- Hydraulic: Uses fluid pressure for dynamic force measurement in harsh conditions[56][66].

- Capacitive: Eilersen's TM series offers 1,000% overload tolerance and IP67 sealing[77].

8.2 Signal Processing Innovations

- Digital load cells: Integrate microprocessors for self-diagnosis and temperature compensation[84][76].

- Wireless systems: BROSA's Radiolink Plus transmits data via Bluetooth in hazardous zones[15][77].

Conclusion

A tension load cell PDF is an essential manual, offering technical specs, wiring diagrams, and compliance guidelines. By adhering to these documents, users optimize performance, extend equipment lifespan, and ensure safety. For specialized applications, consult manufacturer-specific resources from Flintec, Interface Force, or Eilersen[10][63][77].

FAQs

1. What key sections should I look for in a tension load cell PDF?

Prioritize technical specifications, installation steps, calibration procedures, and safety certifications[1][4][8].

2. How do I prevent side-loading errors?

Use rod ends or clevis mounts to align forces axially; avoid overtightening hardware[32][82].

3. What does "IP67" mean in load cell specs?

IP67 denotes dust-tight and waterproof protection up to 1 meter depth[1][18].

4. How do I calibrate a load cell without certified weights?

Use a reference sensor or master load cell; avoid methods that compromise accuracy[9][50].

5. Where can I download tension load cell PDFs?

Manufacturers like Anderson-Negele, Flintec, and Eilersen provide free downloads[1][10][77].
