An ultra-small load cell for tension measurement is a compact sensor designed to accurately measure tensile forces in applications where space is limited or weight is a critical factor. These load cells are engineered to provide precise measurements while maintaining a minimal footprint, making them ideal for integration into various devices and systems. This article delves into the characteristics, applications, and advantages of ultra-small load cells for tension measurement, providing a comprehensive understanding of their role in modern technology and engineering.
A load cell is a transducer that converts a mechanical force into an electrical signal. This conversion enables the measurement and quantification of forces such as tension, compression, shear, and torque. Load cells are widely used in various industries, including manufacturing, aerospace, automotive, and healthcare, for applications ranging from simple weighing to complex force measurement in research and development[4].
Load cells come in various types, each designed to suit specific applications and measurement requirements. The primary types include:
- Strain Gauge Load Cells: These are the most common type, employing strain gauges bonded to a deformable body. The strain gauges measure the deformation caused by the applied force, which is then converted into an electrical signal[2].
- Piezoresistive Load Cells: These use piezoresistive materials that change their electrical resistance when subjected to mechanical stress.
- Capacitive Load Cells: These measure force by detecting changes in capacitance caused by the displacement of a sensing element.
- Hydraulic Load Cells: These use hydraulic pressure to measure force, suitable for high-capacity applications.
- Pneumatic Load Cells: These use air pressure to measure force, often used in intrinsically safe environments.
In many modern applications, the demand for smaller, lighter, and more efficient devices is ever-increasing. This trend has driven the development of miniature load cells, which offer the same functionality as their larger counterparts but in a significantly smaller package[2]. Ultra-small load cells represent the pinnacle of this miniaturization, providing force measurement capabilities in the most constrained environments[1].

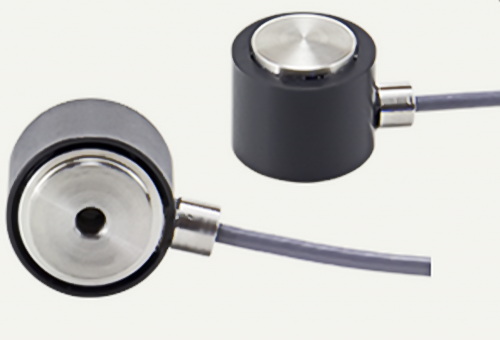

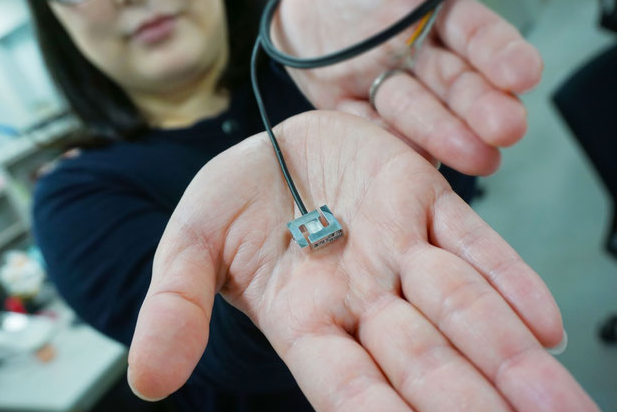

Ultra-small load cells, also referred to as miniature load cells or subminiature load cells, are characterized by their exceptionally small size and lightweight design. These load cells are engineered to measure forces accurately in applications where traditional load cells would be impractical due to size or weight constraints[5].
- Compact Size: Ultra-small load cells typically have dimensions of a few millimeters in diameter and height[1].
- Low Capacity: They are designed for measuring small forces, often in the range of a few Newtons to several kiloNewtons[2].
- High Precision: Despite their small size, these load cells offer high accuracy and repeatability[8].
- Lightweight: Their low mass ensures minimal impact on the system being measured[2].
- Robust Construction: Constructed from materials like stainless steel to ensure durability and environmental resistance[1].
The design of ultra-small load cells involves careful consideration of materials, sensor technology, and manufacturing processes. Strain gauge load cells are commonly used due to their reliability and precision. The strain gauges are bonded to a small, deformable element made of stainless steel or aluminum. The deformation caused by the applied tension force is measured by the strain gauges, which convert it into an electrical signal proportional to the force[2].
- Space Efficiency: Their compact size allows integration into tight spaces[5].
- Minimal Weight: Low mass reduces the impact on the measured system[2].
- High Sensitivity: Capable of detecting small changes in force[8].
- Versatility: Suitable for various applications, including medical devices, robotics, and aerospace[8].
- Cost-Effectiveness: Often more affordable than larger load cells for specific applications[2].

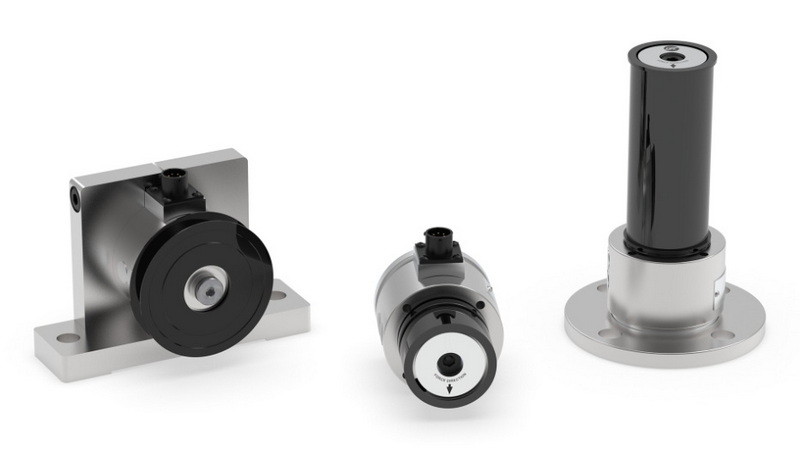

Tension measurement involves quantifying the pulling force applied to an object. Ultra-small load cells are particularly well-suited for tension measurement in applications where the force needs to be measured in a confined space or with minimal impact on the system[4].
- Medical Devices: Measuring tension in surgical instruments, catheter systems, and drug delivery devices[5].
- Robotics: Monitoring tension in robotic grippers and manipulators for precise control[5].
- Aerospace: Measuring tension in cables, wires, and structural components in aircraft and spacecraft[8].
- Textile Industry: Monitoring tension in fibers and yarns during manufacturing processes.
- Consumer Electronics: Measuring tension in small mechanical components in devices like smartphones and tablets[5].
- Laboratory Research: Conducting tensile testing on small samples and materials[10].
- Automotive: Measuring tension in small fasteners and connectors[8].
1. Robotic Grippers: In robotic applications, ultra-small load cells are integrated into the fingertips of robotic grippers. These load cells measure the tension applied by the gripper to an object, allowing the robot to adjust its grip force to prevent damage or slippage[5].
2. Medical Catheters: In medical devices like catheters, ultra-small load cells are used to measure the tension exerted by the catheter tip against the walls of blood vessels. This information helps guide the catheter and prevent injury to the patient[8].
3. Aerospace Cables: In aircraft, ultra-small load cells are installed in cable tensioning systems to ensure that cables are properly tensioned. This is critical for maintaining the structural integrity of the aircraft and preventing accidents[8].
4. Touch Sensing for Robotic Grippers: Miniature load cells can measure relative forces in small spaces, making them perfect for touch sensing in robotic grippers[5].
5. Medical Devices: Miniature load cells can measure the pressure applied by a syringe pump on a piston or the force exerted by a surgical cutting tool[5].
Integrating ultra-small load cells into a system requires careful consideration of the mechanical interface, electrical connections, and signal conditioning[8].
The mechanical interface must be designed to transmit the tension force to the load cell accurately. This typically involves using precision-machined components to ensure proper alignment and load distribution. The load cell should be mounted securely to prevent unwanted movement or vibration[4].
The electrical connections must be robust and shielded to minimize noise and interference. Strain gauge load cells typically require a Wheatstone bridge circuit for excitation and signal conditioning. The output signal from the load cell is usually a small voltage, which needs to be amplified and filtered to improve the signal-to-noise ratio[5].
Signal conditioning involves amplifying, filtering, and digitizing the analog signal from the load cell. This can be done using dedicated signal conditioning modules or integrated data acquisition systems. The conditioned signal can then be processed by a microcontroller or computer for further analysis and display[5].
Calibration is a critical step in ensuring the accuracy of ultra-small load cells. Calibration involves applying known tension forces to the load cell and measuring the corresponding output signal. The calibration data is then used to create a calibration curve, which relates the output signal to the applied force[1]. Regular calibration is necessary to compensate for drift and changes in environmental conditions[1].
The performance and reliability of ultra-small load cells depend on the materials used and the underlying sensor technology[1].
- Stainless Steel: Offers excellent corrosion resistance, high strength, and good machinability[1].
- Aluminum Alloys: Provides a lightweight alternative with good strength-to-weight ratio.
- Titanium Alloys: Offers superior strength and corrosion resistance but is more expensive[1].
- Polymeric Materials: Flexible load cells can be made of polymeric materials, but creep and hysteresis affect the device's accuracy[5].
- Strain Gauges: The most common technology, providing accurate and reliable force measurements[2].
- Piezoresistive Sensors: Offer high sensitivity and fast response times.
- Capacitive Sensors: Suitable for low-force measurements with high resolution.
- Digital Output: Some ultra-small load cells offer digital output signals, such as USB or RS485, which simplify integration with digital systems[5].
- Wireless Connectivity: Wireless load cells enable remote monitoring and data logging[5].
- Temperature Compensation: Built-in temperature compensation circuits minimize the effects of temperature variations on the load cell's output[1].
- Overload Protection: Protection mechanisms prevent damage to the load cell from excessive forces[1].
- Waterproof Connectors: Compact stainless-steel load cells with waterproof connectors are available for measuring tension or compression loads[4].
While ultra-small load cells offer numerous advantages, there are also some challenges and considerations to keep in mind[5].
Maintaining accuracy in ultra-small load cells can be challenging due to their small size and sensitivity to environmental factors. Regular calibration is essential to ensure accurate measurements[1].
Temperature variations can affect the output of load cells. Temperature compensation techniques should be employed to minimize these effects[1].
Ultra-small load cells are more susceptible to damage from overload forces. Overload protection mechanisms should be implemented to prevent damage[1].
Proper installation is critical to ensure accurate measurements and prevent damage to the load cell. The mechanical interface should be carefully designed and the load cell should be mounted securely[4].
The cost of ultra-small load cells can be higher than that of larger load cells, especially for high-precision models[2].
The field of ultra-small load cells is continuously evolving, with ongoing research and development focused on improving performance, reducing size, and expanding applications[5].
Further miniaturization of load cells will enable their use in even smaller devices and systems.
The integration of wireless technology will enable remote monitoring and control of load cells in various applications[5].
The development of new materials with improved mechanical and electrical properties will enhance the performance and reliability of load cells[1].
The integration of microprocessors and memory into load cells will enable advanced signal processing and data logging capabilities.
Expansion into new application areas, such as wearable devices, biomedical implants, and advanced robotics, will drive further innovation in load cell technology[8].
Ultra-small load cells for tension measurement represent a significant advancement in force measurement technology. Their compact size, high precision, and versatility make them indispensable in various applications, including medical devices, robotics, aerospace, and consumer electronics. As technology continues to evolve, ultra-small load cells will play an increasingly important role in enabling the development of smaller, lighter, and more efficient devices and systems. By understanding their design, applications, and limitations, engineers and researchers can leverage the capabilities of ultra-small load cells to solve complex measurement challenges and drive innovation across industries.
Answer: An ultra-small load cell is a compact sensor designed to measure force or weight in applications where space is limited. These load cells typically use strain gauges to measure the deformation caused by the applied force, converting it into an electrical signal proportional to the force[2].
Answer: Ultra-small load cells for tension measurement are used in a variety of applications, including medical devices (e.g., surgical instruments), robotics (e.g., robotic grippers), aerospace (e.g., cable tension monitoring), textile industry (e.g., fiber tension monitoring), and consumer electronics (e.g., component testing)[8].
Answer: Commonly used materials include stainless steel for its corrosion resistance and strength, aluminum alloys for their lightweight properties, and titanium alloys for superior strength and corrosion resistance[1].
Answer: The key advantages include their compact size for integration into tight spaces, minimal weight to reduce the impact on the measured system, high sensitivity for detecting small changes in force, versatility for use in various applications, and cost-effectiveness compared to larger load cells in specific scenarios[5].
Answer: Calibration involves applying known tension forces to the load cell and measuring the corresponding output signal. This data is used to create a calibration curve, which relates the output signal to the applied force. Regular calibration is necessary to compensate for drift and environmental changes[1].
