Tension sensors are essential devices in various industries, designed to measure the tension or pulling force exerted on materials such as wires, cables, and sheets. Their precise measurement capabilities ensure quality control, safety, and efficiency in manufacturing processes. This article delves into the intricacies of tension sensors, exploring their working principles, types, applications, and significance in modern technology.
At their core, tension sensors are instruments that gauge the force applied to an object by measuring the tension in a material or structure. They are commonly referred to as tension transducers or load cells. The ability to accurately measure tension is crucial for maintaining product quality and operational efficiency across various applications.
Tension sensors operate based on several principles, primarily utilizing strain gauges or load cells to detect changes in force.

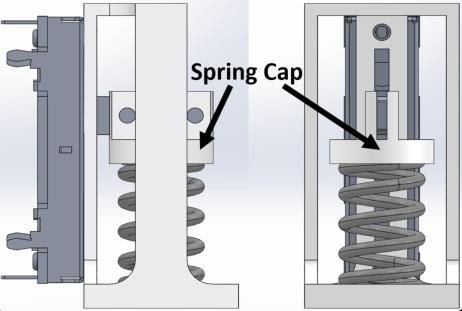

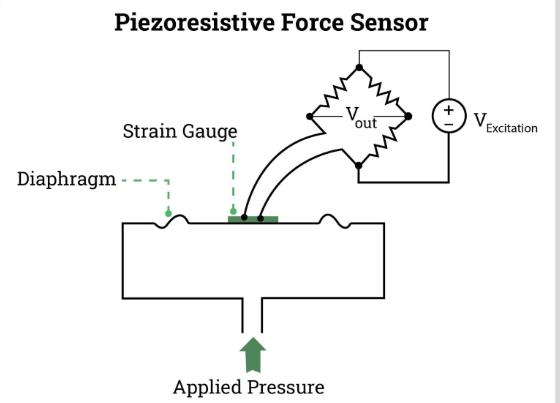

Strain gauges are small devices that change resistance when stretched or compressed. When a material under measurement applies tension, the metal element within the sensor deforms slightly, altering the resistance of the strain gauges. This change is then converted into an electrical signal that corresponds to the amount of tension applied.

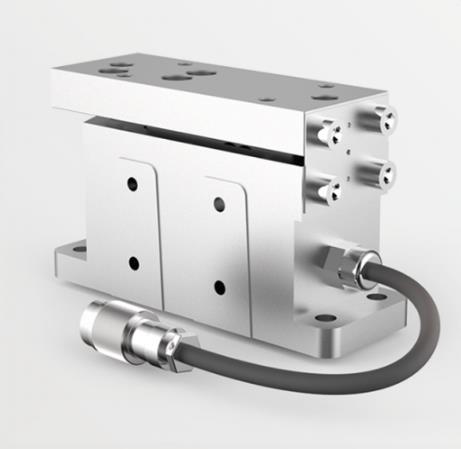

Load cells are another common type of tension sensor. They convert physical force into an electrical signal through various mechanisms such as:
- Mechanical deformation: The load cell bends under tension, creating a measurable output.
- Piezoelectric effect: Certain materials generate an electrical charge when mechanically stressed.
- Capacitive sensing: Changes in capacitance due to material deformation can also indicate tension levels.
Different types of tension sensors cater to specific industrial needs:
- Wire Tension Sensors: Optimized for monitoring and controlling wire tension.
- Load Cell Tension Sensors: Ideal for high-capacity force measurement in industrial environments.
- Compact Tension Sensors: Designed for applications with space constraints requiring high precision.
Each type has its unique features and benefits tailored to different operational requirements.
Tension sensors find extensive use across various industries due to their reliability and precision:
In textile production, maintaining proper tension in fibers and yarns during spinning, weaving, and knitting is crucial for ensuring quality products. Tension sensors help regulate this process by providing real-time feedback on material tension. For instance, in weaving machines, these sensors can adjust the speed of the loom based on the detected tension levels, preventing breakage and ensuring uniform fabric quality.
Tension sensors are vital in manufacturing processes such as:
- Papermaking: They control the tension in paper webs to prevent defects during production. By monitoring the tension throughout the papermaking process, manufacturers can ensure consistent thickness and prevent tearing.
- Printing: Ensuring accurate registration of colors by regulating paper or substrate tension is critical for high-quality prints. Tension sensors allow printers to adjust the feed rate dynamically based on real-time measurements.
- Film Processing: Maintaining uniform tension during film stretching and laminating is essential for producing high-quality films without defects.
In automotive applications, tension sensors monitor the tension in timing belts and drive belts, ensuring optimal performance and preventing wear and tear on components. They also play a role in assembly lines where precise force measurements are necessary for component fitting and alignment.
Tension sensors play a significant role in medical devices like surgical robots and prosthetics by providing feedback on the forces applied during procedures or movements. In robotic surgery, for instance, precise control of instrument movement is crucial for patient safety and surgical outcomes.
The incorporation of tension sensors into industrial processes offers numerous benefits:
- Improved Quality Control: By providing precise measurements, these sensors help maintain product integrity across various manufacturing processes.
- Enhanced Safety: Monitoring material handling reduces risks associated with excessive tension that could lead to equipment failure or accidents.
- Real-time Data Monitoring: Automated systems can adjust processes dynamically based on sensor feedback, leading to more efficient operations.
Modern tension sensors consist of several key components that work together to deliver accurate measurements:
The mechanical foundation includes load cells or force transducers that convert physical forces into electrical signals.
Advanced electronic systems handle signal processing, amplification, and communication with control systems, ensuring accurate data output.
Proper installation and calibration are crucial for achieving accurate readings from tension sensors:
1. Mounting: Ensure that the sensor is mounted securely according to manufacturer specifications to avoid misalignment.
2. Environmental Considerations: Install sensors away from extreme temperatures or vibrations that could affect performance.
3. Wiring: Follow proper wiring protocols to prevent interference from electromagnetic fields.
Calibration involves adjusting the sensor output to match known force values:
1. Use calibrated weights or known forces during testing.
2. Adjust the sensor output until it matches these known values accurately.
3. Regularly recalibrate sensors as part of maintenance schedules to ensure ongoing accuracy.
As technology continues to evolve, so do tension sensors:
The integration of Internet of Things (IoT) technology will enable real-time data collection and analysis from multiple sensors across production lines, leading to smarter manufacturing processes.
Future developments may include advanced materials that enhance sensor performance under extreme conditions while maintaining sensitivity and accuracy.
As industries demand more compact solutions without sacrificing performance, miniaturization will lead to smaller but highly effective tension sensors suitable for tight spaces.
Tension sensors are pivotal in various industries for their ability to provide accurate measurements of pulling forces on materials. Their diverse applications range from textiles to automotive systems, significantly enhancing operational efficiency and product quality. As technology advances, the role of tension sensors will continue to grow, driving innovations in automation and precision engineering.
Tension sensors are widely used in industries such as textiles, manufacturing (papermaking and printing), automotive, and medical applications.
Strain gauges work by changing resistance when deformed due to applied force; this change is converted into an electrical signal representing the level of tension.
Common types include wire tension sensors, load cell tension sensors, and compact tension sensors designed for specific industrial needs.
Real-time data monitoring allows automated systems to adjust processes dynamically based on current conditions, improving efficiency and safety.
Yes, tension sensors are used in robotics to provide feedback on forces applied during tasks such as gripping or lifting materials.
