In the world of electronics and DIY projects, load cells play a critical role in measuring weight or force. When it comes to Arduino projects, selecting the right load cell can significantly impact the accuracy and functionality of your application. This article will explore the best tension load cells suitable for Arduino projects, focusing on low profile load cells, their specifications, and how to integrate them into your projects.

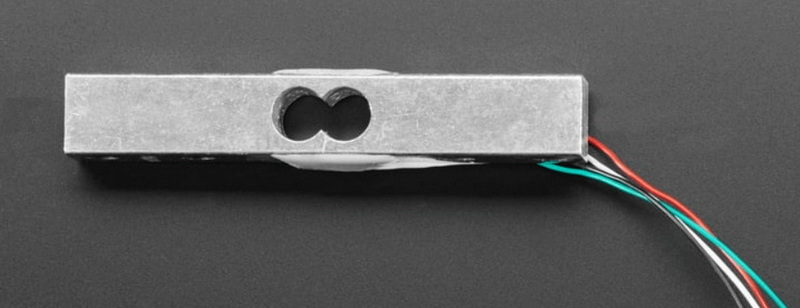

Load cells are transducers that convert mechanical force into an electrical signal. They are widely used in various applications, including industrial scales, weighing systems, and even in robotics. Load cells can be categorized based on their design and working principle:
- Strain Gauge Load Cells: These measure deformation through resistance changes.
- Hydraulic Load Cells: These use fluid pressure to determine weight.
- Pneumatic Load Cells: These measure weight based on air pressure.
For Arduino projects, strain gauge load cells are the most common due to their accuracy and ease of integration.
When choosing a load cell for your Arduino project, consider the following types:
- Low Profile Load Cells: Ideal for applications with limited space.
- S-Beam Load Cells: Versatile and can measure both tension and compression.
- Pancake Load Cells: Suitable for measuring tensile or compressive forces.
Among these, low profile load cells are particularly popular due to their compact design and high accuracy.
Low profile load cells offer several advantages:
- Space Efficiency: Their compact size allows them to fit into tight spaces without compromising performance.
- High Accuracy: Many low profile load cells provide excellent precision with a nonlinearity of ±0.05%, making them suitable for sensitive applications.
- Versatility: They can be used in both tension and compression applications.
Here are some of the best low profile tension load cells that you can consider for your Arduino projects:
The HX711 is a widely used module designed specifically for interfacing with strain gauge load cells. It provides high-resolution measurements and is ideal for Arduino projects.
Specifications:
- Capacity: Up to 5 kg (or more depending on the load cell used)
- Output Signal Type: Digital
- Operating Voltage: 2.7V to 5V
The FUTEK LRF400 is a compact tension and compression load cell that excels in both accuracy and durability.
Specifications:
- Capacity: 0.25 grams to 100 lbs
- Nonlinearity: ±0.05%
- Operating Temperature Range: -60°F to 200°F
The RSB6 is another excellent option for those needing a low profile solution with high capacity.
Specifications:
- Capacity Options: 250 kg (550 lb) to 5000 kg (11,000 lb)
- Through Hole Design: Allows for easy integration into various setups
- Accuracy: ±0.1% of full scale output

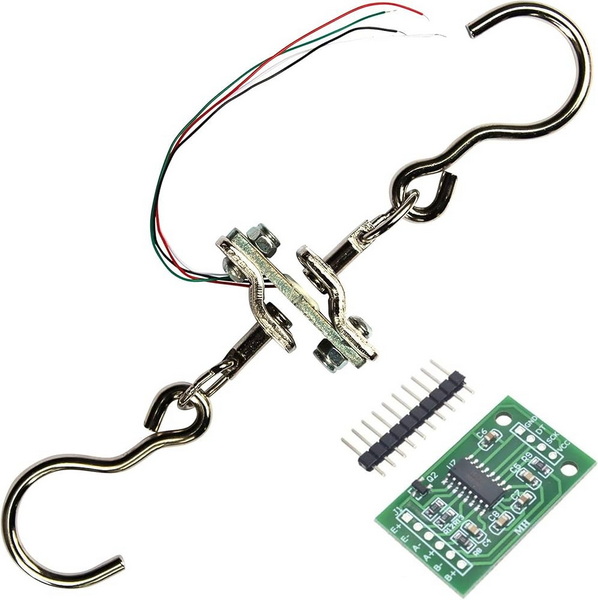

Integrating a load cell with an Arduino involves several key steps:
1. Gather Required Components:
- Load Cell
- HX711 Amplifier
- Arduino Board (e.g., Uno, Nano)
- Jumper Wires
- Breadboard (optional)
2. Wiring the Components:

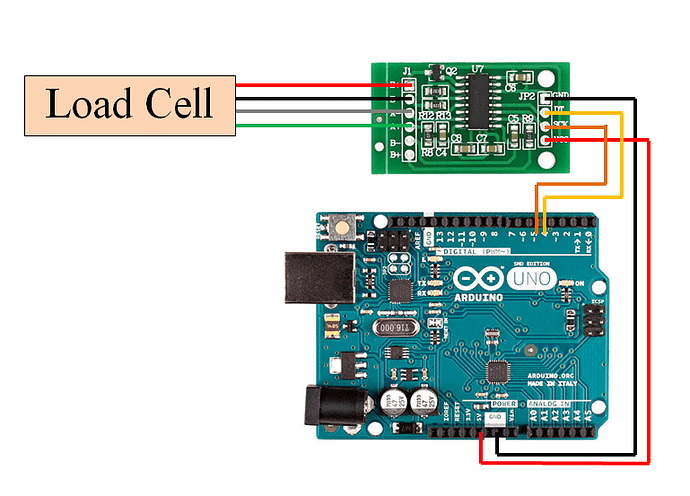

Connect the load cell to the HX711 amplifier according to the wiring diagram provided by the manufacturer.
3. Installing Libraries:
Download and install the HX711 library from GitHub or the Arduino Library Manager.
4. Programming the Arduino:
Write a simple program to read data from the load cell using the HX711 library. Below is a sample code snippet:
#include "HX711.h"
HX711 scale;
void setup() {
Serial.begin(9600);
scale.begin(A1, A0); // Connect DT to A1 and SCK to A0
}
void loop() {
Serial.println(scale.get_units(10), 1); // Print average of 10 readings
delay(1000);
}
5. Calibration:
To ensure accurate readings, calibrate your load cell by placing known weights on it and adjusting the calibration factor in your code until it matches the actual weight.
Tension load cells can be used in various applications, including:
- Digital Scales: Create precise weighing scales for kitchen or laboratory use.
- Force Measurement Systems: Measure tensile forces in materials testing or structural engineering applications.
- Robotics: Use in robotic arms or automated systems where weight measurement is crucial.
Choosing the best tension load cell for your Arduino project depends on your specific requirements such as capacity, sensitivity, and space constraints. Low profile load cells like the HX711 amplifier, FUTEK LRF400, and RSB6 pancake load cell offer excellent options for various applications due to their compact design and high accuracy.
By understanding how to integrate these components into your projects effectively, you can create innovative solutions that leverage precise weight measurements.
A low profile load cell is a compact device designed to measure weight or force while occupying minimal vertical space. They are ideal for applications where height restrictions exist.
To calibrate a load cell, place known weights on it and adjust the calibration factor in your code until the readings match the actual weights accurately.
Yes, you can use multiple load cells with one Arduino by connecting them through multiplexers or using multiple HX711 modules.
The maximum weight depends on the specific model of the low profile load cell you choose; some can measure up to several tons while others may only handle smaller weights.
Yes, ensure that you do not exceed the maximum rated capacity of the load cell to avoid damage. Additionally, handle all electrical components carefully to prevent short circuits or damage.
